DELL YN6XJ asennussarja musta

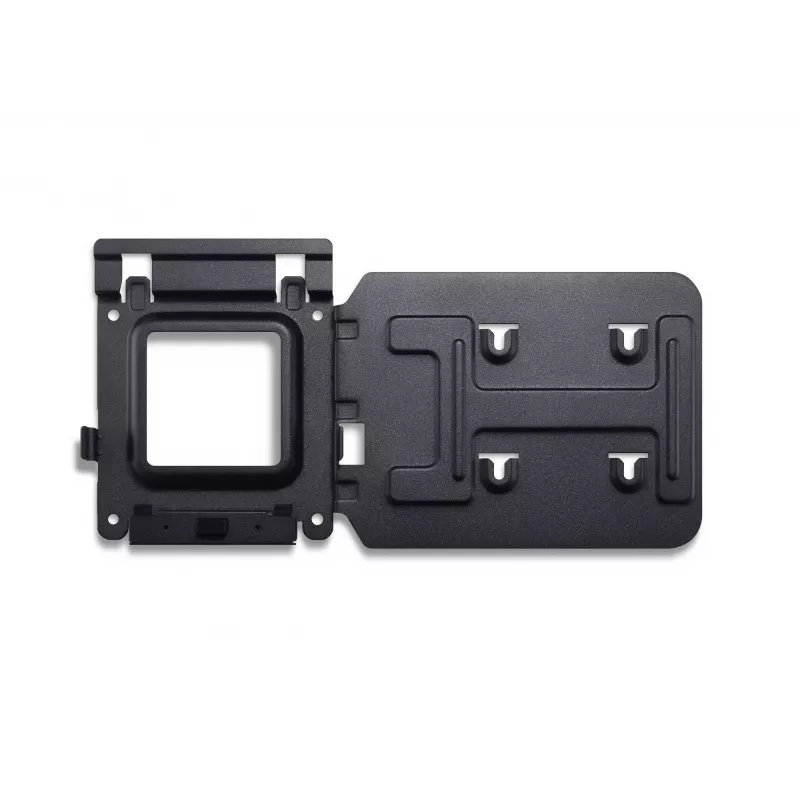

The Mounting Kit DELL YN6XJ Black enables secure attachment of a Dell Dock-WD15 or Dell Thunderbolt Dock-TB15 behind compatible Dell UltraSharp or P-Series monitors, or to other flat surfaces such as walls, desks, or tables. The kit includes all required hardware and is designed to create a neater, clutter-free workspace by keeping the dock out of the way while remaining easily accessible.

Advantages

This mounting kit supports VESA 100 mm mounting holes and provides a stable, reliable bracket that attaches under the monitor stand connector. Installation hardware for wall, under-desk or tabletop mounting is included, and the dock mounts securely with two screws to allow a simple slide-on/slide-off operation for quick removal when needed. The black finish integrates discreetly with most Dell monitors and workstations.

Suitable for

• Mounting Dell Dock-WD15 behind Dell UltraSharp monitors
• Mounting Dell Thunderbolt Dock-TB15 behind Dell P-Series monitors
• Attaching a dock to a wall, under a desk, or onto a table

Key specifications

• Compatible models: Dell Dock-WD15, Dell Thunderbolt Dock-TB15
• VESA compatibility: 100 mm (uses four mounting screws under monitor stand connector)
• Colour: Black
• Manufacturer part number (MPN): YN6XJ
• EAN: 5715063801017

How to use

Remove the monitor stand from the monitor, attach the bracket to the VESA 100 mm mounting holes under the stand connector using the four included screws, then reattach the stand to the bracket. Secure two mounting screws into the bottom of the dock, then slide the dock onto the bracket until it locks into place. For wall, under-desk or tabletop mounting, use the provided hardware to fix the bracket to the chosen flat surface and then attach the dock in the same slide-on manner. The dock can be unscrewed and slid off the bracket for servicing or repositioning.

Recommendations

Ensure the monitor and mounting surface can support the combined weight of the monitor and dock. Remove the monitor stand carefully according to the monitor manufacturer’s instructions before attaching the bracket. Use the included screws and hardware; replace any missing parts with equivalent specification fasteners to maintain safety and stability.
