DeLOCK 62551 sisäinen liitäntäkortti

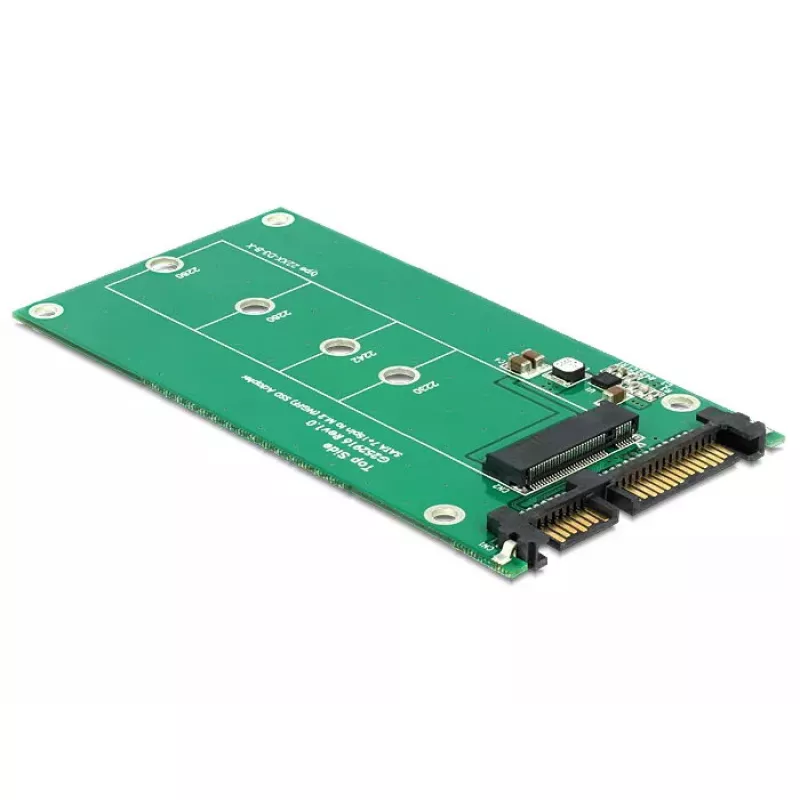

This DeLOCK 62551 internal interface card allows installation of an M.2 NGFF SSD in sizes 2280, 2260, 2242 and 2230. The card is fitted internally via a SATA 22‑pin connector and provides an additional SATA interface for connecting an M.2 SSD to a desktop system.

Advantages

The compact DeLOCK 62551 occupies minimal space (100 mm x 51 mm x 5 mm) and integrates with standard computer cases. It supports four common M.2 2280/2260/2242/2230 form factors and uses a standard SATA host interface for broad compatibility. Being an internal card, it keeps cabling tidy and enables efficient data transfer between the M.2 SSD and the system.

Suitable for

• Adding an M.2 NGFF SSD to a desktop PC
• Upgrading storage in systems with available internal SATA connection
• Systems requiring compact internal SATA adapters

Key specifications

• Brand: DELOCK
• Model / MPN: 62551
• Host interface: SATA (22‑pin)
• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Internal: Yes
• Dimensions: 100 mm (W) x 51 mm (D) x 5 mm (H)

How to use

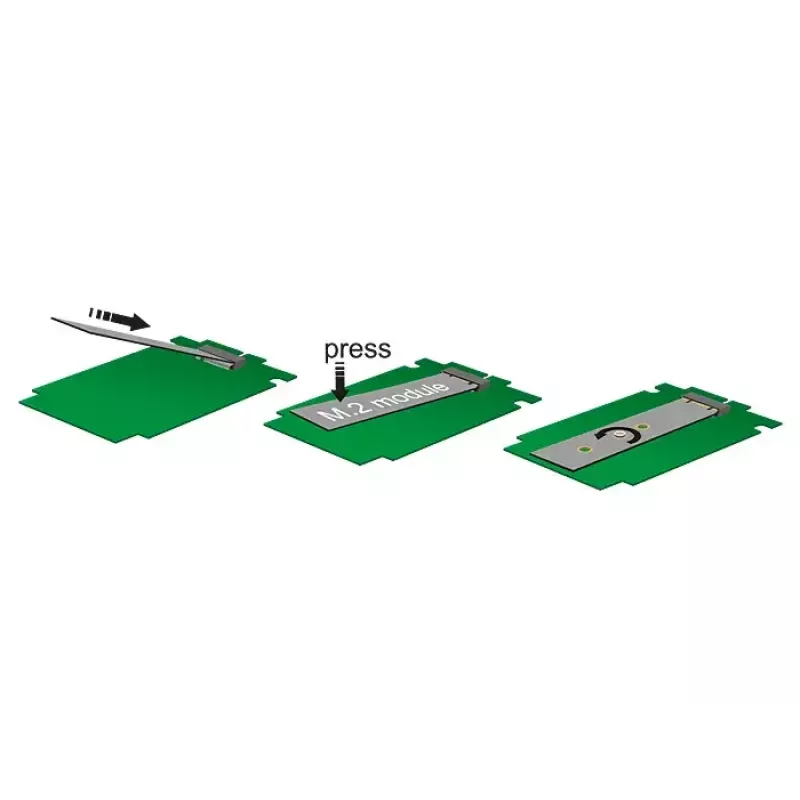

Install the DeLOCK 62551 inside the computer chassis and connect it to an available SATA 22‑pin internal connector on the motherboard or SATA controller. Secure an M.2 NGFF SSD (2280/2260/2242/2230) into the adapter following the card's mounting points, then power on the system and verify the drive is detected in BIOS/UEFI or the operating system.

Recommendations

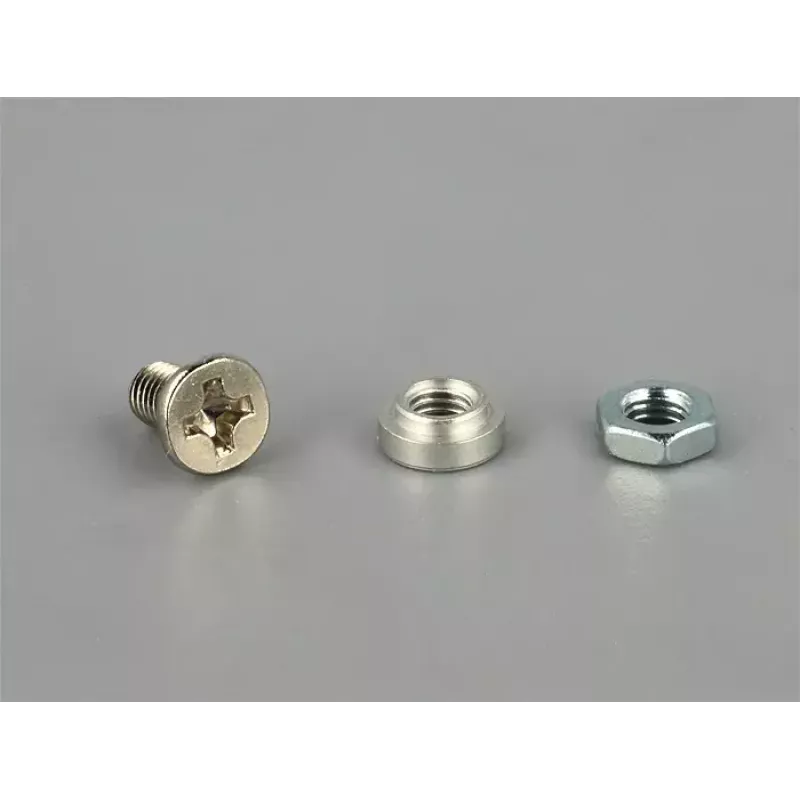

Ensure the system is powered off and unplugged before installation. Verify motherboard SATA availability and compatibility with SATA‑based M.2 adapters. Use appropriate mounting screws for the chosen M.2 size to prevent movement and ensure reliable connection.
