Liitäntäkortti DeLOCK 89108

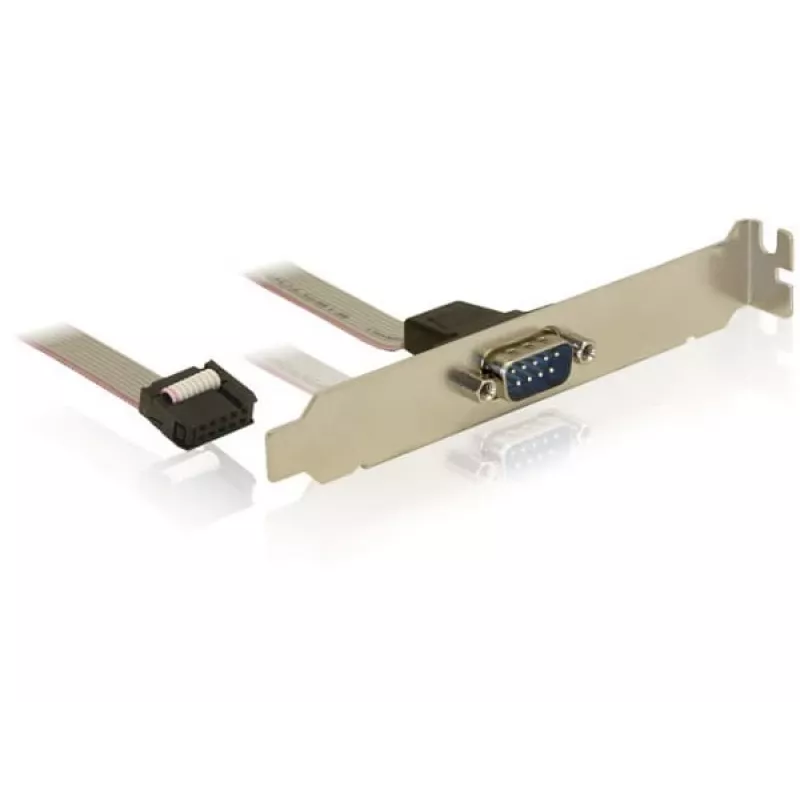

This Delock slot bracket installs into a free PC expansion slot and provides access to one internal COM port, allowing connection of an external serial device. It is designed to route an existing motherboard or adapter serial interface to the exterior of the computer chassis for convenient device attachment.

Advantages

The bracket enables external access to an internal COM port without modifying the motherboard. It is a straightforward solution for connecting serial devices such as industrial equipment, legacy peripherals, or serial consoles. Installation is simple and requires only a free expansion slot.

Key specifications

• Function: externalizes one internal COM (serial) port
• Compatibility: fits a standard free PCI/expansion slot on PC chassis
• Connector: bracket-mounted serial port (DB9 style)
• Use case: connect one external serial device

How to use

Turn off the PC and open the case. Insert the Delock slot bracket into a free expansion slot and secure it with the slot screw. Connect the internal COM cable from the bracket to the corresponding header or adapter on the motherboard or serial adapter. Close the case, power on the PC and configure the serial port in the operating system as needed.

Recommendations

Verify the motherboard or adapter pinout and COM header type before installation to ensure correct connection. Use appropriate drivers and serial settings for the connected device.
