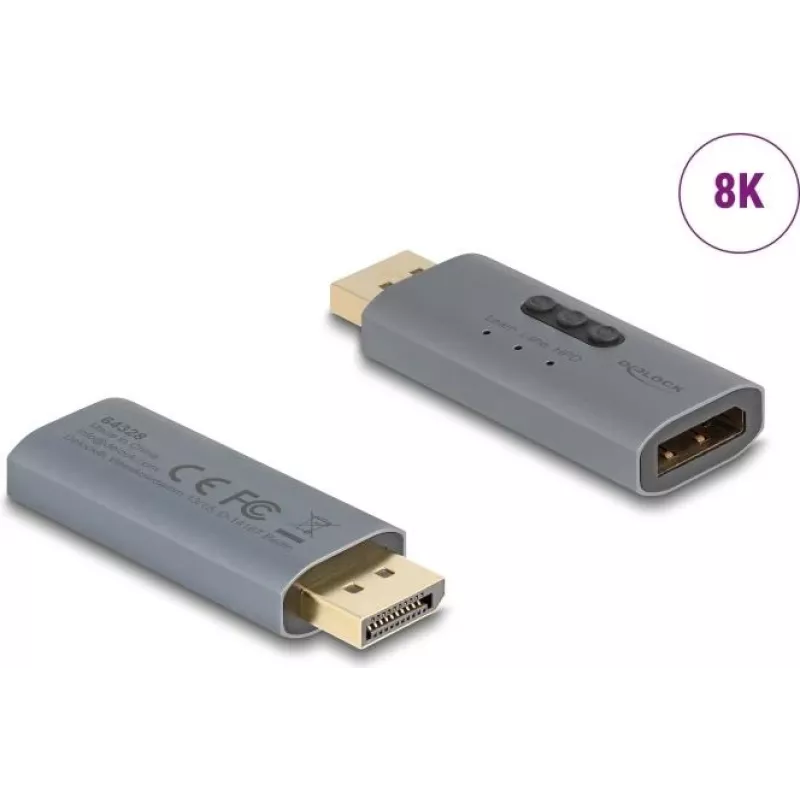

Delock DisplayPort EDID -emulaattori 8K, 64328

The Delock DisplayPort EDID Emulator 8K (MPN 64328) emulates a monitor so that the signal source does not switch off or change resolution even without a connected screen. It contains a standard set of EDID/DDC data and can also read and save the data of a connected monitor. With a maximum resolution of 7680 x 4320 pixels at 30 Hz, it supports high-quality video output.

Key features

• Emulates a monitor to prevent signal source from switching off or changing resolution
• Contains a standard set of EDID/DDC data
• Can read and save data from a connected monitor
• Number of DP lanes for data transmission (1, 2 or 4) can be selected depending on desired resolution
• HPD (Hot Plug Detect) button to switch connection to connected monitor on and off like hot plugging
• Integrated LED indicator for status information
• Robust metal housing
• Supports High Dynamic Range (HDR) and Double Duration Circuit (DDC)
• Complies with FCC, RoHS and HDCP standards

Specifications

• Brand: Delock
• MPN: 64328
• Product colour: Anthracite
• Connector 1: DisplayPort, male, straight
• Connector 2: DisplayPort, female, straight
• Housing material: Metal
• Maximum resolution: 7680 x 4320 pixels
• Maximum refresh rate: 30 Hz
• Width: 23.3 mm
• Depth: 62.8 mm
• Height: 10.8 mm
• Quantity per pack: 1 piece
