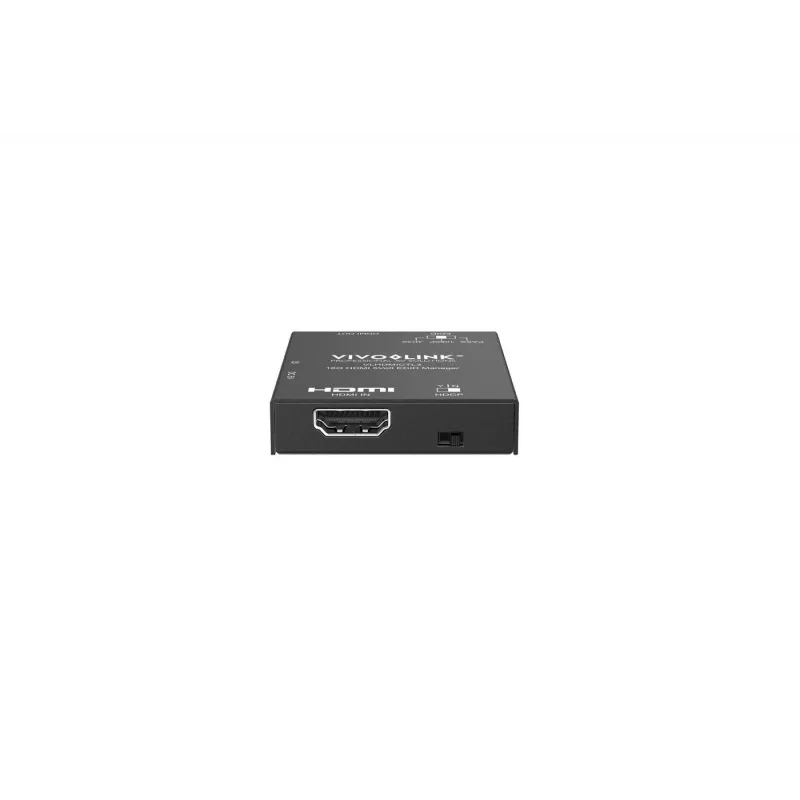

Vivolink 18G HDMI 5 voltin EDID-hallinta (VLHDMICTL3)

In professional AV installations, mismatched EDID information between sources and displays often leads to blank screens, resolution dropouts, or audio loss. The Vivolink 18G HDMI 5 Volt EDID Manager solves this by emulating and managing EDID data, ensuring stable signal handshakes and consistent output across any setup.

Who is it for

Integrators, event technicians, and AV professionals who need reliable HDMI signal management in conference rooms, digital signage, or control centers. It is ideal for troubleshooting problematic displays, extending signals, or maintaining a fixed EDID in complex matrix systems.

Main features

• Supports HDMI 2.0b with 18 Gbps bandwidth and 4K@60Hz (4:4:4) video pass-through.
• Comprehensive EDID management: pass-through mode, 16 pre-programmed EDID tables, and EDID emulation.
• HDCP 2.2 and 1.4 compliant, ensuring compatibility with protected content.
• HDR pass-through for HDR10, HLG, and Dolby Vision.
• Supports multi-channel audio formats including Dolby TrueHD and DTS-HD Master Audio.
• DIP switch control for quick EDID selection without software.
• Metal housing for durability and effective heat dissipation.
• Powered by included 5V DC adapter with low power consumption (<2W).

Specifications

• HDMI Standard: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 / 1.4
• Max Video Resolution: 4K@60Hz (4:4:4)
• Max Bandwidth: 18 Gbps
• Color Depth Support: 8-bit, 10-bit, 12-bit
• HDR Support: HDR10, HLG, Dolby Vision pass-through
• Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-HD Master Audio pass-through
• EDID Management Modes: Pass-through, 16 Pre-programmed EDIDs, EDID Emulation
• Input Connectors: 1x HDMI Type A Female
• Output Connectors: 1x HDMI Type A Female
• Power Supply: 5V DC (Power adapter included)
• Power Consumption: < 2W
• Control Method: DIP Switches
• Housing Material: Metal
• Operating Temperature: 0°C to 40°C
• ESD Protection: Human body model ±8kV (air-gap discharge), ±4kV (contact discharge)

Tips

Use the EDID emulation mode to lock the source to a specific resolution, preventing unwanted format changes when displays are swapped. For troubleshooting, start with the pass-through mode to identify the display's native EDID, then switch to a pre-programmed EDID that matches your system's capabilities.
