DeLOCK 65875 koaksiaalisovitin

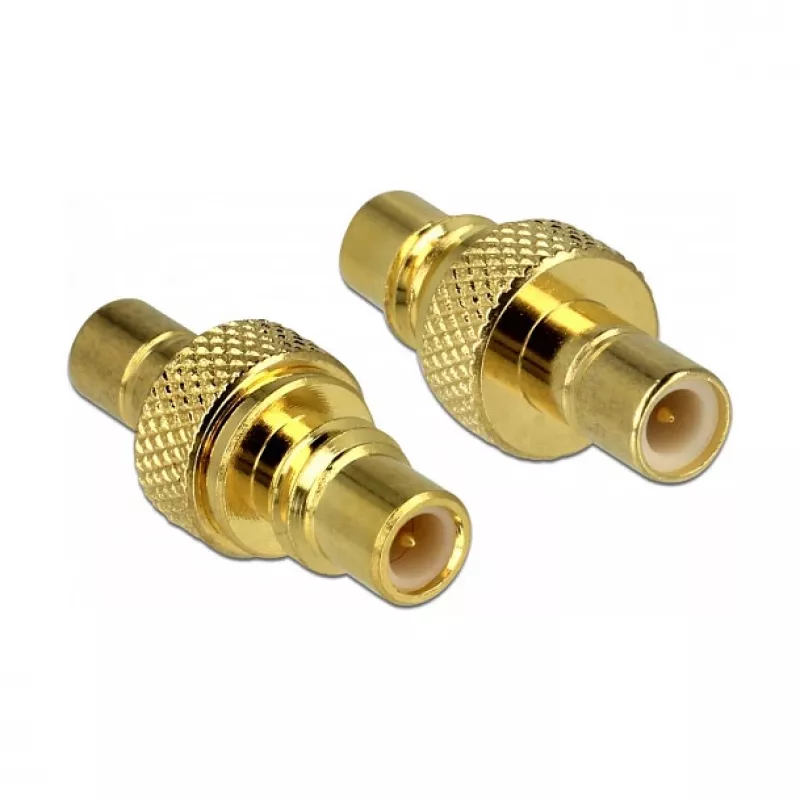

The DeLOCK 65875 coaxial connector is a compact adapter for radio frequency applications, combining a male SMC connector with an SMB connector. Designed for 50 Ω systems and finished in gold colour, this single-pack adapter has a depth of 19.5 mm and provides a reliable interface for signal transmission in space-constrained electronic setups.

Advantages

The adapter supports 50 Ω impedance matching, offers a compact depth of 19.5 mm for installation in tight spaces, and features gold-coloured contacts for corrosion resistance and stable electrical contact. The combination of SMC (male) and SMB connectors allows compatibility between common RF component types.

Suitable for

• Connecting SMC and SMB coaxial cables or components
• RF test setups and measurement equipment
• Space-limited electronic assemblies and prototypes

Key specifications

• Connector 1: SMC (male)
• Connector 2: SMB
• Impedance: 50 Ω
• Depth: 19.5 mm
• Colour: Gold
• Packaging: Single piece

How to use

Align the SMC (male) and SMB connectors with the mating component, press gently until the connectors engage and ensure a firm mechanical connection. Use the adapter in systems specified for 50 Ω impedance to maintain signal integrity. Avoid excessive force when coupling or uncoupling to prevent damage to the connectors.

Recommendations

Use this adapter only in 50 Ω RF systems and handle connectors carefully to preserve plating and mechanical integrity. Store in a dry environment and avoid exposure to corrosive substances or extreme temperatures.
