DeLOCK 86785 liitäntämoduuli musta

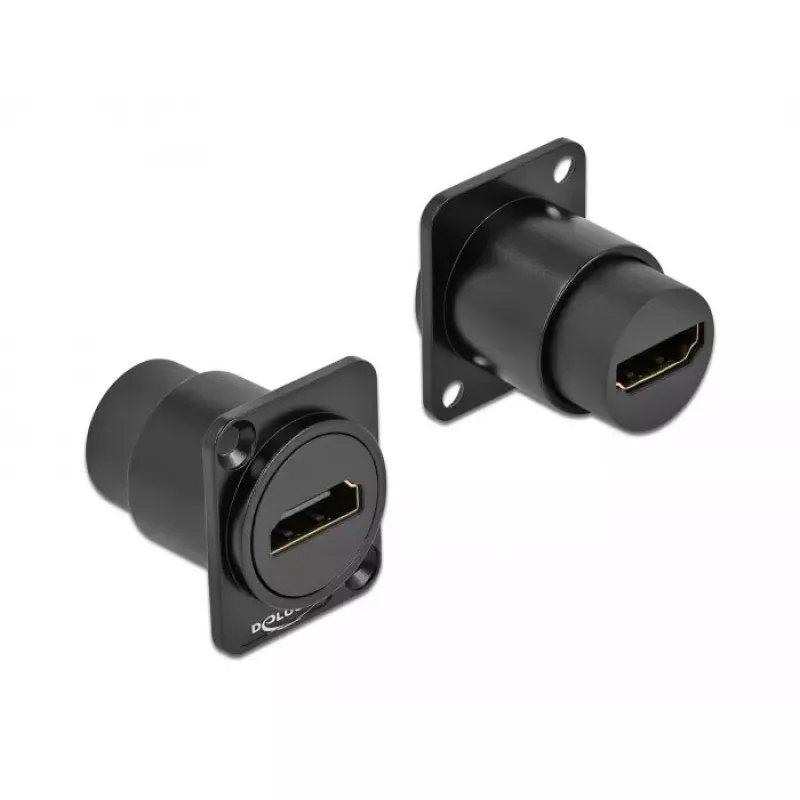

The DeLOCK 86785 socket outlet in black is a compact module designed for mounting in panels or enclosures with D-type openings for XLR jacks. With dimensions of 25.5 mm (width) × 30.2 mm (depth) × 30.8 mm (height) and supplied in a polybag, it provides a small-footprint solution for integrating connectors into equipment or racks while maintaining a discreet appearance.

Advantages

The unit’s compact size and standardized D-type form factor allow straightforward installation into panels or cases prepared for XLR-type openings. Its black finish offers a neutral, unobtrusive look and the packaged form makes handling and storage convenient. The module is suitable for reliable physical connectivity where a compact socket outlet is required.

Suitable for

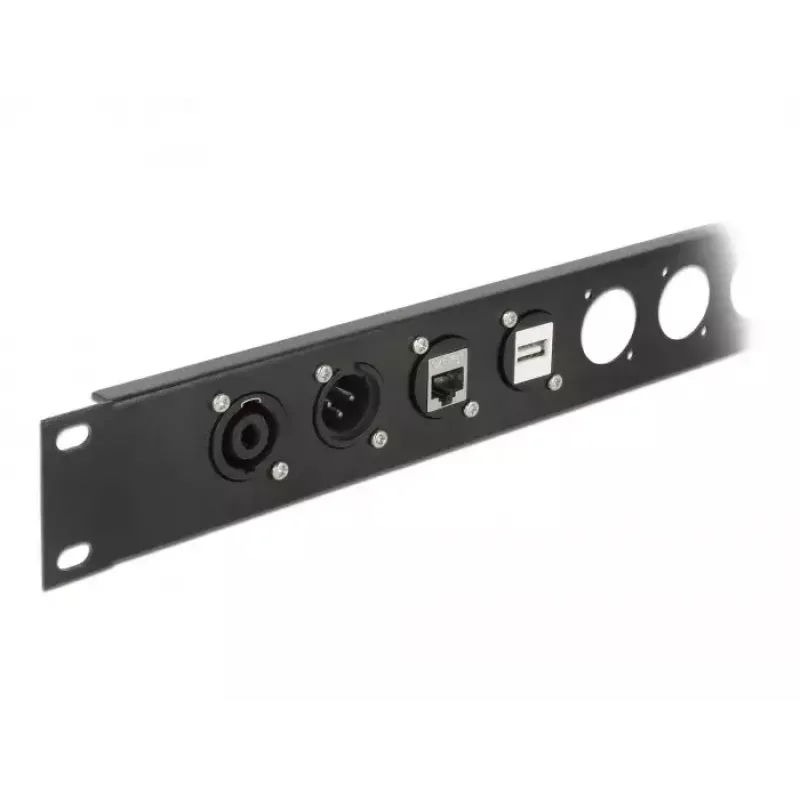

• Mounting in panels or enclosures with D-type/XLR openings
• Integration of digital or audio equipment into professional audio systems
• Applications requiring a compact, black socket outlet for signal connections

Key specifications

• Brand: DELOCK
• Model / MPN: 86785
• EAN: 4043619867851
• Colour: Black
• Dimensions (W × D × H): 25.5 × 30.2 × 30.8 mm
• Packaging: polybag

How to use

Prepare a panel or case with the appropriate D-type opening for an XLR-style connector. Insert the DeLOCK 86785 socket outlet into the opening and secure it according to the panel’s mounting method (e.g., screws, snap-fit or retaining hardware as applicable). Connect wiring to the socket following the connector’s pinout and any relevant electrical or audio system standards. Verify mechanical fit and electrical continuity before placing the equipment into regular service.

Recommendations

Use in panels or racks compatible with D-type/XLR cutouts and follow standard installation and grounding practices for audio or digital signal connectors. Avoid exposing the module to excessive mechanical stress or moisture; store in the supplied polybag until installation.
