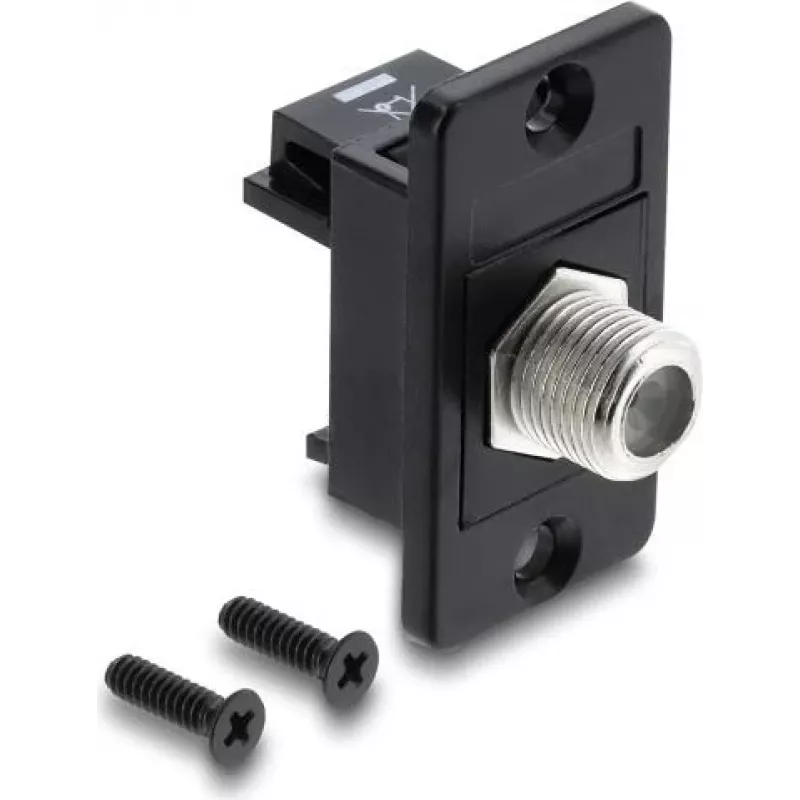

Delock asennusadapteri F-naaras - F-naaras musta 91188

For installations where a fixed RF feed-through is required, this Delock panel mount adapter provides a reliable F-type female connection on both sides of a panel or enclosure wall. Unlike simple inline couplers, it is built to be secured into a drilled hole, giving your TV, satellite, or antenna distribution setup a clean and professional finish.

Highlights

• Panel mount design with M10 x 0.75 thread for secure fixing
• F female to F female configuration for standard coaxial connections
• 75 Ohm impedance matches typical video and satellite signal requirements
• Durable PA66 housing and nickel-plated brass contacts
• Compact dimensions: 22 mm overall length, 15 mm flange diameter

In daily use

Drill a 10.2 mm hole in your panel, insert the adapter, and tighten the nut. The black housing blends into most equipment, while the nickel-plated contacts resist corrosion and maintain good conductivity. It is suitable for indoor use in temperatures from -10 °C to 50 °C.

Full specifications

• Connector 1: F female
• Connector 2: F female
• Mounting type: Panel mount
• Impedance: 75 Ohm
• Housing material: PA66 (polyamide 66)
• Contact material: Brass, nickel plated
• Thread type: M10 x 0.75
• Panel cutout diameter: 10.2 mm
• Flange diameter: 15 mm
• Overall length: 22 mm
• Thread length: 10 mm
• Application: TV, SAT, antenna systems
• RoHS compliant: Yes
• Operating temperature: -10 °C to 50 °C

Final note

This adapter is a straightforward solution for creating a fixed F-type connection point on any panel or enclosure. Its simple design and standard dimensions make it compatible with common coaxial cables and equipment.
