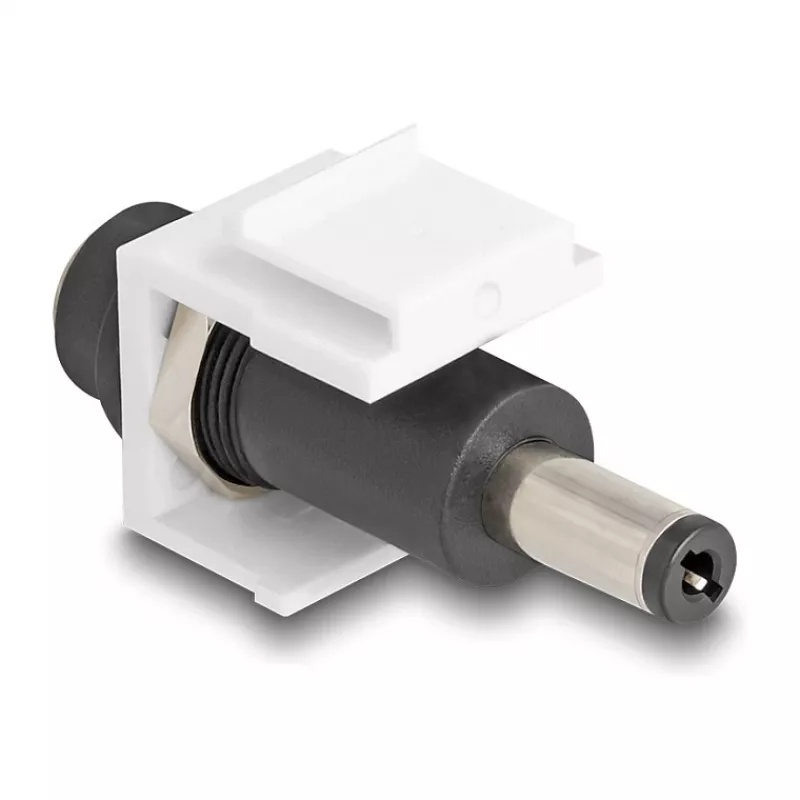

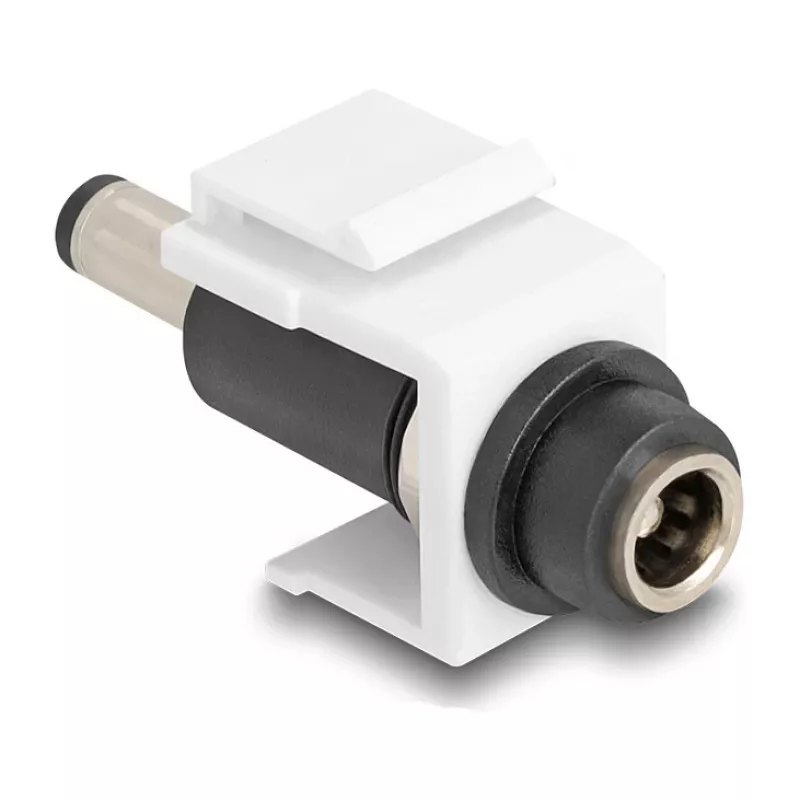

DeLOCK Keystone-moduuli DC 5,5 x 2,1 mm naaras uros valkoinen

This DeLOCK Keystone Module DC 5.5 x 2.1 mm female to male in white is a bulkhead connector designed for installation in housings, keystone patch panels, face plates or surface-mount boxes to provide power to devices. Its standardised dimensions and flat construction allow for easy snap-in mounting and tidy integration into various setups. Ensure the connected device matches the power supply specifications for voltage, current and polarity to guarantee correct function.

Advantages

The module provides a standard DC 5.5 x 2.1 mm female-to-male connection in a compact keystone format, enabling quick snap-in mounting into keystone-compatible panels and boxes. Its flat white design helps maintain a neat appearance in installations while the bulkhead configuration simplifies cabling and device power access.

Suitable for

• Mounting in keystone patch panels
• Installation in face plates
• Use in surface-mount boxes
• Providing DC power passthrough in electronic housings

Key specifications

• Connector 1: DC 5.5 x 2.1 mm (female)
• Connector 2: DC 5.5 x 2.1 mm (male)
• Colour: White
• Dimensions (W × D × H): 16.2 × 42.3 × 21.8 mm
• Packaging: Polybag
• Manufacturer: DELOCK, MPN 84174, EAN 4043619841745

How to use

Snap the keystone module into a compatible keystone opening in a patch panel, face plate or surface-mount box until it locks. Connect the external power plug to the male DC jack and route the internal wiring to the female bulkhead connector as required. Verify that the wiring orientation matches the device’s polarity and that voltage and current ratings are compatible before powering the device.

Recommendations

To ensure safe and reliable operation, always check that the connected power supply and the powered device share the same voltage, current capacity and polarity. Do not exceed the rated current of the wiring and secure connections to prevent accidental disconnection.
