Keystone-moduuli DeLOCK 86300

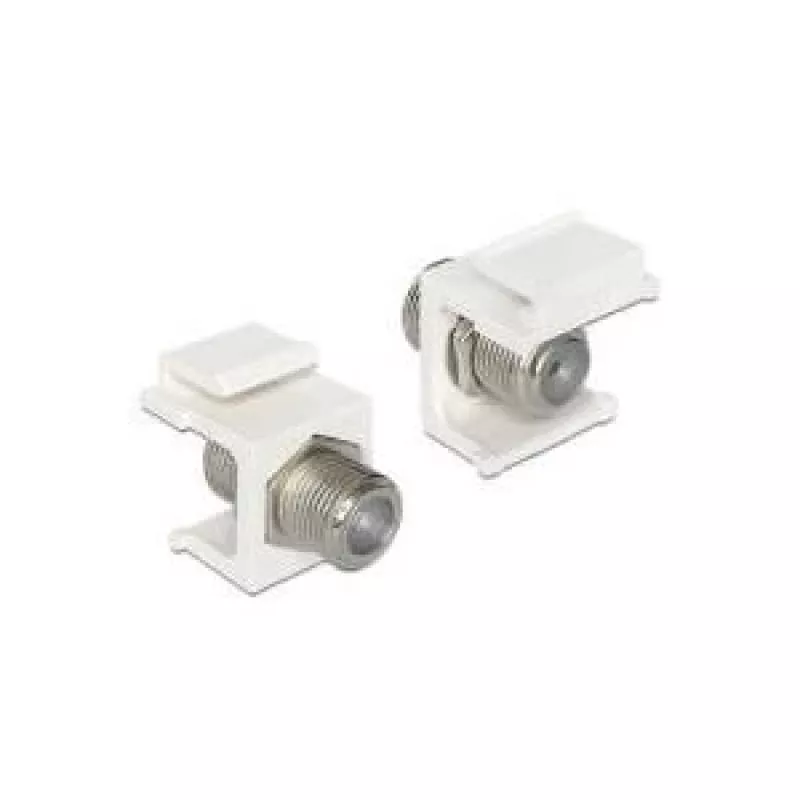

The DeLOCK 86300 Keystone module is a compact white module designed to connect antenna cables via an F connector while fitting into standard keystone openings. With dimensions of 16.3 mm (W) x 25.5 mm (D) x 22.3 mm (H), it offers a space-saving solution for tidy installations in keystone patch panels, face plates or surface-mount boxes.

Advantages

The keystone format ensures simple snap-in mounting and compatibility with common keystone panels and faceplates. The integrated F connector provides a standardised interface for antenna and coaxial cable connections. Its compact dimensions and neutral white colour allow discreet and clean installation in residential or commercial network layouts.

Suitable for

• Connecting antenna or coaxial cables to keystone patch panels
• Use in face plates and wall plates with keystone openings
• Surface-mount boxes that accept keystone modules
• Home and office AV or TV distribution installations

Key specifications

• Brand: DELOCK
• Model / MPN: 86300
• EAN: 4043619863006
• Connector 1: Keystone
• Connector 2: F connector
• Colour: White
• Dimensions (W x D x H): 16.3 mm x 25.5 mm x 22.3 mm
• Category: Cable interface and gender adapters

How to use

Insert the DeLOCK 86300 module into a compatible keystone opening until it snaps into place. Connect the coaxial or antenna cable to the F connector at the rear or front as required, and secure the mating connector. If installed in a patch panel or face plate, ensure the module is fully seated and the panel is mounted according to the panel or plate manufacturer’s instructions.

Recommendations

Verify compatibility of the keystone housing or face plate before installation and avoid forcing the module into non-standard openings. For best signal quality, use properly terminated coaxial cables and ensure tight, corrosion-free connections at the F connector.
