Keystone-moduuli DELOCK 86610 — litteä, ruostumaton teräs, RJ-45, 16,4×37,5×22 mm

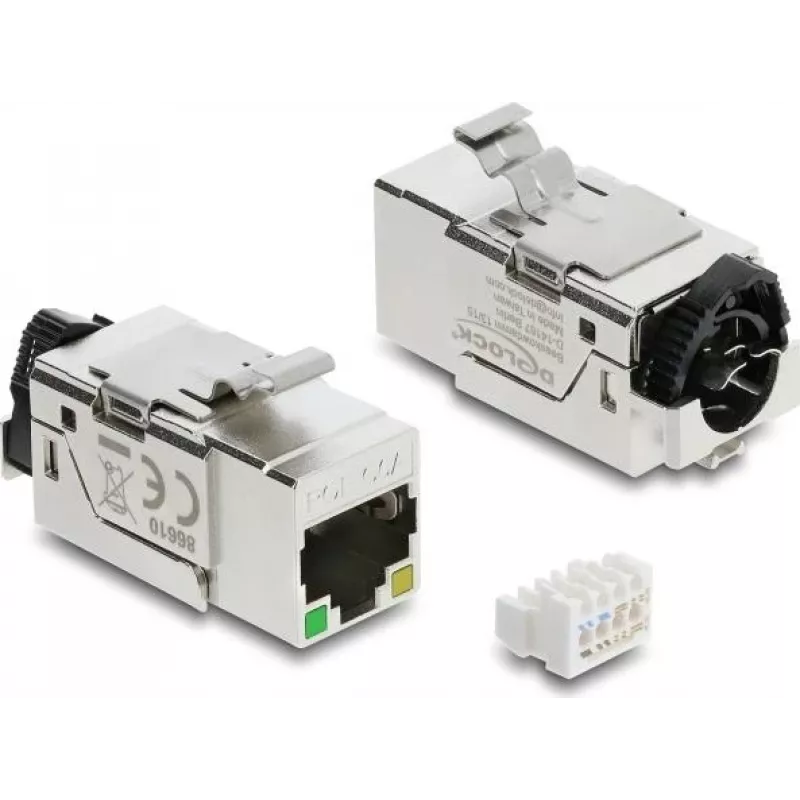

DELOCK 86610 is a flat stainless steel keystone module with an RJ-45 connector, sized 16.4 × 37.5 × 22 mm for installation into standard keystone wall plates, patch panels or surface-mount boxes. The module provides a single shielded Ethernet port compliant with Cat.6A requirements and accepts twisted pair cable terminated via a tool-free LSA connection. Integrated PoE detection LEDs show presence and type of Power-over-Ethernet supply, and a rear locking clip secures the network cable without using cable ties.

Advantages

The stainless steel housing offers robust shielding and a flat profile that suits compact installations. Compliance with Cat.6A standards and STP construction supports high-frequency Ethernet links and reduces electromagnetic interference. Tool-free LSA termination and a built-in cable locking clip speed up mounting and cable fixation. Integrated PoE indication simplifies identification of powered ports in professional network environments.

Suitable for

• Ethernet network terminations in offices and data closets
• Keystone patch panels and wall faceplates requiring a flat insert
• Installations needing shielded (STP) Cat.6A performance
• Situations where PoE presence and type must be visible
• Environments where tool-free LSA termination and cable tie-free fixation are preferred

Key specifications

• Connector type: 1 × RJ45 female (8P/8C)
• Termination: 1 × LSA tool-free
• Performance class: Cat.6A (shielded)
• Shielding: STP (metal housing for enhanced EMI protection)
• Standards compliance: ISO/IEC 11801 Edition 2.2, EN 50173-1, EN 60603-7-41, ANSI/TIA 568.2-D
• Pinout: TIA-568A/B
• Dimensions (W × D × H): 16.4 × 37.5 × 22 mm
• Mounting: snap-in keystone format for standard plates and patch panels
• PoE indication: integrated LEDs for presence and type detection
• Cable fixation: rear locking clip (no cable ties required)

How to use

Terminate the twisted pair cable onto the LSA contacts following the chosen TIA-568A or TIA-568B pinout. Ensure the cable shield is properly connected to the module housing to maintain overall shielding. Snap the module into a compatible keystone opening in a wall plate, patch panel or surface-mount box until it locks. Connect the network patch cable to the RJ-45 jack. Observe the integrated LEDs to verify PoE presence and type where applicable.

Recommendations

For optimal performance, use shielded twisted pair (STP) cables of Cat.6A grade and maintain correct shield continuity between cable and module. Verify pinout consistency across the installation to avoid connectivity issues. During installation, avoid excessive cable bending at the termination point and ensure the locking clip secures the cable jacket to prevent strain on the contacts.
