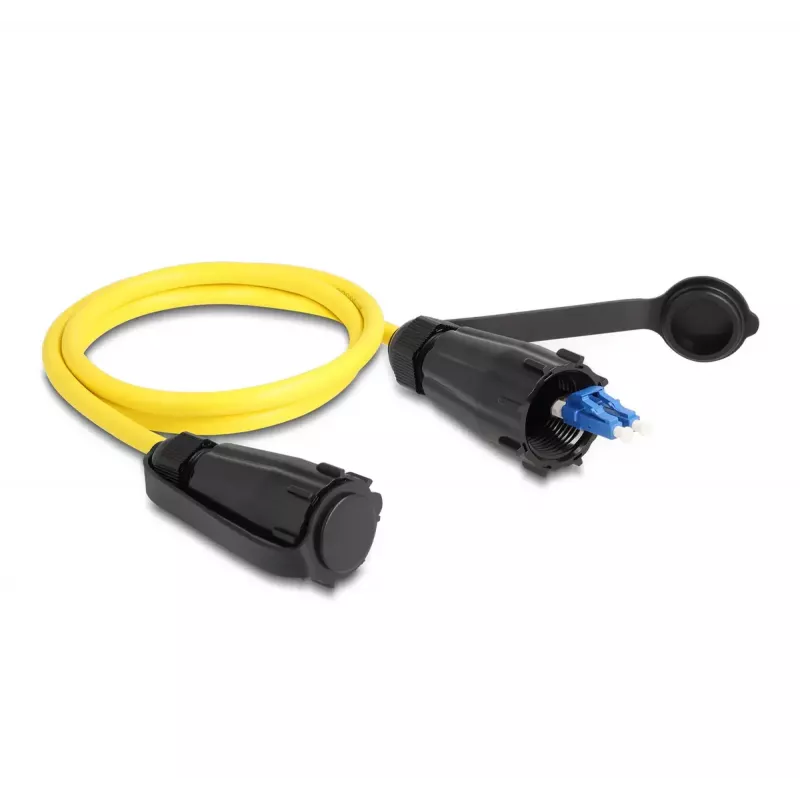

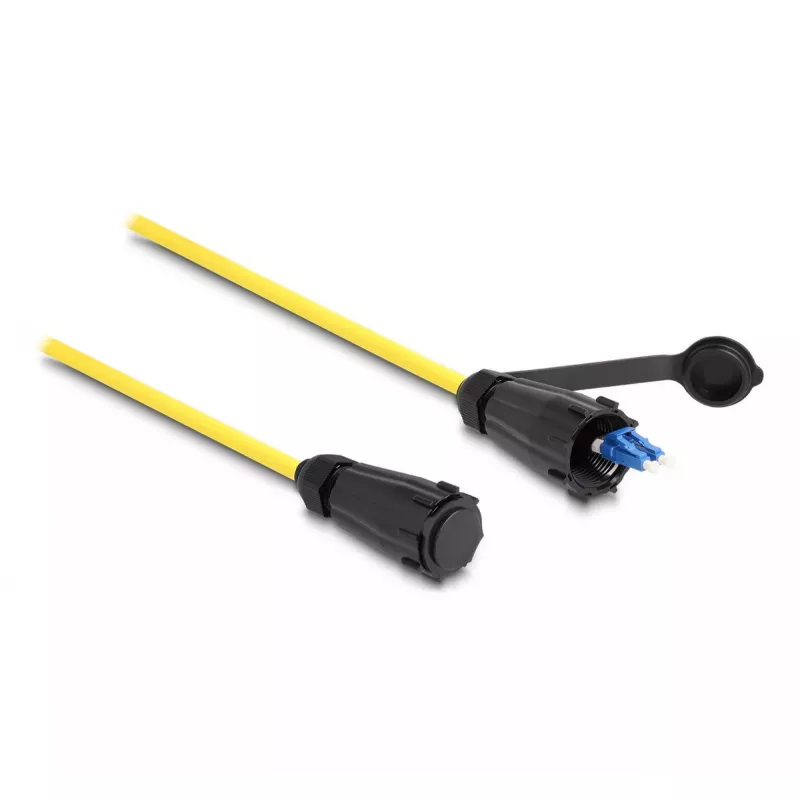

DeLOCK kuitu-kaapeli LC Duplex - LC Duplex 1 m Singlemode IP68

The DeLOCK Optical fiber cable LC Duplex to LC Duplex 1m single-mode IP68 is a 1 meter fiber patch cable for connecting networking devices such as switches and media converters. It uses a single-mode 9 µm core and supports full duplex data transmission. The cable and its screw-type connector are rated IP68 for dust and water protection, making the assembly suitable for outdoor installations when mounted in an enclosure with a matching cut-out.

Advantages

The LC Duplex to LC Duplex design provides reliable full duplex single-mode connections with low insertion loss. An IP68-rated screw connection ensures protection against dust and water, enabling use in outdoor or harsh environments. The 1 m length offers flexibility for short interconnects between networking equipment.

Suitable for

• Connecting switches to media converters
• Patch connections in outdoor enclosures
• Short single-mode links in network cabinets

Key specifications

• Connector: LC Duplex to LC Duplex
• Length: 1 m
• Fiber type: Single-mode, 9 µm core
• Protection rating: IP68 (screw-type waterproof connection)
• Brand: DELOCK, MPN: 87887, EAN: 4043619878871

How to use

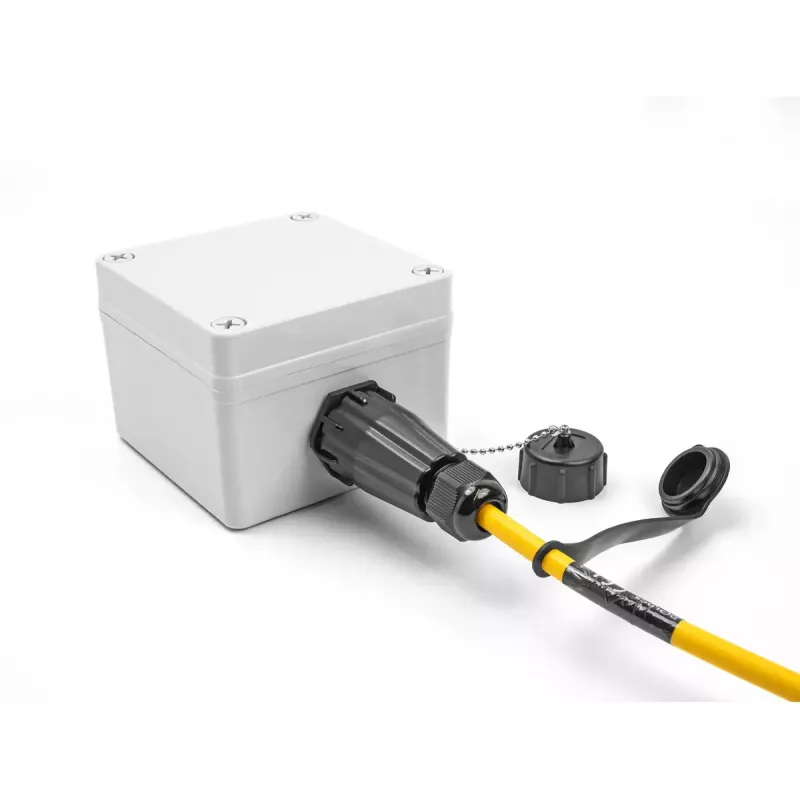

Insert the LC Duplex connectors into the corresponding LC ports on the networking devices, ensuring proper alignment of the duplex pair. If deploying outdoors, install the waterproof screw connection through a compatible cut-out in an enclosure and tighten to achieve the IP68 seal. Verify optical link and signal levels after connection.

Recommendations

For reliable outdoor performance, use the cable with an enclosure designed for fiber feed-throughs and avoid excessive bending of the single-mode fiber. Confirm connector cleanliness before installation to minimize insertion loss.
