DeLOCK M12-adapterikaapeli D-koodattu 4-napainen liitin RJ45-liittimeen 50 cm

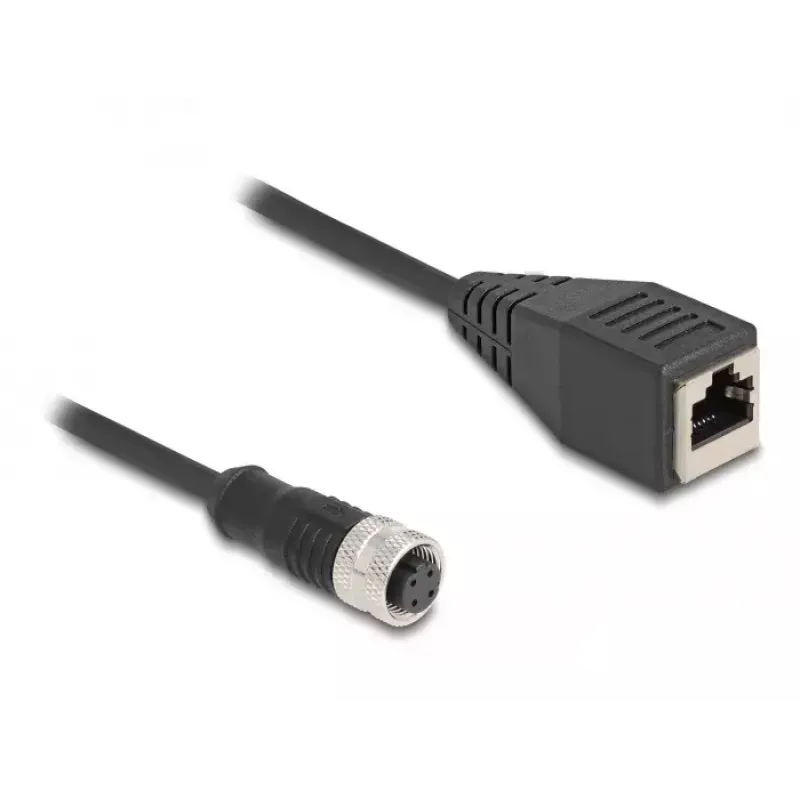

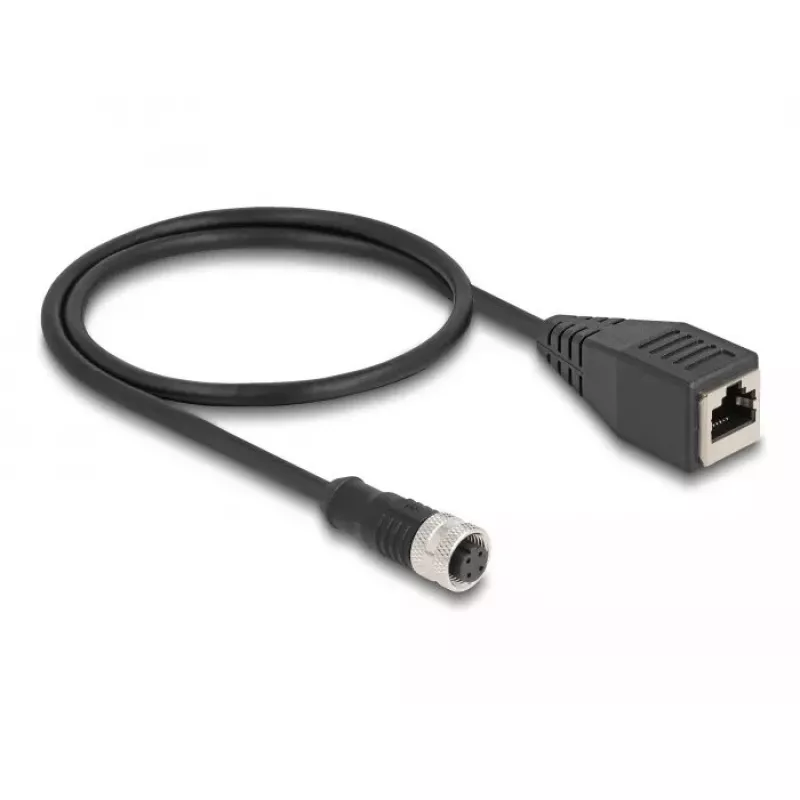

The DeLOCK M12 adapter cable with a D‑coded 4‑pin female M12 connector to an RJ45 female connector, length 50 cm, is designed for industrial Ethernet connections. It enables connection of devices with M12 interfaces to standard RJ45 Ethernet ports, supporting reliable data transmission in automation and machine control environments.

Advantages

The cable provides a D‑coded M12 interface that preserves signal integrity for Ethernet communication and a standard RJ45 female end for straightforward integration with network equipment. Its 50 cm length offers compact flexibility for tight installations while maintaining shielding and connector compatibility required in industrial settings.

Suitable for

• Connecting M12 D‑coded devices to RJ45 Ethernet switches or routers
• Machine control and industrial automation networks
• Fieldbus and sensor/actuator interface applications with M12 connectors

Key specifications

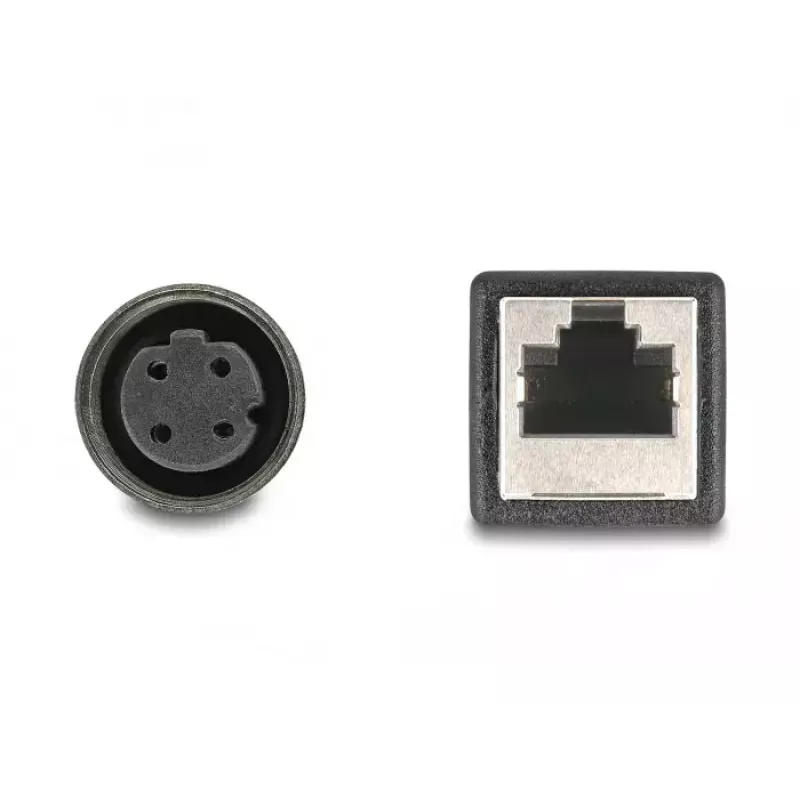

• Connector A: M12 female, D‑coded, 4 pins
• Connector B: RJ45 female
• Cable length: 50 cm
• Application: Industrial Ethernet data transmission

How to use

Plug the D‑coded 4‑pin M12 female connector into the M12 male port of the device and insert an Ethernet patch cable into the RJ45 female end to connect to network equipment. Ensure connectors are fully seated and, where applicable, secure threaded connections on the M12 side to maintain a reliable electrical and mechanical connection in industrial conditions.

Recommendations

Install the cable away from strong electromagnetic interference sources and avoid excessive bending or tensile stress. Verify compatibility with device pinouts and network parameters before use to ensure correct Ethernet operation.
