DeLOCK M12-liitin A-koodattu 4-napainen pistoke 90° kulma metalli

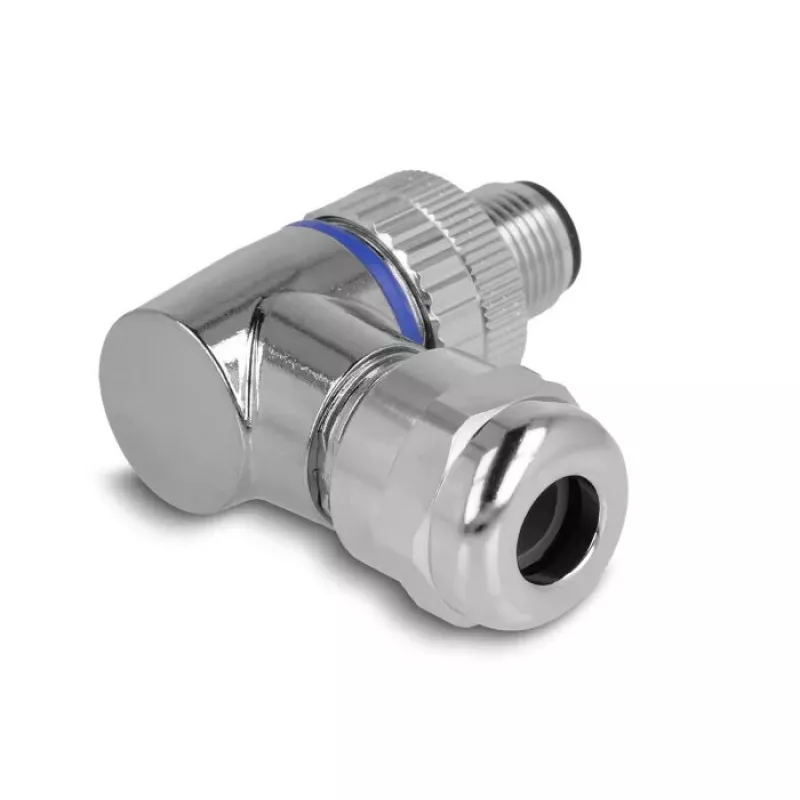

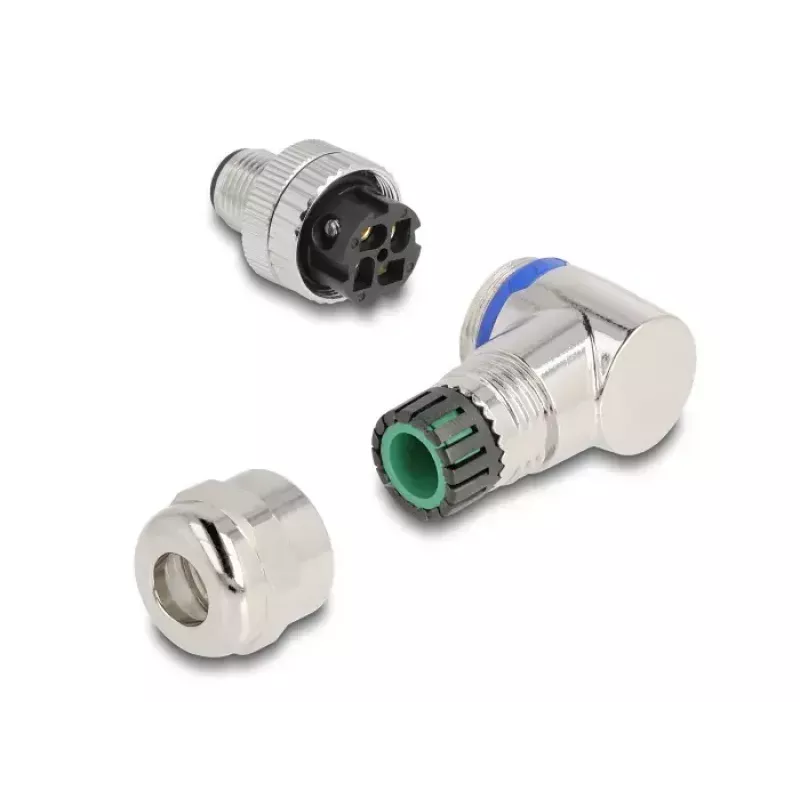

The DeLOCK M12 Connector A-coded 4 pin male 90° angled metal is a compact, robust connector for creating a secure screw-terminal connection between a cable and an M12 interface. It is intended for mounting and provides a right-angle orientation to save space in installations. The connector housing is metal and is available in black and silver finishes.

Advantages

The angled M12 design allows installation in confined spaces while maintaining reliable electrical contact. The screw terminal mounting simplifies cable attachment without the need for crimping tools. Metal construction increases mechanical durability and provides stable performance in industrial environments.

Suitable for

• Machine control and automation equipment
• Industrial sensors and actuators with A-coded M12 interfaces
• Applications requiring a right-angle M12 connection to save space

Key specifications

• Coding: A-coded
• Contacts: 4 pin, male
• Orientation: 90° angled

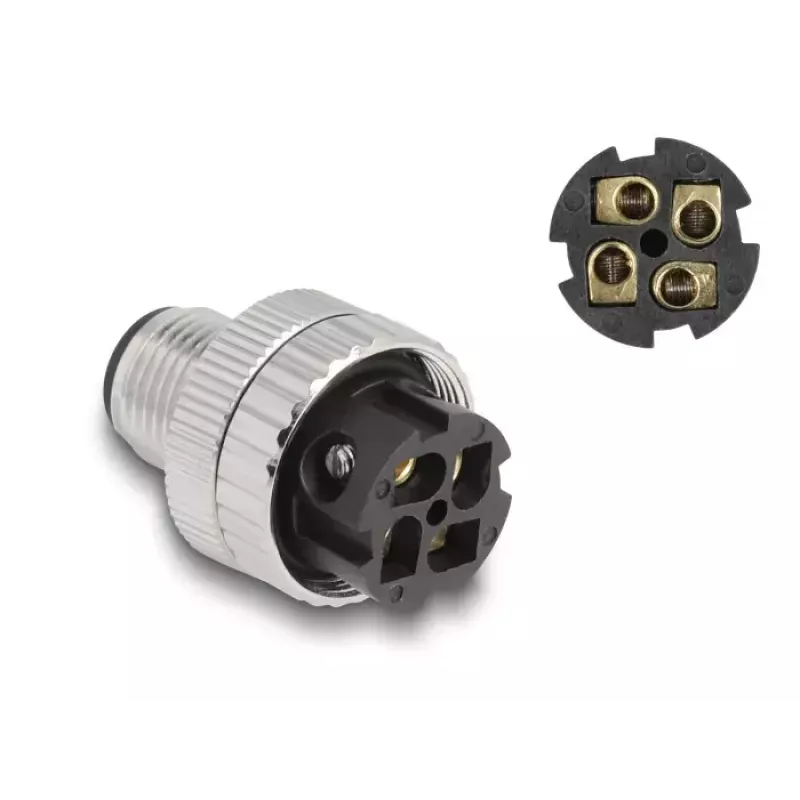

• Mounting: screw terminal connection
• Housing material: metal
• Dimensions (W×D×H): 44 mm × 41.3 mm × 20 mm
• Colour: black, silver
• Brand: DELOCK, MPN: 60540, EAN: 4043619605408

How to use

Prepare the cable by stripping the outer insulation to expose the conductors. Insert each conductor into the corresponding screw terminal and tighten the screws to secure the connection. Align the connector with the mating M12 receptacle at a 90° angle and engage the threads until fully seated. Verify that contacts are secure and that the housing is properly fastened before powering the system.

Recommendations

Use appropriate torque on the screw terminals to avoid damaging conductors; follow the installation guidelines of the connected equipment. Select the connector colour and mounting orientation to suit the available installation space.
