Synergy21 ulkokaapeliliitin IP68-kotelo 3 porttia läpinäkyvä

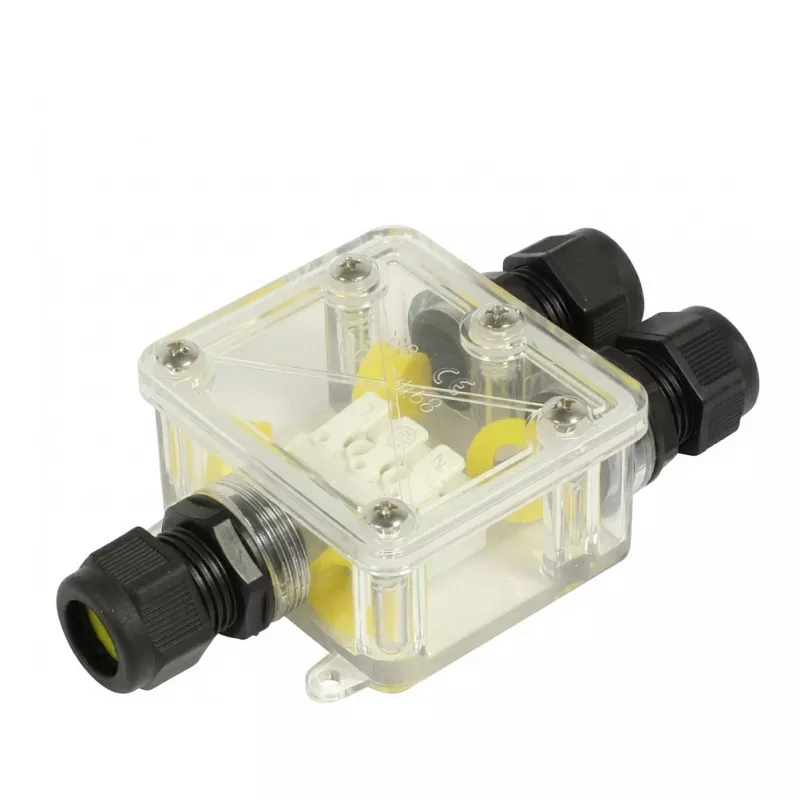

The Synergy21 Outdoor Cable Connector IP68 Box is a robust and reliable solution for creating waterproof connections in demanding outdoor environments. Designed for 3 ports, this transparent junction box allows easy visual inspection of connections while providing superior protection against dust and water ingress.

Advantages

IP68 rated for complete protection against dust and prolonged immersion in water. UV resistant and flame retardant polycarbonate housing ensures long-lasting performance in direct sunlight and harsh conditions. Silicone seals maintain integrity over a wide temperature range from -40°C to +100°C. Screw terminals accommodate wire cross-sections from 0.5 to 2.5 mm² and cable diameters from 4 to 8 mm, making it versatile for various cable types.

Suitable for

• Outdoor electrical installations
• Underground cable joints
• Garden lighting and water features
• Industrial and agricultural applications
• Marine and wet location connections

Key specifications

• Protection Class: IP68
• Number of Poles: 3
• Material: Polycarbonate (PC)
• Color: Transparent
• Max. Rated Voltage: 450 V AC
• Max. Rated Current: 24 A
• Cable Entry Diameter Range: 4 - 8 mm
• Max. Wire Cross-Section: 0.5 - 2.5 mm²
• Connector Type: Screw Terminal
• Operating Temperature Range: -40°C to +100°C
• UV Resistance: Yes
• Flame Retardant: Yes
• Application Environment: Outdoor, Underground, Wet Locations
• Seal Material: Silicone
• Certifications: CE, RoHS
• Mounting Type: Inline / Free-hanging

Recommendations

For optimal performance, ensure cables are properly stripped and securely tightened in the screw terminals. Use appropriate cable glands for additional strain relief if required. This connector is ideal for permanent outdoor installations where reliable waterproof connections are essential.
