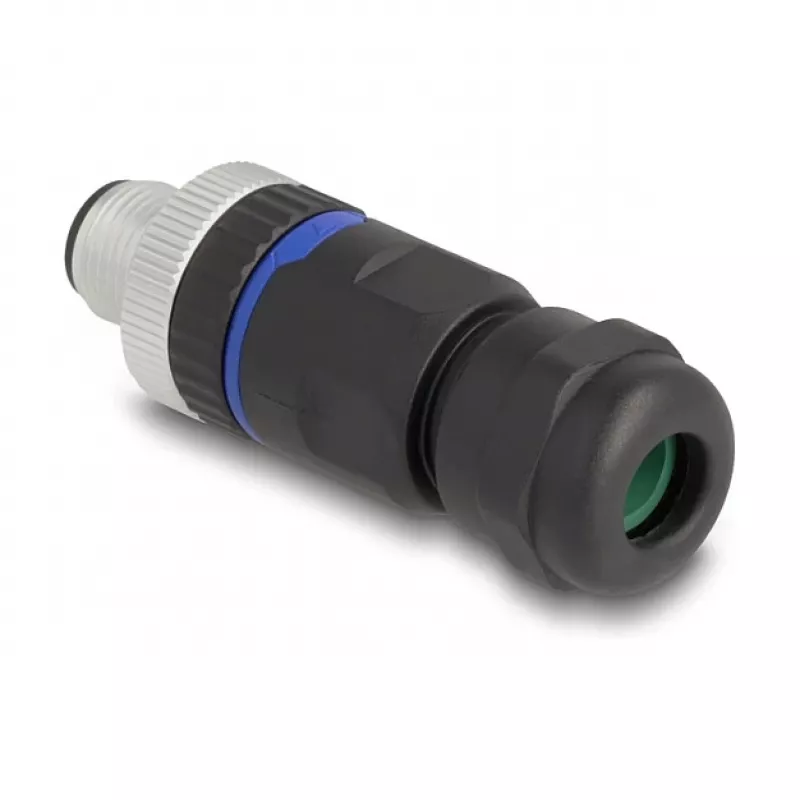

DeLOCK M12-liitin A-koodattu 4-napainen uros, ruuviliitäntä, 60533

The DeLOCK M12 Connector A-coded 4 pin male screw connection (60533) provides a reliable interface to connect a cable to an M12 A-coded device using screw terminals. The connector has a metal housing for increased durability and compact dimensions (56 mm × 20 mm), making it suitable for installations with limited space. It is intended for industrial and automation use where a stable electrical and mechanical connection is required.

Advantages

The metal construction offers mechanical robustness and improved shielding. Screw terminal contact enables secure, tool-assisted cable attachment without soldering. The compact form factor simplifies integration into control cabinets and machinery with limited clearance. Available in black and silver finishes to match equipment aesthetics.

Suitable for

• Machine control wiring
• Industrial automation connections
• Sensor and actuator interfaces with M12 A-coded ports
• Compact installations where space is limited

Key specifications

• Connector type: M12 A-coded, 4 pin, male
• Connection: screw terminal
• Housing material: metal
• Dimensions: 56 mm (width) × 20 mm (depth)
• Product colour: black, silver
• Brand: DELOCK
• MPN: 60533
• EAN: 4043619605330

How to use

Prepare the cable by stripping the insulation to the length required for the screw terminals. Insert each conductor into the corresponding screw terminal and tighten securely using an appropriate screwdriver, ensuring good electrical contact without over-torquing. Align the assembled screw terminal block with the M12 male housing and secure the housing according to the product's mechanical fastening method. Verify connections before applying power.

Recommendations

Use appropriate wire cross-sections and follow local installation standards. For environments with strong vibration or exposure to liquids, confirm suitability of the metal housing and consider additional strain relief or sealing measures.
