DELTA UY2-4CI/100 lävistysliitin (IDC) 2-johdin 100 kpl:n pakkaus keltainen

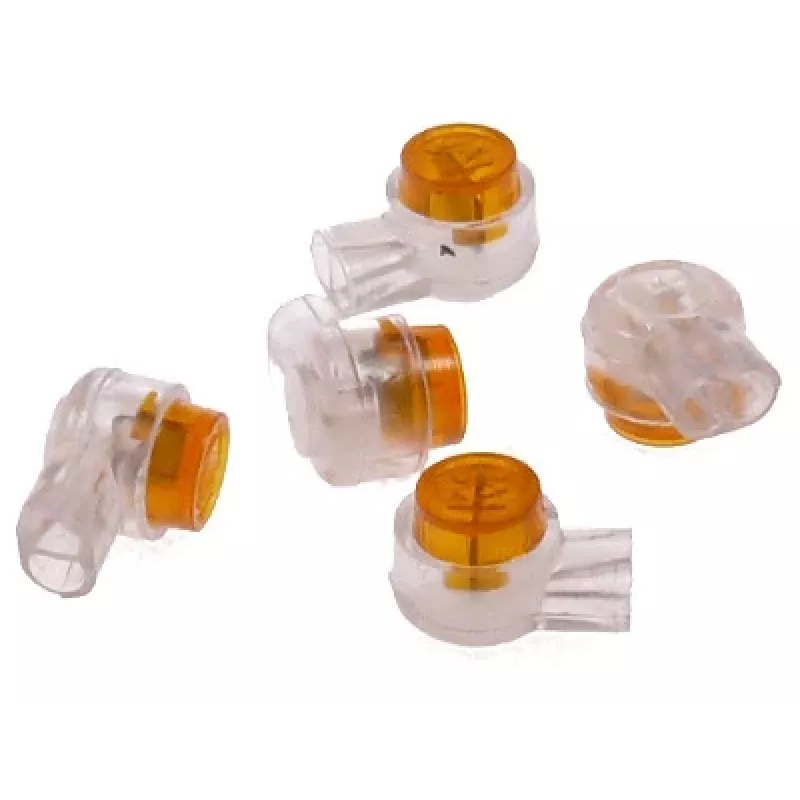

The DELTA UY2-4CI/100 is a high-quality insulation displacement connector (IDC) designed for reliable and quick splicing of two conductors without stripping. This gel-filled connector provides moisture protection, making it ideal for telecommunications, low-voltage signal wiring, and irrigation systems. Pack of 100 pieces in yellow.

Advantages

No stripping required – crimp installation saves time. Gel-filled design ensures moisture and corrosion resistance. Compatible with 19-26 AWG (0.4-0.9 mm) wires. Rated for 30 V AC/DC with dielectric strength of 1000 V RMS. Operating temperature range -40°C to +60°C.

Suitable for

• Telecommunications and data networks
• Low-voltage signal wiring
• Irrigation system control wiring
• General electrical splicing applications

Key specifications

• Connector Type: Insulation Displacement Connector (IDC)
• Number of Conductors: 2
• Wire Gauge: 19-26 AWG (0.4-0.9 mm)
• Max Insulation Diameter: 1.52 mm
• Moisture Protection: Gel-filled
• Max Voltage: 30 V AC/DC
• Installation: Crimp (no stripping)
• Body Material: Polypropylene
• Contact Material: Tin-plated brass/bronze
• Color: Yellow
• Operating Temperature: -40°C to +60°C
• Quantity: 100 pieces
• Reusability: Single-use
• Dielectric Strength: 1000 V RMS

Recommendations

For best results, use with a compatible crimping tool designed for UY connectors. Ensure wires are fully inserted before crimping. Suitable for indoor and outdoor use where moisture resistance is required.
