DIGITUS 42HE palvelinkaappi Unique Server-N Series - 800x1000mm

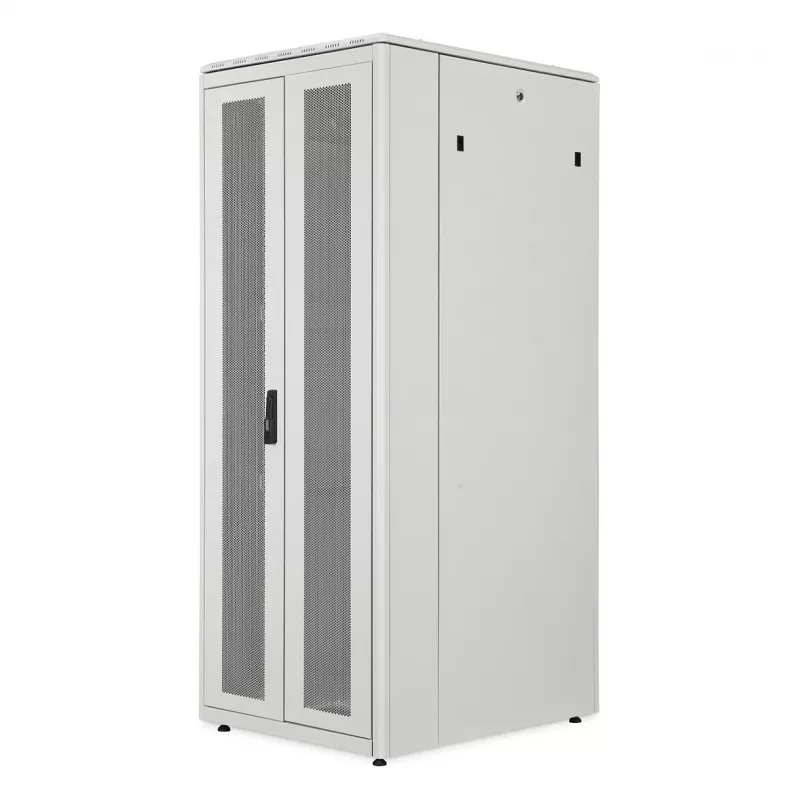

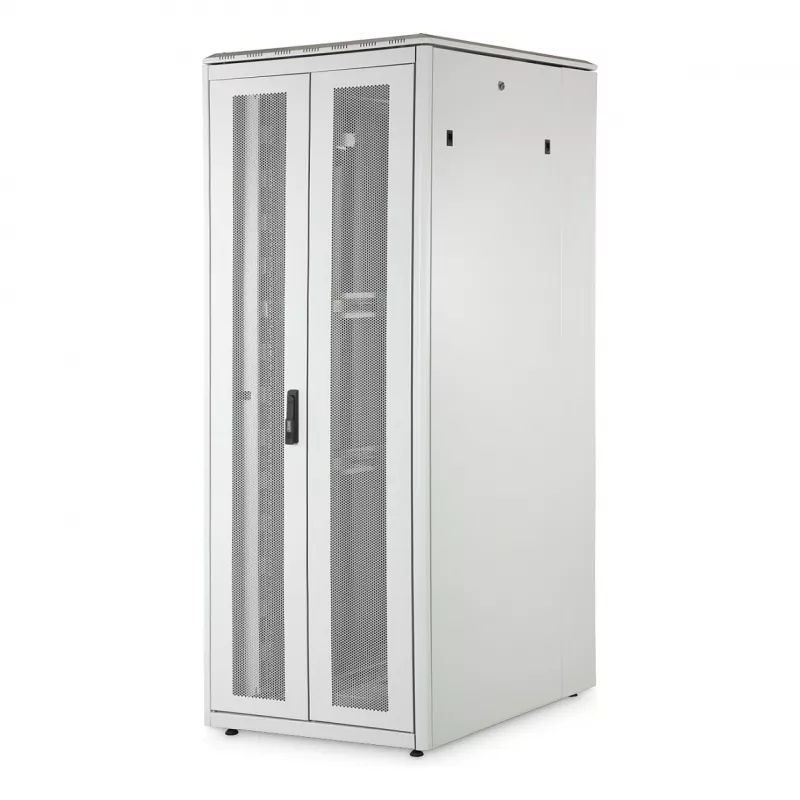

The DIGITUS 42HE Server Rack from the Unique Server-N Series offers a robust and reliable enclosure for your 19-inch server and network equipment. With a height of 42U and dimensions of 800x1000mm (WxD), this freestanding rack cabinet provides ample space for demanding IT environments. Its welded steel frame ensures stability and a static load capacity of up to 1000 kg.

Advantages

High load capacity of 1000 kg allows for heavy equipment. Perforated front and rear doors with 70% perforation ensure optimal airflow for cooling. Removable and lockable side panels provide easy access and security. Depth-adjustable 19-inch mounting profiles offer flexibility for various installation depths.

Suitable for

• Data centers and server rooms requiring high-density equipment mounting
• Network cabinets for switches, patch panels, and UPS systems
• Professional IT infrastructure where security and ventilation are critical

Key specifications

• Rack Units: 42U
• External dimensions (WxDxH): 800 x 1000 x 2053 mm
• Static load capacity: 1000 kg
• Material: Steel sheet, light grey (RAL 7035)

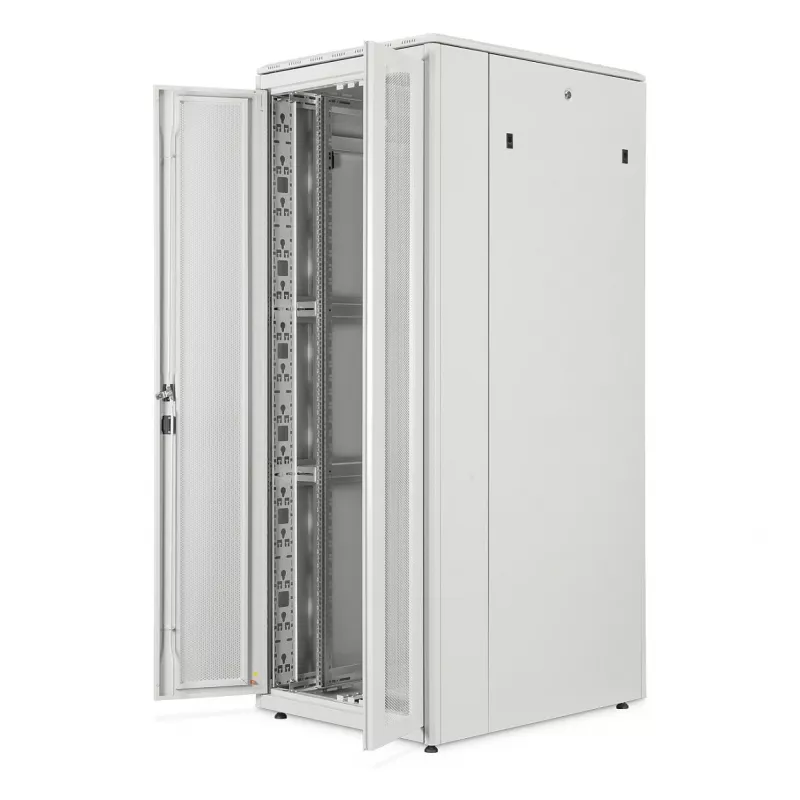

• Front door: Perforated steel door (70% perforation)
• Rear door: Split perforated steel door (70% perforation)

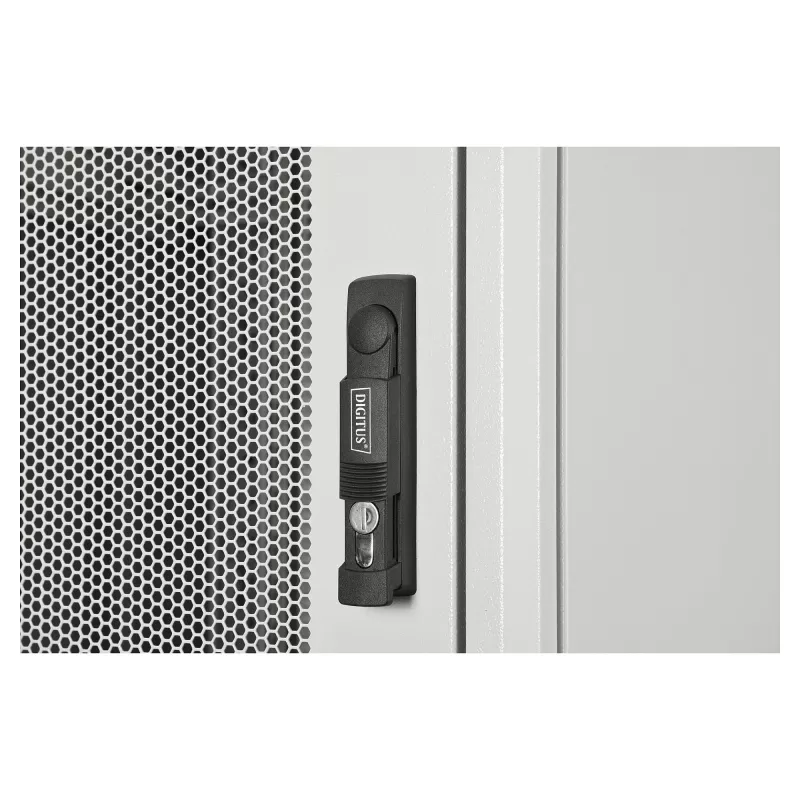

• Side panels: Removable, lockable

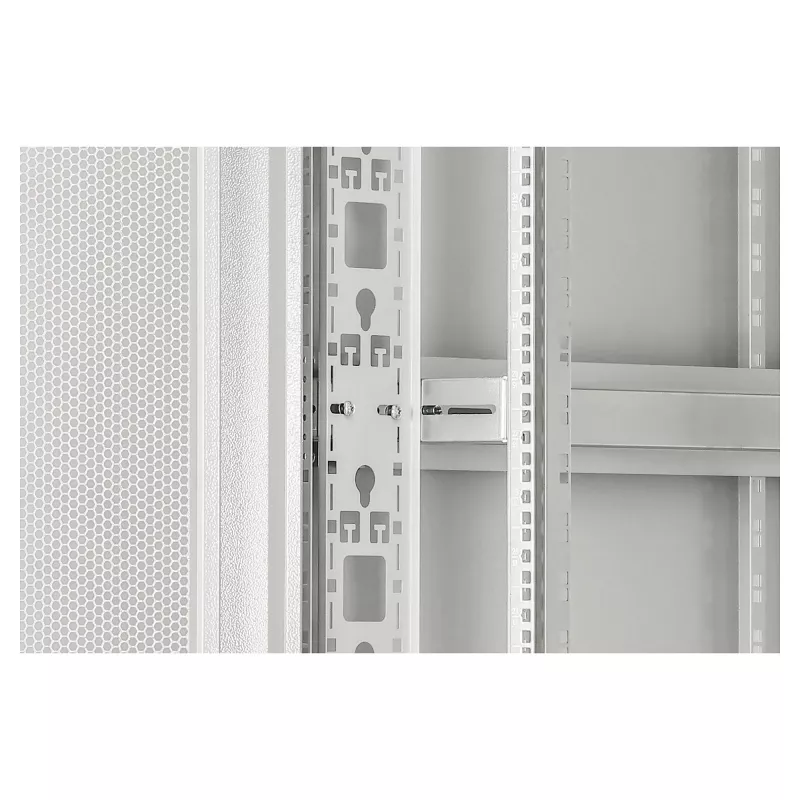

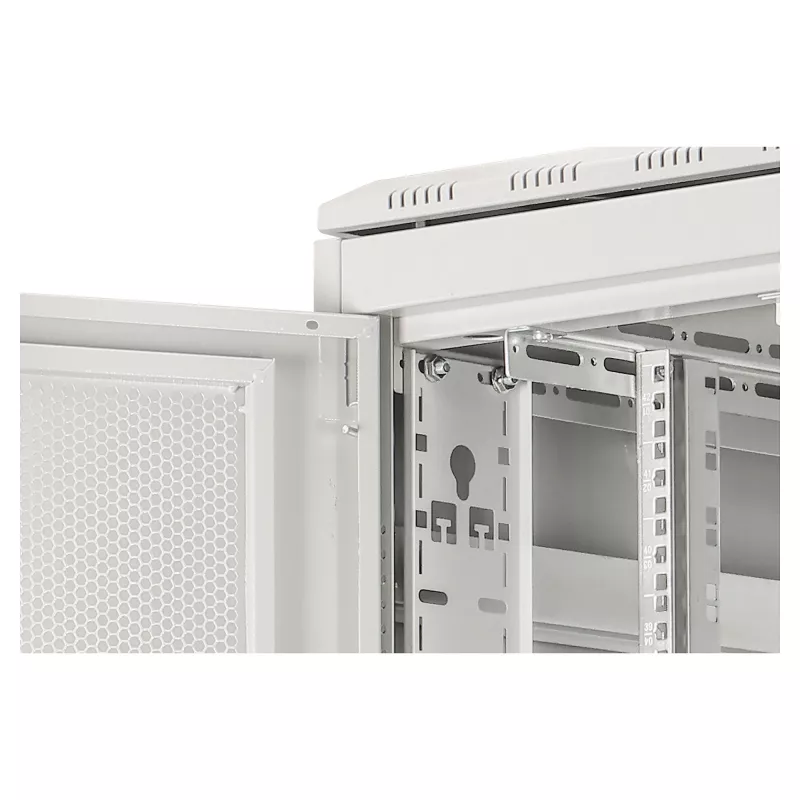

• 19-inch mounting profiles: Front and rear, depth-adjustable
• Max. installation depth: approx. 880 mm

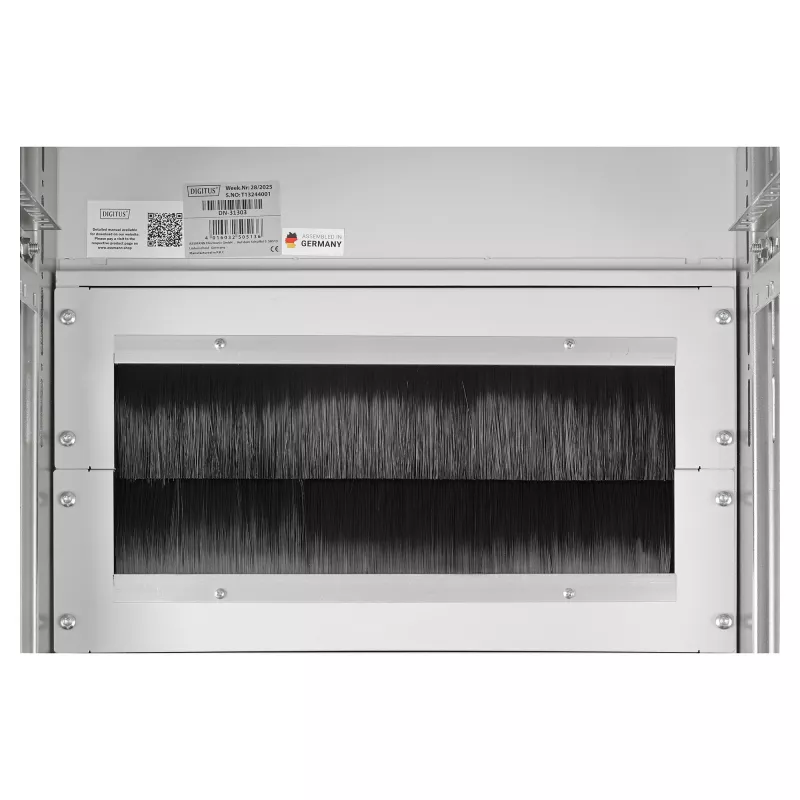

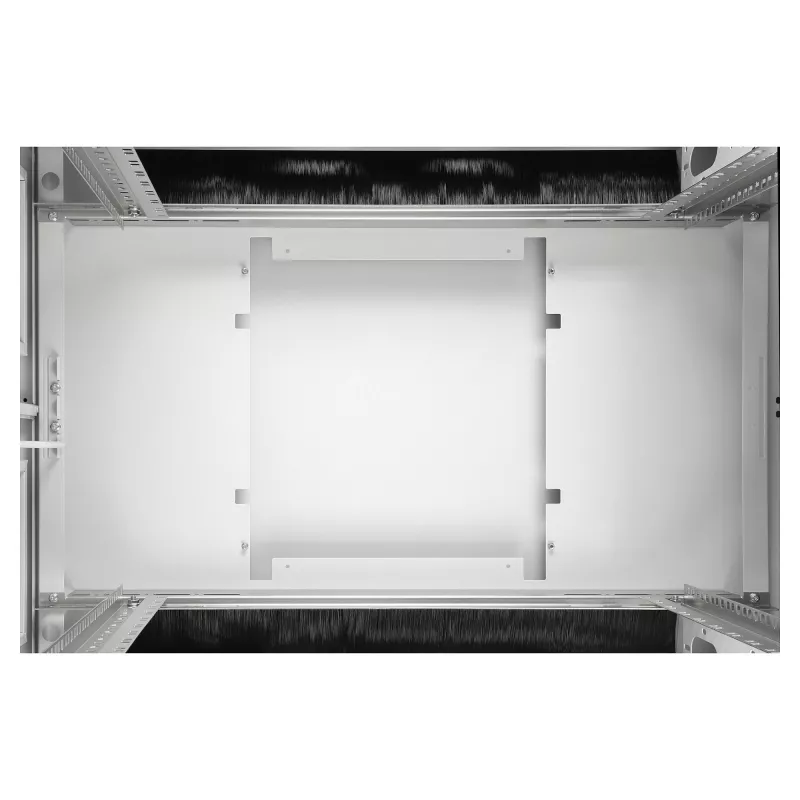

• Cable entry: Top and bottom with brush strips
• Protection class: IP20
• Ventilation: Passive, prepared for active ventilation units

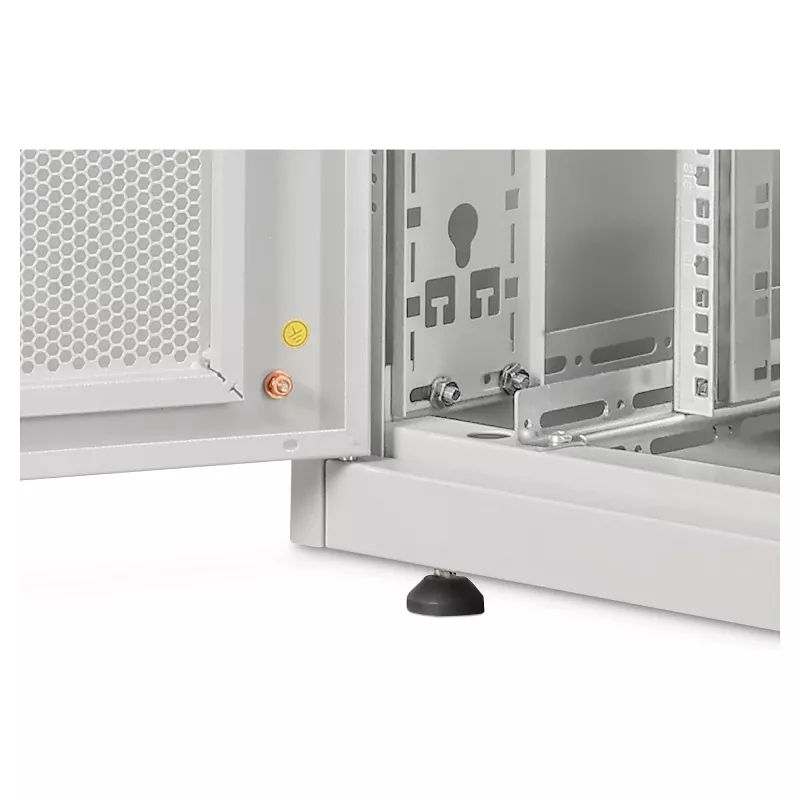

• Included accessories: 4x leveling feet, 4x castors, 20x cage nuts, earthing kit

Recommendations

For optimal cooling, consider adding active ventilation units. The rack is designed for indoor use only. Ensure proper earthing during installation.
