DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m

DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m
DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m
DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m
DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m
DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m
DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m
DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m
DIGITUS FTTH drop-kaapeli - singlemode 4 Fiber LC/APC G.657.A2 50m
54,09 €
High-quality cables offer an excellent option for fiber optic connections in the intended network level 4. Installation is facilitated by pre-assembled connectors for all 4 fibers at one end of the cable.- Significantly reduces installation time- Pre-assembled with LC/APC connectors on one side- The... Lue lisää
Varasto 2 Tuotekoodi 129349 Merkki DIGITUS Malli DK-3904LCA-50 Takuu 2 vuotta

Toimitus ja palautukset

Arvioitu toimitusaika Maanantai, Lokakuu 26
Saat päivitykset yksityiskohtaisen seurantajärjestelmän kautta
Maksuvaihtoehdot
MaksukorttiVisaMastercardPayPalApple PayGoogle PayTilisiirto

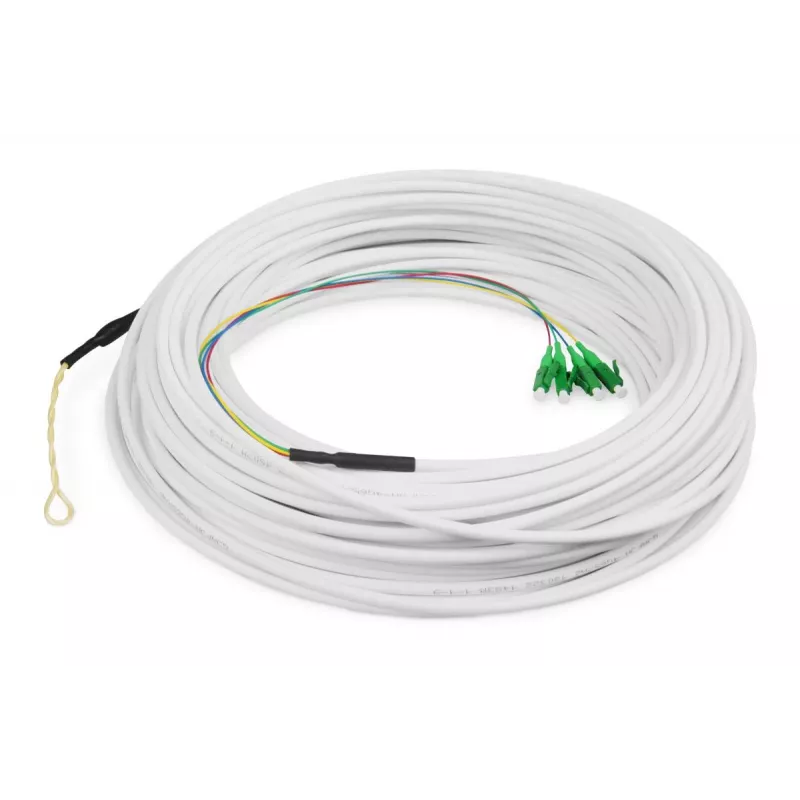

High-quality cables offer an excellent option for fiber optic connections in the intended network level 4. Installation is facilitated by pre-assembled connectors for all 4 fibers at one end of the cable.

- Significantly reduces installation time

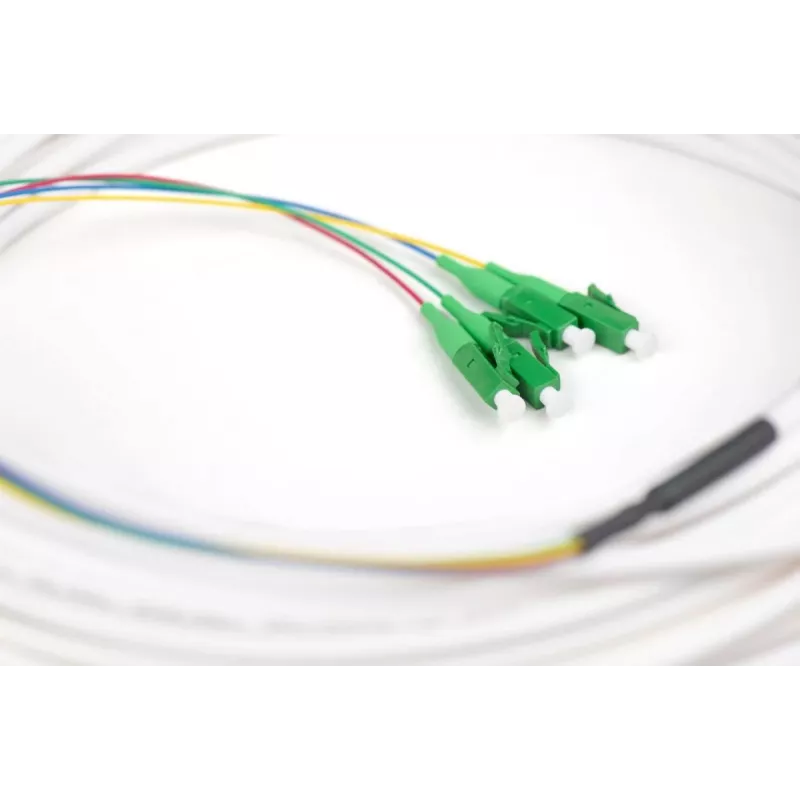

- Pre-assembled with LC/APC connectors on one side
- The open end can simply be pulled in or connected to the house distributor
- G.657A2 bend-optimized

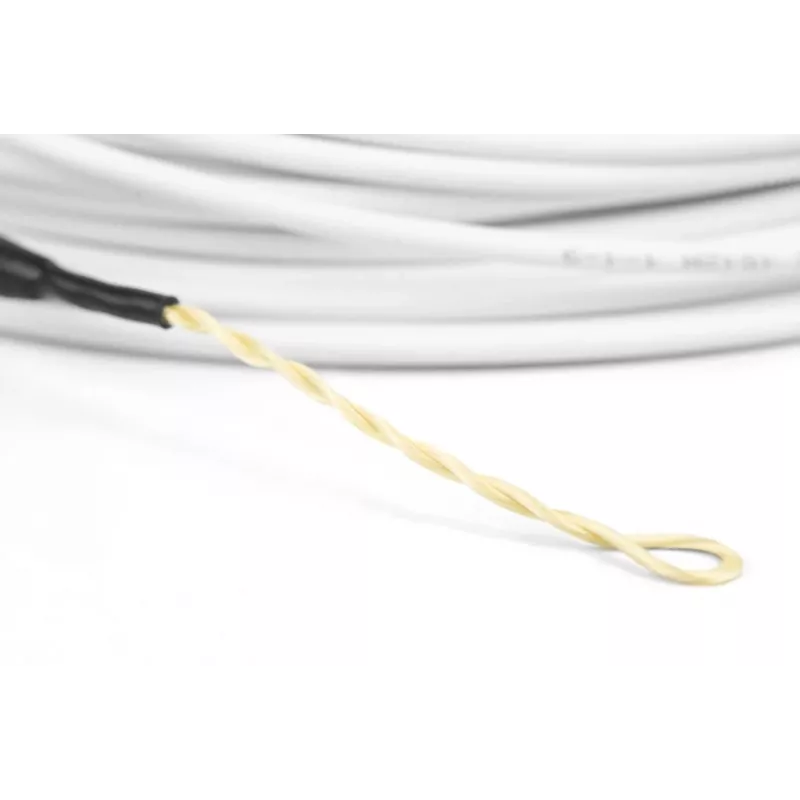

- Sturdy pull-in loop for pulling the cable into trunking systems

The growing demand for the extension of fiber optic networks into the home requires products that enable simple and efficient installation to implement the network. The Digitus cable offers the possibility of easily extending and completing the fiber optic network in the home. The cable is designed for use as a connecting cable between the building distributor and the floor distributor or subscriber termination point at network level 4. The simple installation results from the fact that the cable is pre-assembled on the subscriber side and open with LC/APC connectors; it can then be installed through a duct to the distributor, which serves as the entry point for the fiber optic network in the building.

Tärkeimmät ominaisuudet
  • Fiber type : Singlemode 9/125
  • Category : G657A2
  • Cable length : 50 m
  • Number of fibers : 4
  • Fiber colors : blue, green, yellow, red

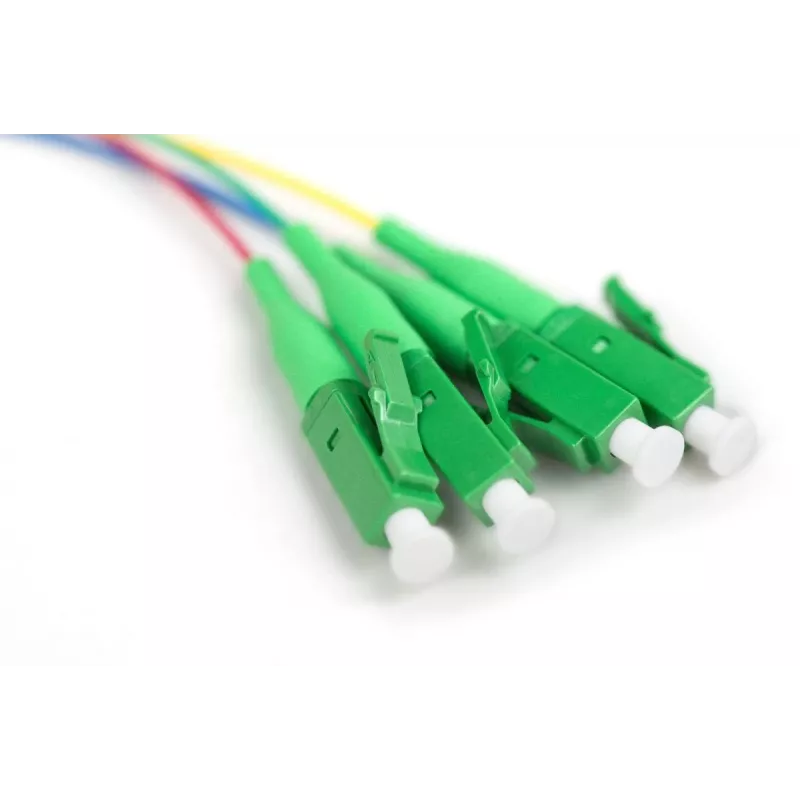

  • Connector type : LC/APC
  • Coat color : White
  • Sheath material : LSZH
  • Stranding element : Kevlar yarn
  • Cable structure : Dca
  • Cable diameter : 2,4mm
  • Diameter of the pulling aid : 7-8cm (length)
  • Min. Bending radius of the cable : 10D/20D
  • Tensile strength : 400 N
  • Compressive strength : 1000 N
  • Insertion loss of the plug : ≤0.3 dB
  • Return loss of the plug : ≥60 dB
  • Storage temperature : -40 to +80 °C
  • Working temperature : -20~+70
  • Cable weight : 0,63kg
Tekniset tiedot
Heijastusvaimennus
60 dB
Hylsyn halkaisija
9 µm
Kaapelin halkaisija
4 mm
Kaapelin muoto
Round
Kaapelin pituus
50 m
Kaapelin tyyppi
LC/APC
Käyttölämpötila (T-T)
-20 - 70 °C
Kuidun moodirakenne
Single-mode
Kuitutyyppi
G.657.A2
Liitin 1
4x LC
Liitin 2
No
Liittimen 1 uros/naaras
Male
Liittimen 2 uros/naaras
No
Liittimen hiontatyyppi
APC
Lisäysvaimennus
0.3 dB
Määrä pakkauksessa
1 pc(s)
Paino
630 g
Plug and Play
Yes
Puristuslujuus
1000
Säilytyslämpötila (T-T)
-40 - 80 °C
Tuotteen väri
White
Vaipan halkaisija
125 µm
Vaipan materiaali
Low smoke zero halogen (LSZH)
