Digitus Fttx-asennussarja valmiiksi koottu 4-kuituinen LC/APC-liitin 30 m

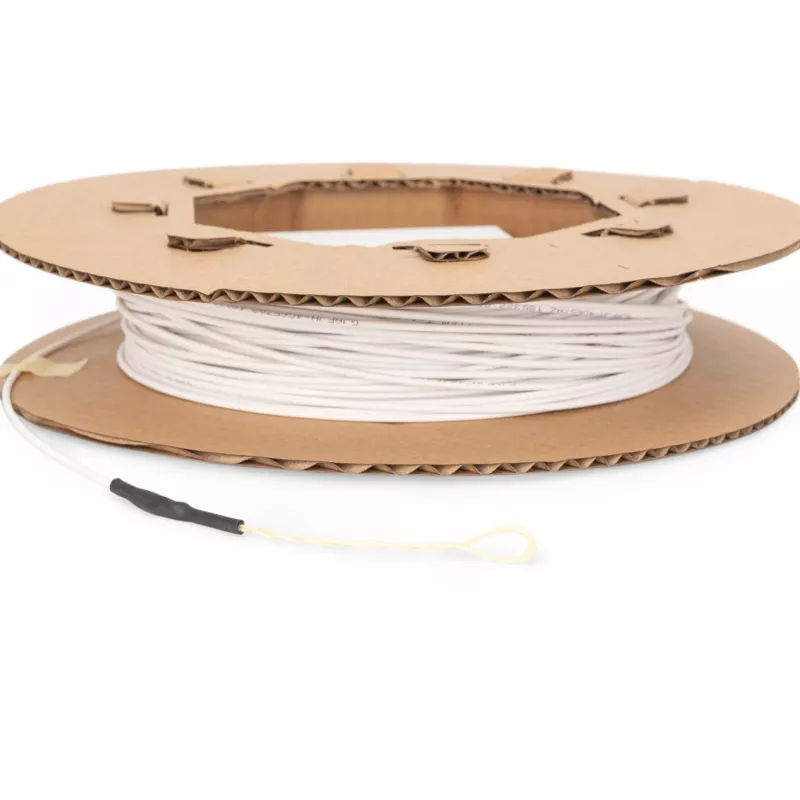

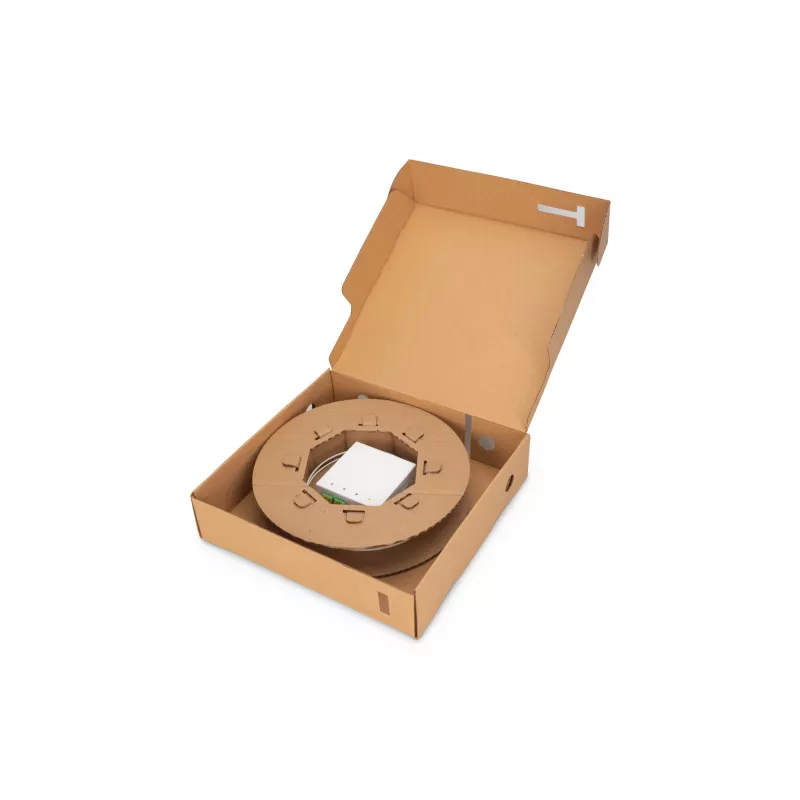

The compact FTTH kit with a pre-assembled 30 m fiber optic installation cable containing four fibers and LC/APC connectors on one end is designed for installing high-speed fiber connections within the home for network level 4. The kit includes a surface-mountable junction box with integrated provisions for secure patch-cable routing and a pulling eye for conduit installation.

Advantages

Pre-assembled LC/APC connectors on the drop cable reduce on-site termination work and shorten installation time within the residential unit. The open cable end can be pulled or laid up to the building handover point, and the surface-mount box secures patch cables while providing space for splicing and additional connections. Integrated captive laser protection on the LC/APC couplings improves safety during handling.

Suitable for

• FTTH home installations requiring a 4-fiber drop
• Residential network level 4 deployments
• Situations where quick installation and minimal field termination are required
• Connections between building entry (handover) points and in-home distribution/routers

Key specifications

• Cable length: 30 m
• Fiber count: 4 fibers
• Connector type (pre-assembled one end): LC/APC
• Core diameter: 9 µm (single-mode)

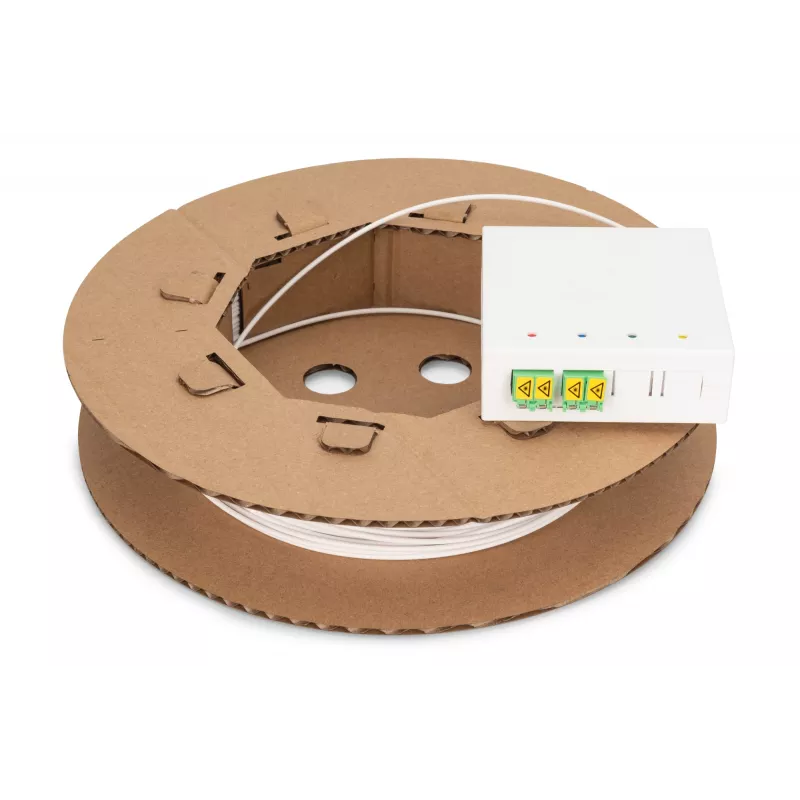

• Box type: surface-mount junction box with cable management and splicing space
• Includes integrated captive laser protection on LC/APC couplings

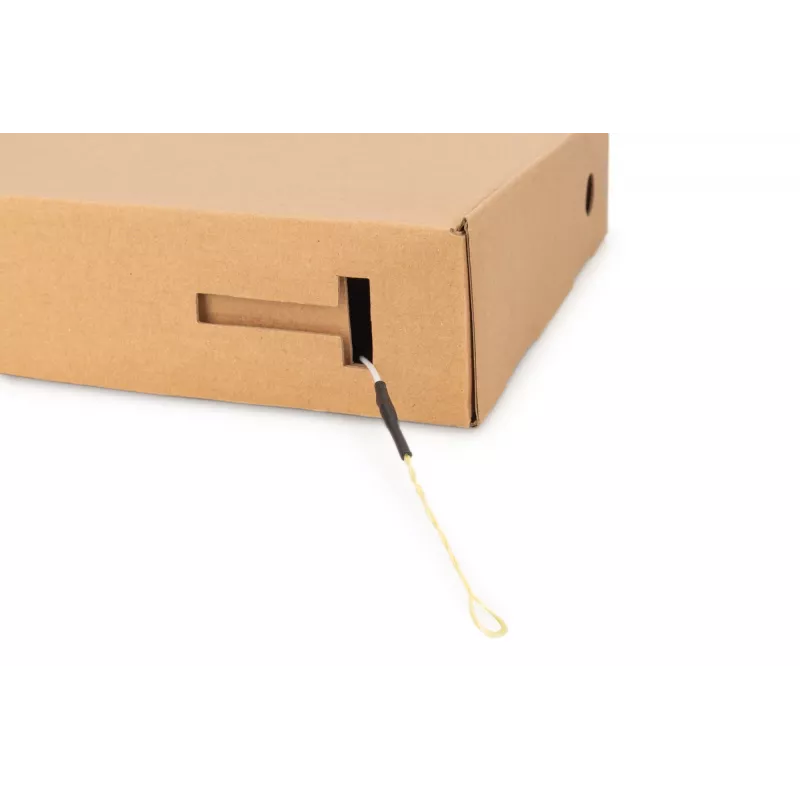

• Pulling eye for conduit installation

How to use

Mount the surface junction box at the chosen in-home location and route the pre-assembled drop cable through the intended path to the building handover point. Pull the open end of the cable into the conduit or entry point using the pulling eye if required. Connect the pre-assembled LC/APC connectors to the appropriate adapter or patch panel within the junction box, and complete any needed splicing or additional connections inside the box before connecting to the router or in-home distribution.

Recommendations

Handle LC/APC connectors with integrated laser protection caps in place until final connection. Avoid sharp bends and excessive tensile loads on the fiber; use the pulling eye and follow standard fiber installation best practices to ensure signal integrity and long-term reliability.
