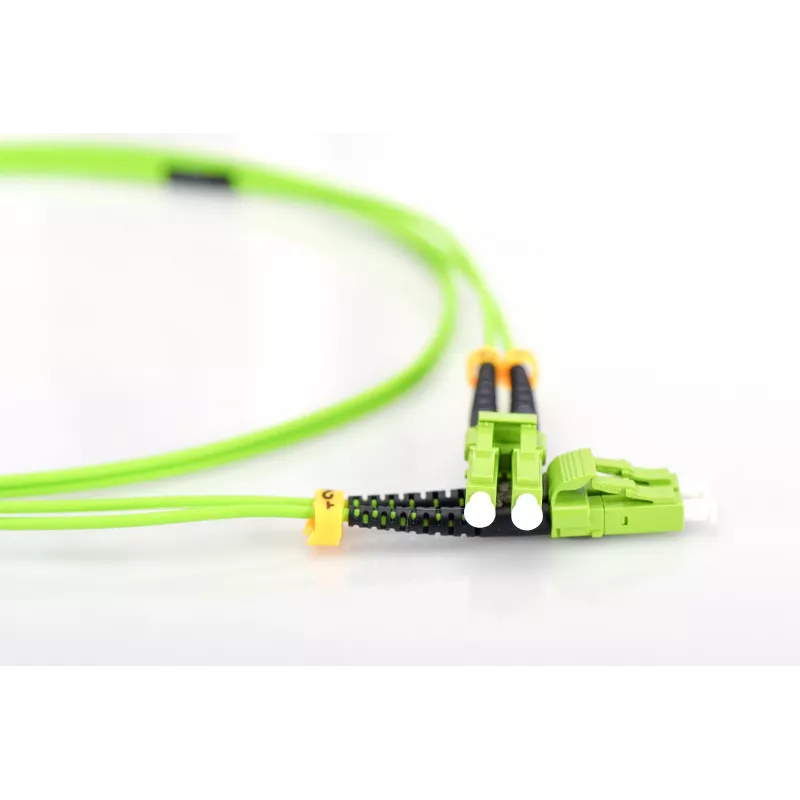

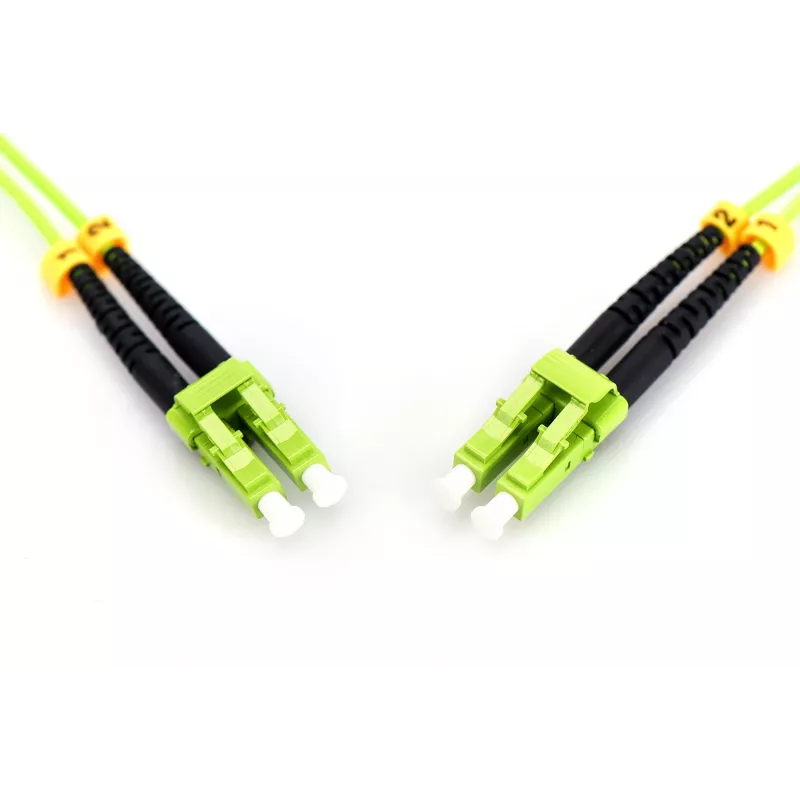

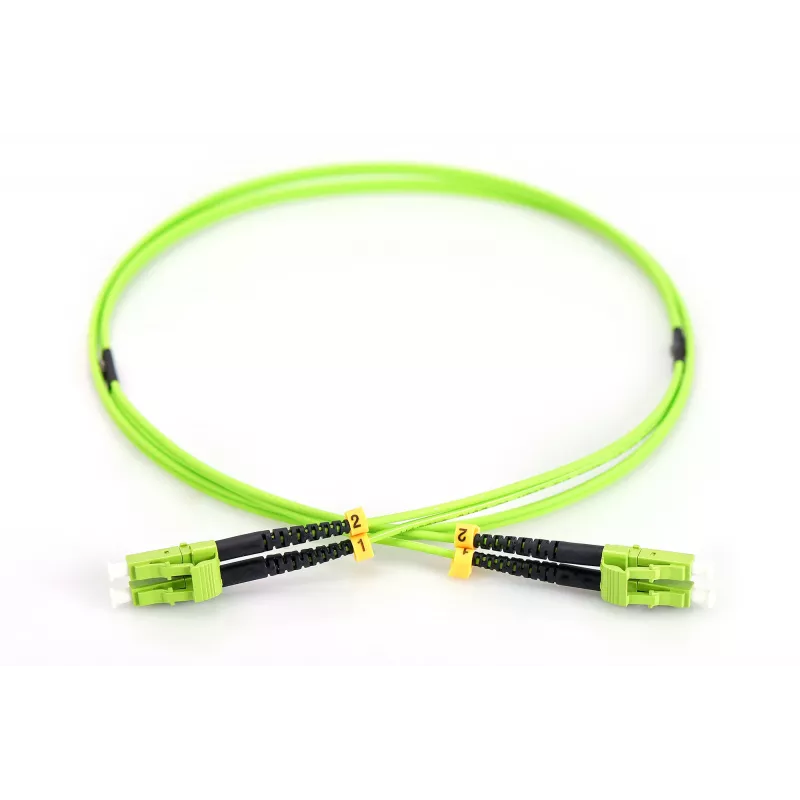

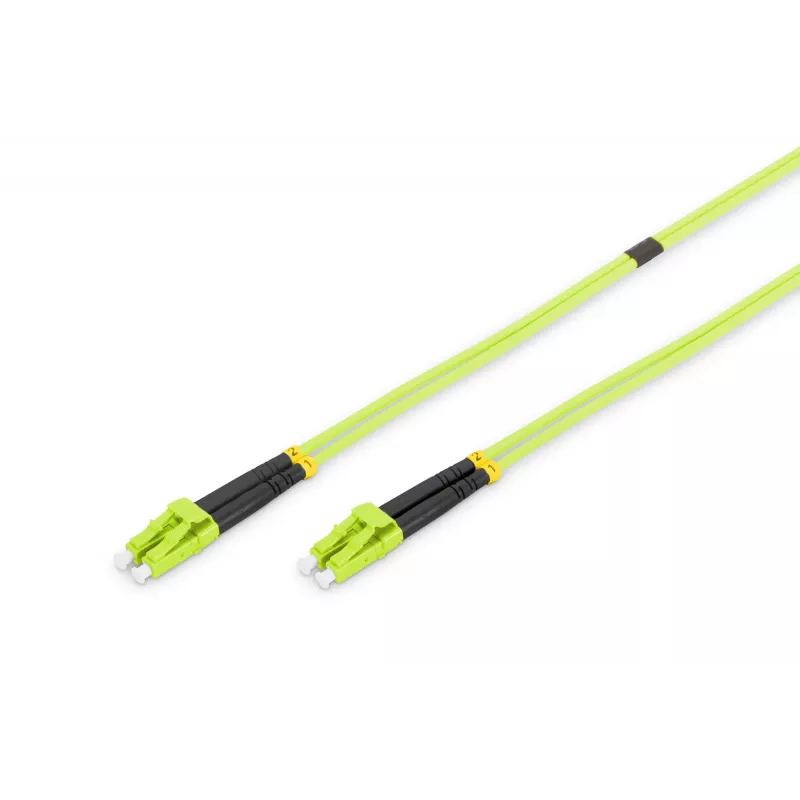

Digitus LC/LC OM5 -kuitu-patchkaapeli 1 m

Future-oriented standards and high-end quality for your network. FO patch cord, duplex, LC to LC, multimode OM5 50/125 µm, length 1 m. The cable supports high-speed data transmission in modern multimode fiber installations and is suitable for use in data centers, enterprise networks and telecommunication closets.

Advantages

The duplex LC to LC OM5 patch cord offers low insertion loss and reliable connector performance, ensuring stable optical connections. Its standardized 50/125 µm multimode core and OM5 specification provide enhanced bandwidth and support for wavelength-division multiplexing in multimode environments. The 1 m length is suitable for short interconnections and panel-to-equipment links.

Key specifications

• Connector type: LC to LC, duplex
• Fiber type: Multimode OM5
• Core/cladding: 50/125 µm
• Length: 1 m
• Mode: Multimode

How to use

Align and insert each LC connector into the corresponding LC adapter or equipment port until it clicks. Ensure connectors and adapters are clean before mating to minimize insertion loss. Route the cable without tight bends and avoid mechanical stress; observe minimum bend radius recommendations for multimode fiber to maintain performance.

Recommendations

For optimal performance, use dust caps when connectors are not in use and perform regular visual inspection and cleaning with appropriate fiber cleaning tools. Choose cable lengths that avoid unnecessary excess and follow industry guidelines for multimode OM5 deployments.
