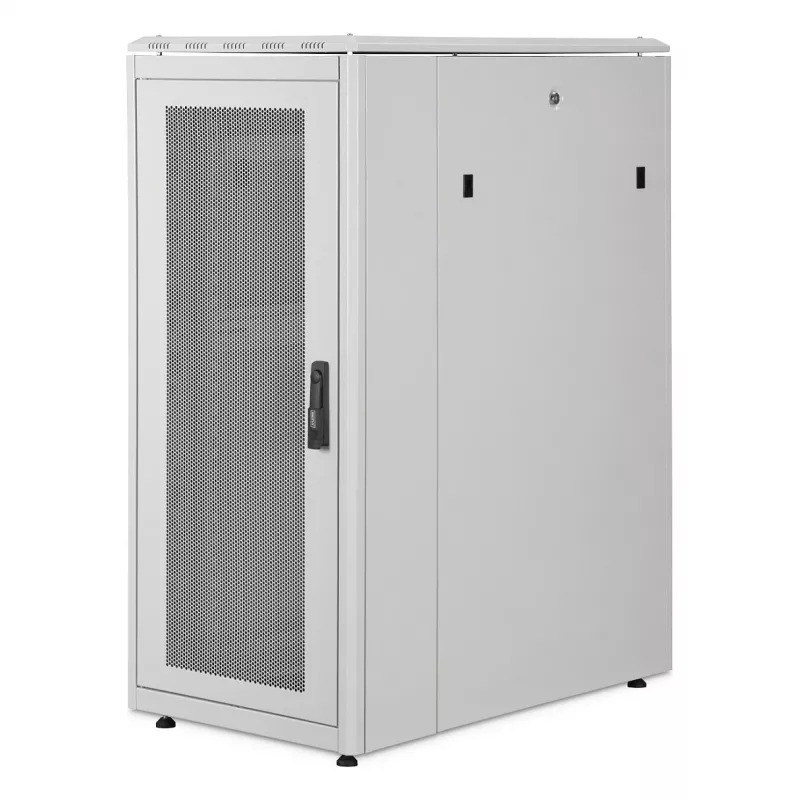

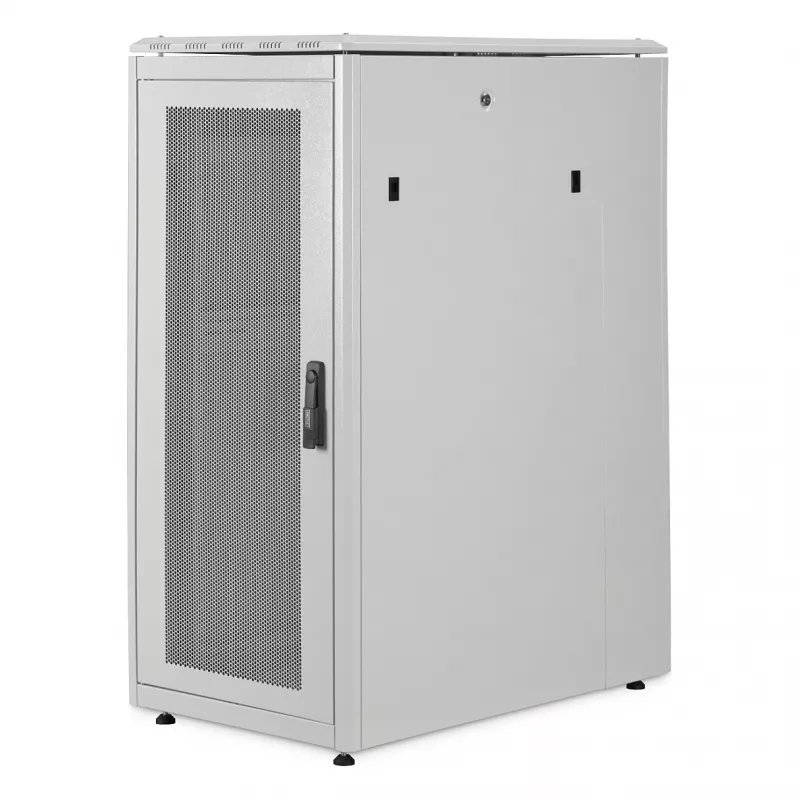

Digitus palvelinkaappi Unique Server-N sarja - 600x1000 mm (LxS)

Digitus Server cabinet Unique Server-N series - 600x1000 mm (WxD). Type: Freestanding rack, Rack capacity: 26U, Maximum weight capacity: 1200 kg, Key lock, Adjustable feet, Cable management, International Protection (IP) code: IP20. Weight: 77 kg. Product colour: Grey

Key Features

• Protection class IP20

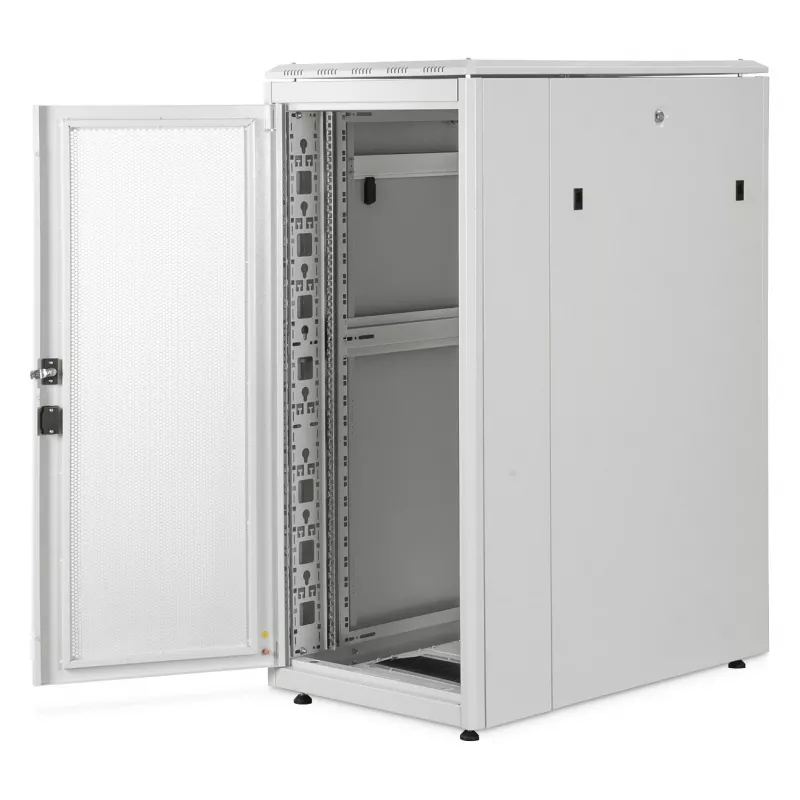

• Front and rear door made of 70% perforated steel

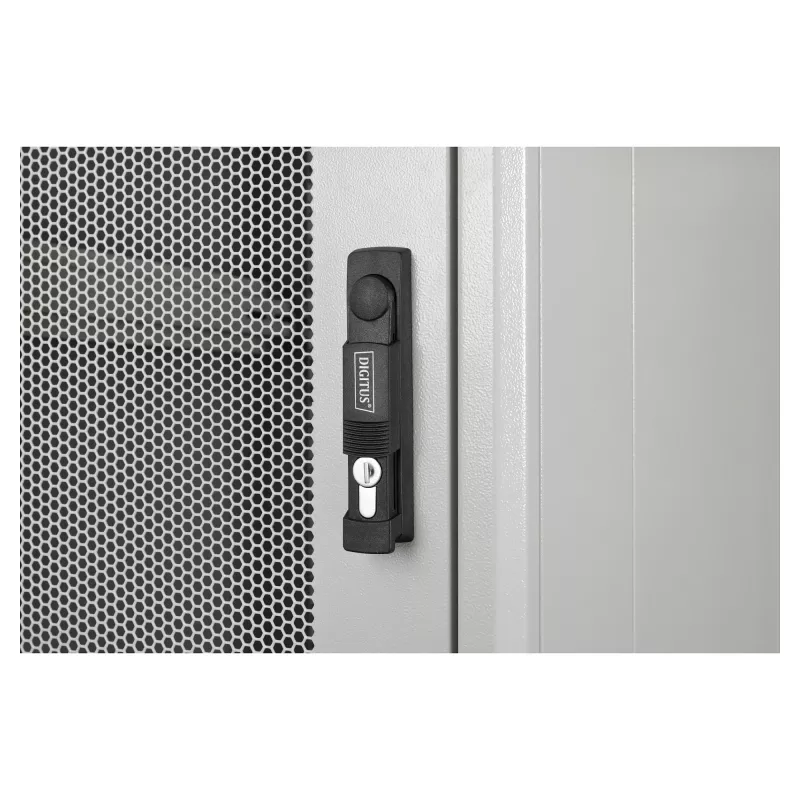

• Swivel handle with profile half-cylinder lock incl. type 333 key on the front and rear door
• 1-point locking on all doors
• Removable side panels with type 333 sash lock and additional snap lock
• Incl. 4 levelling feet M10, enclosed

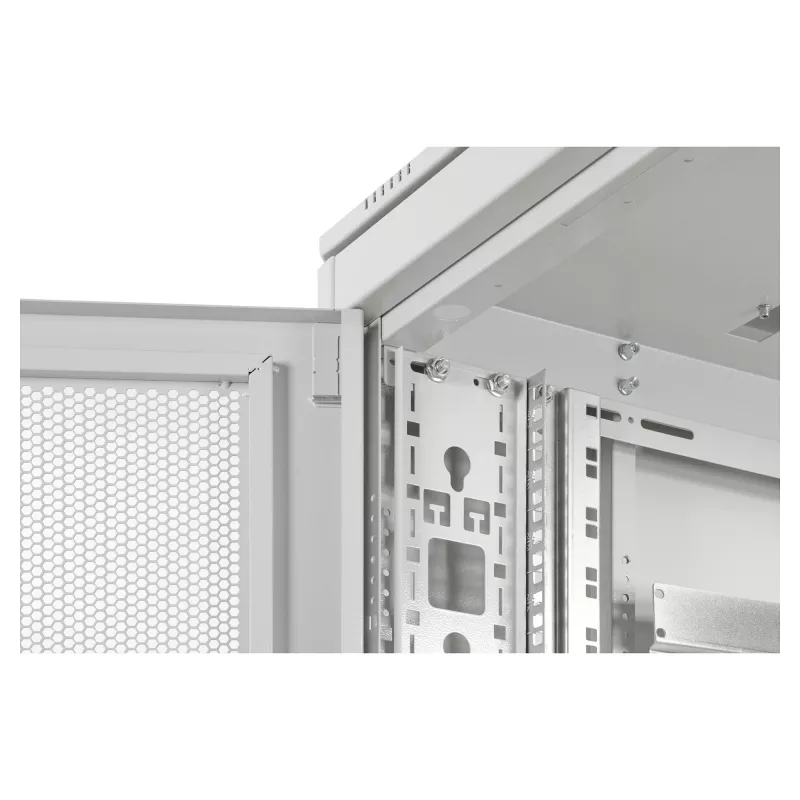

• 483 mm (19") profile rails mounted at the front and rear inside the enclosure, infinitely adjustable
• 483 mm (19") profile rails are galvanized and numbered in opposite directions to the height units
• 483 mm (19") profile rails are connected to depth struts for increased stability
• High load capacity of the 483 mm (19") profile rails of up to 1200 kg
• Installation depth for components min.-max.: 688-943 mm
• Modular, openable base chassis with removable 19" blind panels (450 x 670 mm)
• Cable inlets in the base: 400 x 170 mm (rear)

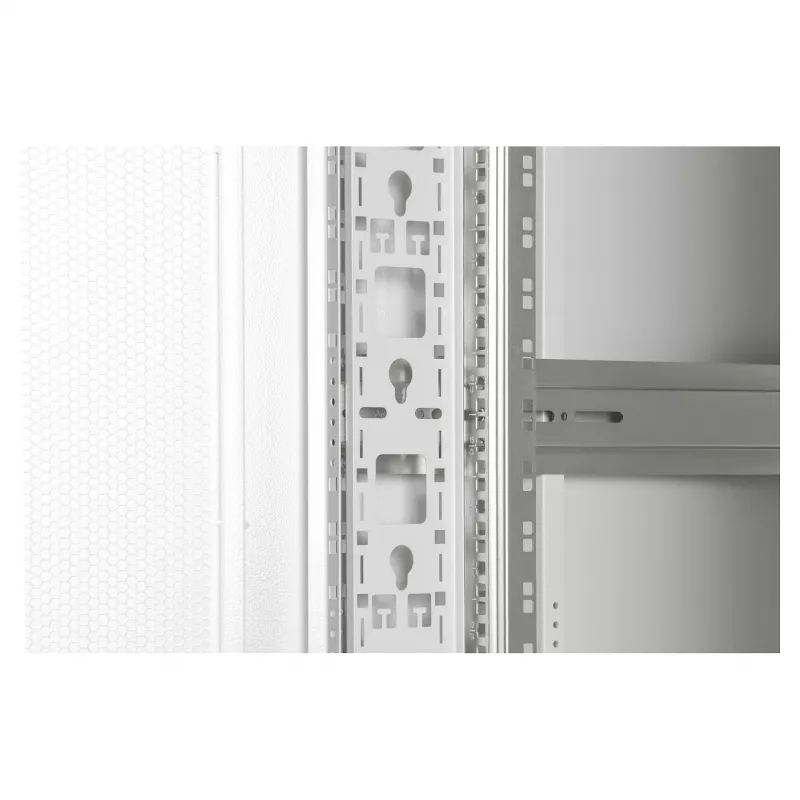

• Integrated PDU holders in the rear cabinet area on the left and right

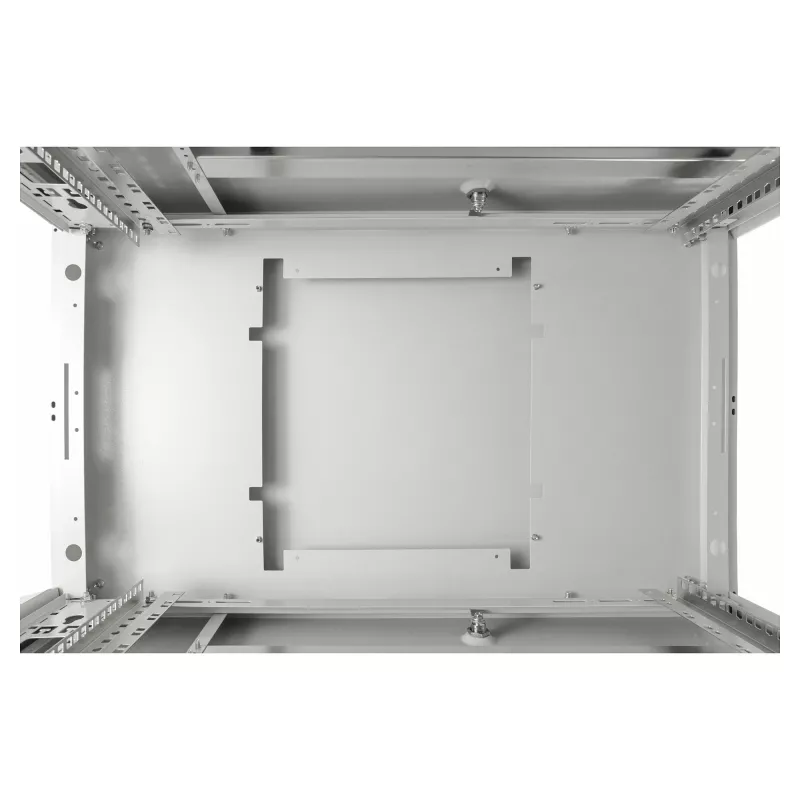

• Roof is prepared to accommodate a fan unit and an attached, removable cover

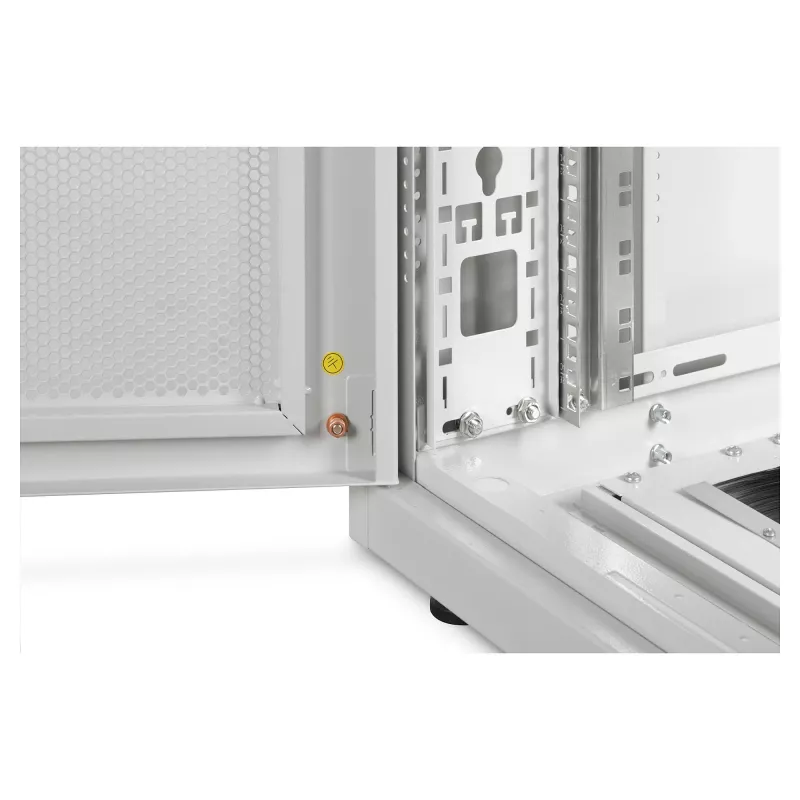

• Earthing points in the cabinet and on removable doors/walls
• Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)
• 26U Freestanding rack 1200 kg

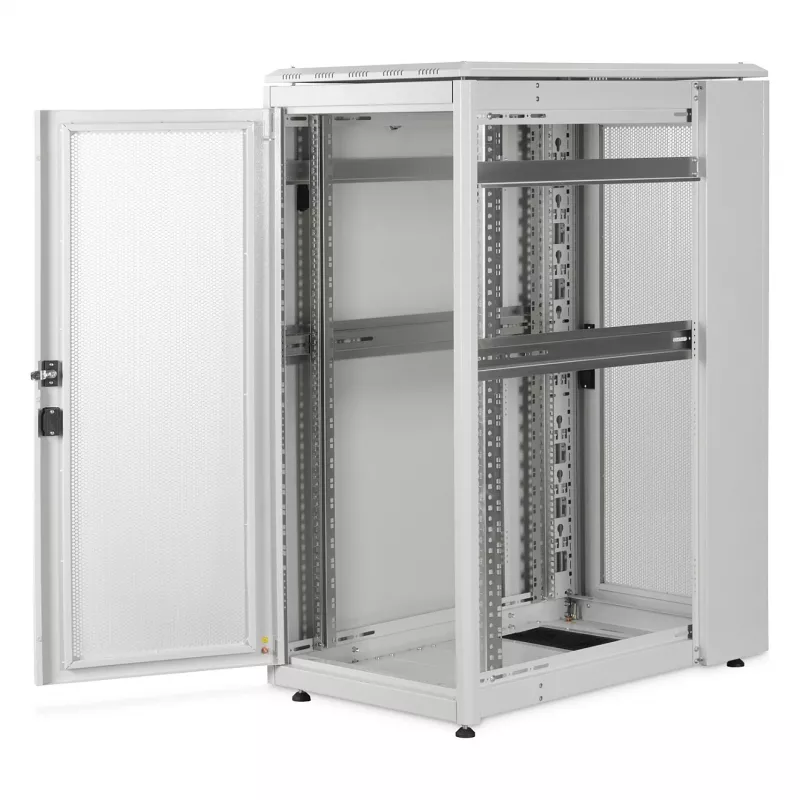

• Removable front door Removable side panels
• Steel
• Grey

The DIGITUS® server cabinets of the Unique Server-N series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.

- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Swivel handle with profile half-cylinder lock incl. type 333 key on the front and rear door
- Modular, openable base chassis with removable 19" blind panels

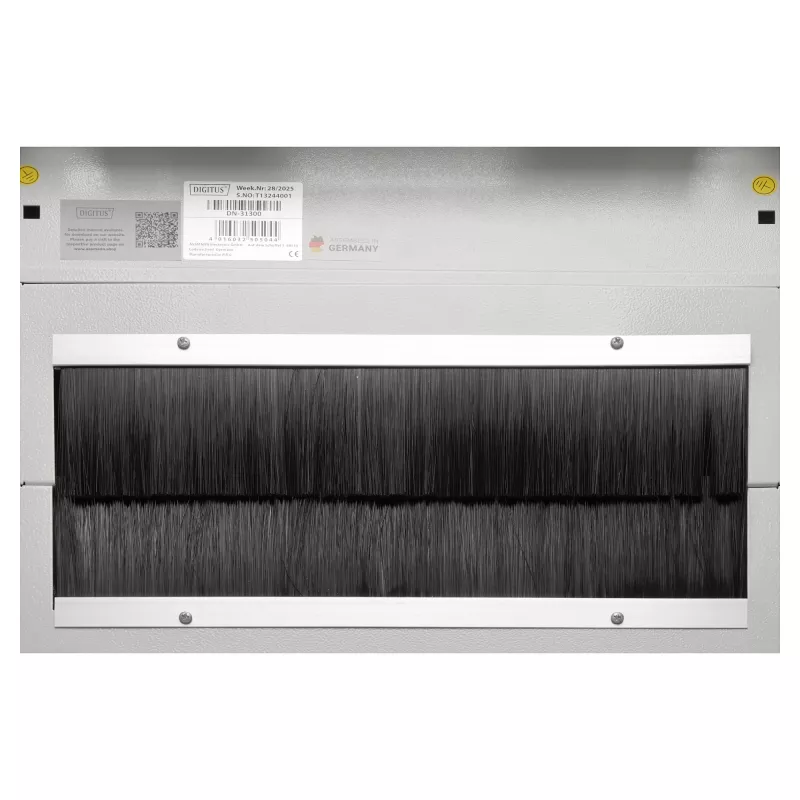

- Flexible cable routing options thanks to generous cable inlets with brushes in the base
- Integrated PDU holders in the rear cabinet area on the left and right
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

The server cabinets in the Unique Server-N series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. There are also cable inlets with brushes at the rear of the floor chassis. Generous vertical cable ducts with cable routing aids and covers, installed in the front (from 800 mm enclosure width), as well as integrated holders for socket strips in the rear enclosure area, perfectly round off the versatile features of the server enclosure. Perforated steel doors, both at the front and rear, ensure improved air circulation and therefore optimum passive cooling. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
