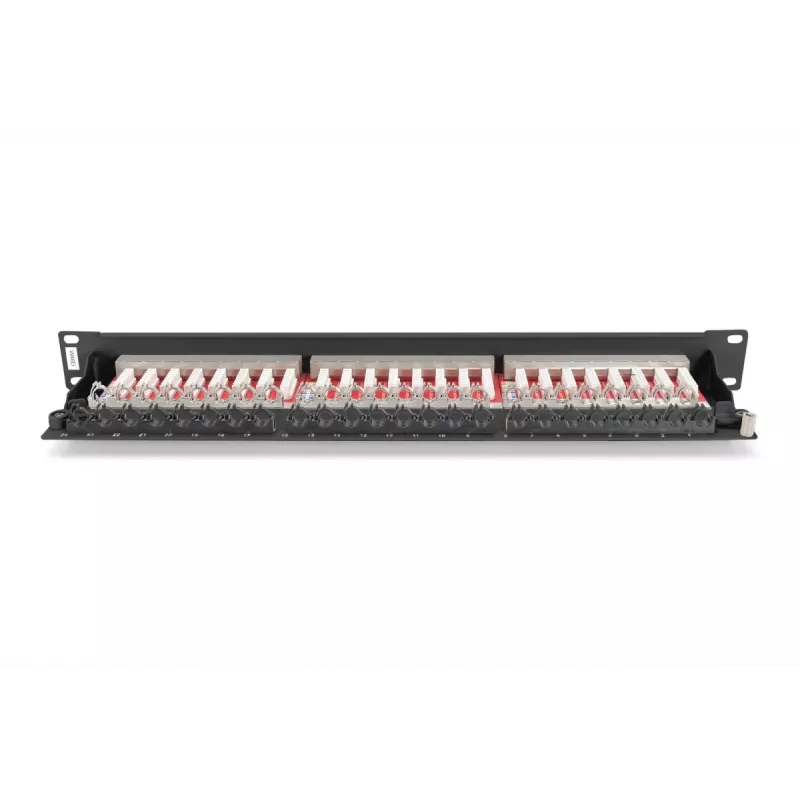

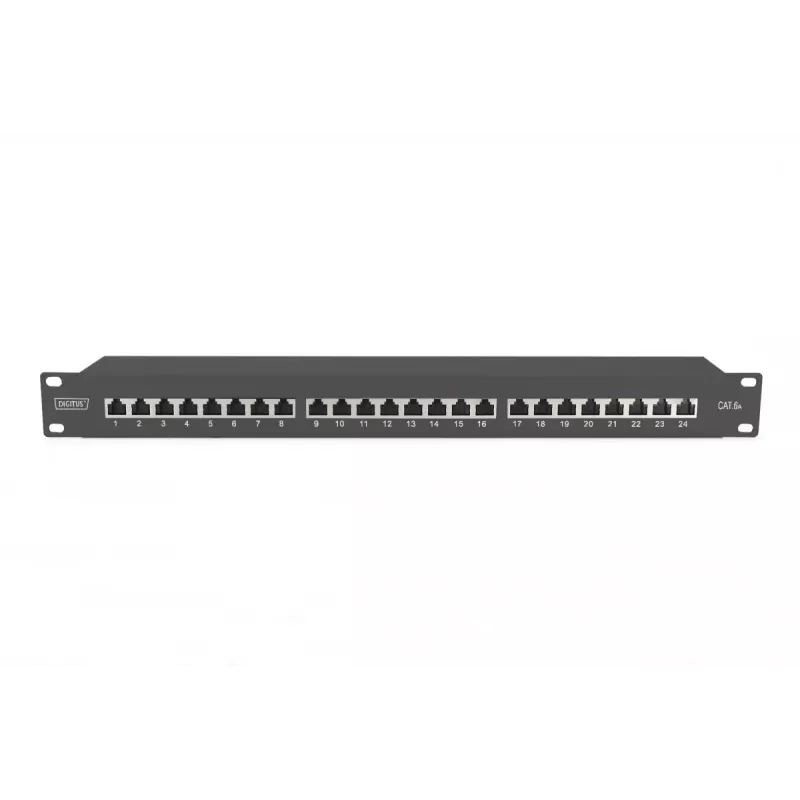

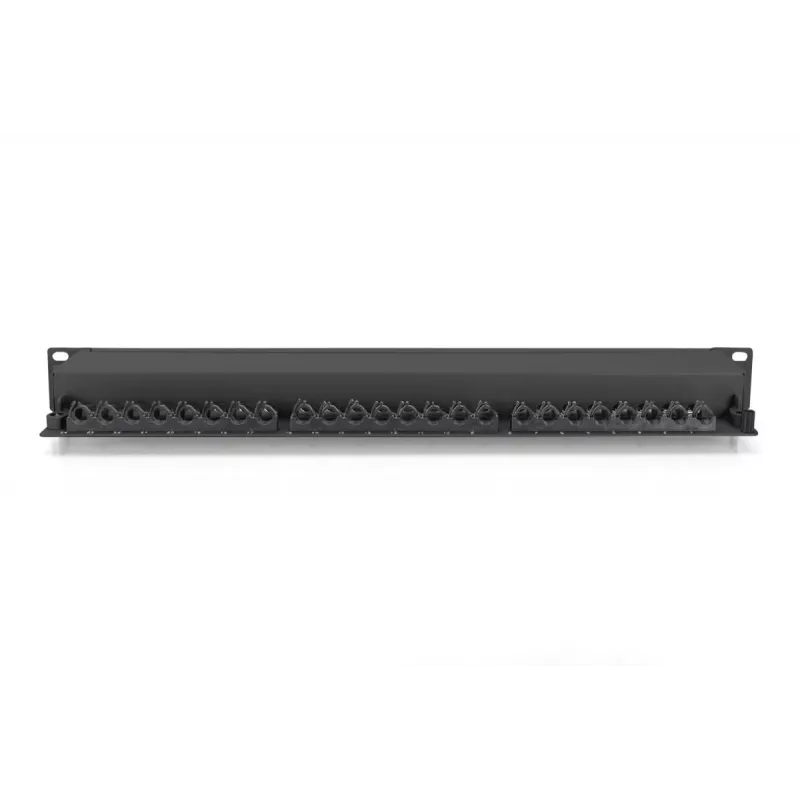

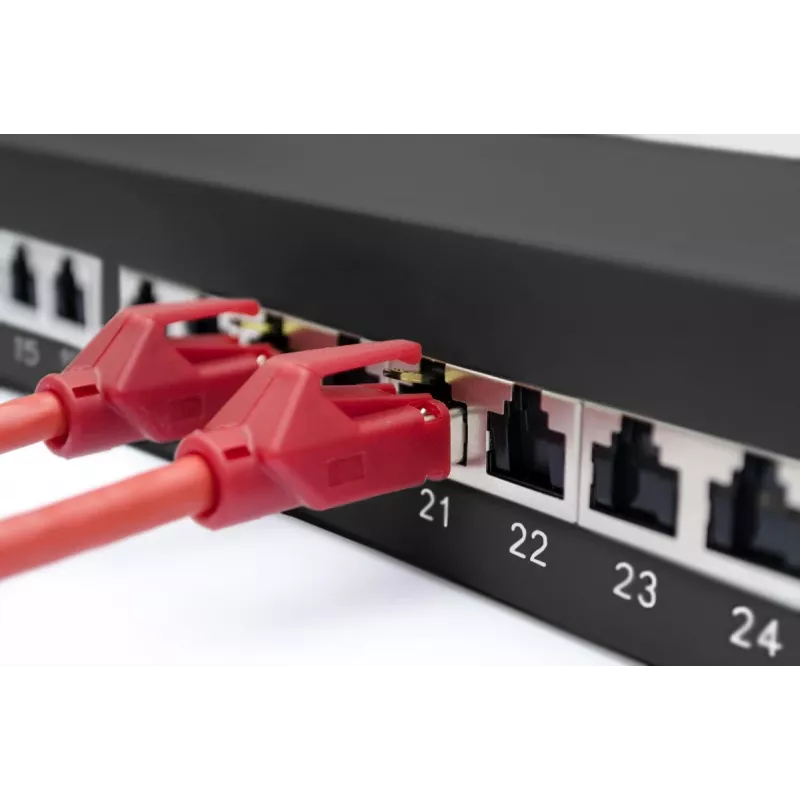

DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu

DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
DIGITUS Professional CAT6A, luokka EA patch-paneeli, suojattu
89,71 €
PDF
PDF
Varasto 7 Tuotekoodi 117834 Malli DN-91624S-EA-B Takuu 2 vuotta

Toimitus ja palautukset

Arvioitu toimitusaika perjantai 4. joulukuuta
Saat päivitykset yksityiskohtaisen seurantajärjestelmän kautta
Maksuvaihtoehdot
MaksukorttiVisaMastercardPayPalApple PayGoogle PayTilisiirto

Esitä kysymys – AI-avustaja vastaa heti.

Kuvaus

The DIGITUS® DN-91624S-EA CAT 6A 24-port patch panel provides high-end quality and future-oriented standards for structured networks. Constructed from 1.5 mm cold-rolled steel with full metal shielding, it is designed for 19" rack mounting and supports PoE+ (802.3at) and PoE (802.3af) applications. The panel includes dust protection shutters, IDC-strip cable termination and a central grounding connector to ensure reliable shield contact and overall electromagnetic protection.

Advantages

The metal housing and complete shielding deliver effective EMI protection and improved signal integrity. IDC-strip termination and metal-coated cable fixation simplify installation and ensure solid grounding of the cable shield. A central grounding connector and dielectric strength up to 1500 VDC between contact and ground increase safety and durability. Dust protection shutters help maintain connector cleanliness in rack environments.

Key specifications

  • Model: DIGITUS® DN-91624S-EA
  • Ports: 24
  • Category: CAT 6A
  • Housing material: 1.5 mm cold-rolled steel
  • Shielding: complete metal shielding with shield contact

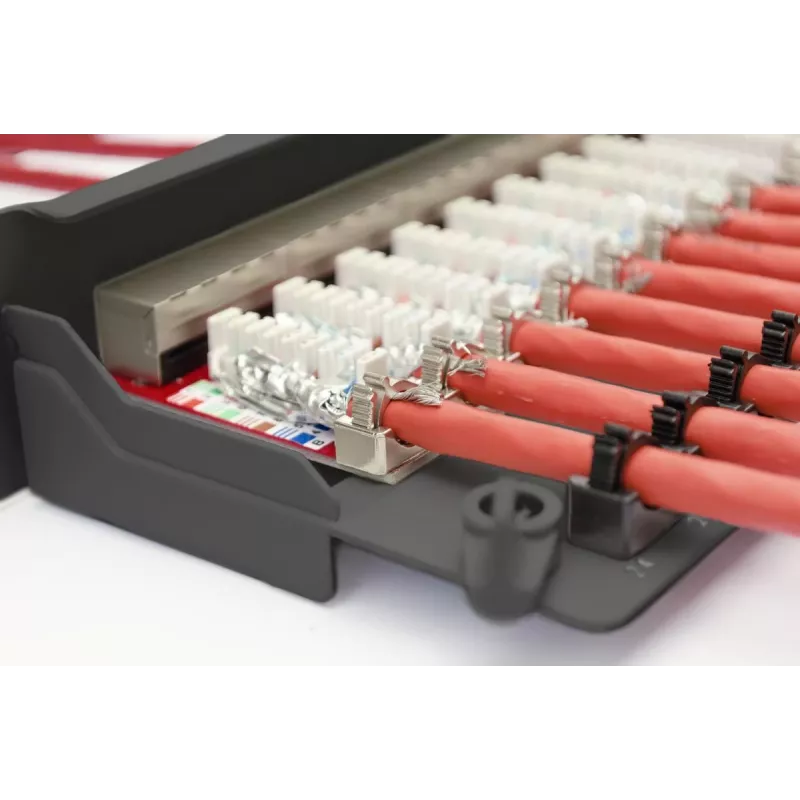

  • Cable termination: IDC-strips
  • Grounding: central grounding connector; metal-coated cable fixation for shield grounding
  • Dielectric strength: up to 1500 VDC (contact/ground)
  • PoE support: 802.3at (PoE+), 802.3af (PoE)
  • Mounting: 19" rack
  • Additional: dust protection shutters

How to use

Mount the patch panel in a standard 19" rack and secure it with appropriate screws. Terminate network cables using the IDC-strips according to the color code and ensure the cable shield is connected to the metal-coated fixation. Connect the central grounding connector to the rack or building ground to establish a continuous shield ground. Verify connections and test links before placing the assembly into production.

Recommendations

For optimal performance, use CAT 6A shielded cables and maintain consistent grounding throughout the rack. Regularly inspect the dust protection shutters and clean contacts if necessary. Follow PoE power budgets and equipment specifications when deploying powered devices.

Tärkeimmät ominaisuudet
  • Transmission characteristics: Category 6A, class EA
  • Application areas: Up to 500 MHz, 10GBase-T
  • Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for 483 mm (19") rack mounting
  • RJ45 sockets, 8P8C
  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable fixing by means of quick latches
  • Central earthing connection
  • 360° shield contacting
  • Mechanical properties:
  • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting clamp: Krone LSA+, UL 94V-0, galvanized phosphor bronze
  • Earthing wire: Not included in the scope of delivery
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors"
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Tekniset tiedot

Tekniset tiedot
Alkuperämaa
China
Asennus
Räkkikiinnitys
Harmonized System (HS) -koodi
85371098
Käyttölämpötila (T-T)
-20 - 70 °C
Korkeus
44 mm
Leveys
482.6 mm
Liitännät
RJ-45
Materiaali
Teräs
Pakkauksen leveys
483 mm
Pakkauksen paino
1.69 kg
Pakkauksen syvyys
110 mm
Pakkauksen tilavuus
2390.85 cm³
Pölysuojatulppa
Kyllä
Porttien määrä
24
Rack-kapasiteetti
1U
Syvyys
109 mm
Tuetut kaapelityypit
Cat6a
Tuotteen väri
Musta
UK-tullitariffikoodi
85369010
