DIGITUS seinäasennuskaappi 254 mm (10") 6U harmaa (RAL 7035) lasiovi

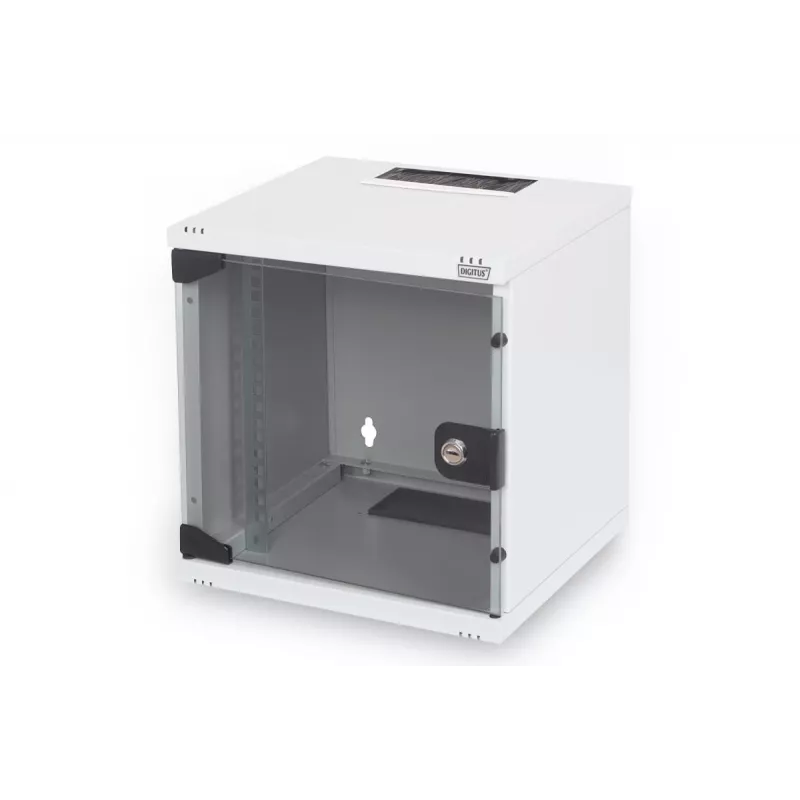

The DIGITUS wall-mounted enclosure DN-10-05U-1 is a compact 6U network cabinet designed for installations with limited space. Constructed from up to 1.5 mm sheet steel and finished with an electrostatic powder coat in grey (RAL 7035), this IP20-rated housing includes a lockable safety glass door, depth-adjustable 254 mm (10") profile rails and cable entry brushes in the top and bottom. The assembled delivery and removable design allow for quick installation and optional full disassembly.

Advantages

The enclosure offers a small footprint (312 x 300 mm WxD), a load capacity of 30 kg for installed components and flexible cable routing through protected openings in the roof and floor. Depth-adjustable, galvanized 254 mm (10") profile rails are labelled with clear height units. The door opens to 200° and hinges can be changed if required.

Suitable for

• Small office or home network installations
• Wall-mounted sub-distribution in confined spaces
• Mounting of 10" networking equipment up to 6U

Key specifications

• Model: DN-10-05U-1
• Rack capacity: 6U
• Dimensions (WxD): 312 x 300 mm
• Height: 310 mm
• Depth-adjustable profile rails: 254 mm (10")
• Maximum load capacity: 30 kg
• IP rating: IP20
• Colour: Grey (RAL 7035)

How to use

Mount the cabinet securely to a suitable solid wall using appropriate fasteners for the wall material. Route cables through the protected cable entry brushes located at the top and bottom, and adjust the galvanized 254 mm (10") profile rails to the required depth before fitting 10" equipment up to 6U. Lock the safety glass door after installation to secure the components.

Recommendations

Install only within environments that meet the IP20 protection level (indoor, dry, free of heavy dust and liquids). Do not exceed the specified 30 kg load capacity and use appropriate mounting hardware for the wall type to ensure safe and stable installation.
