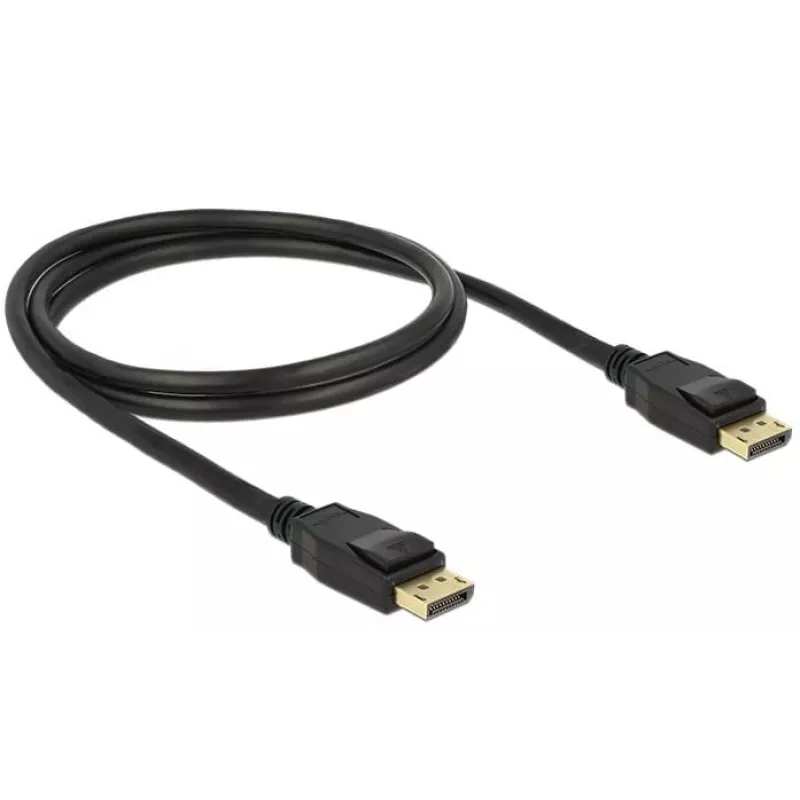

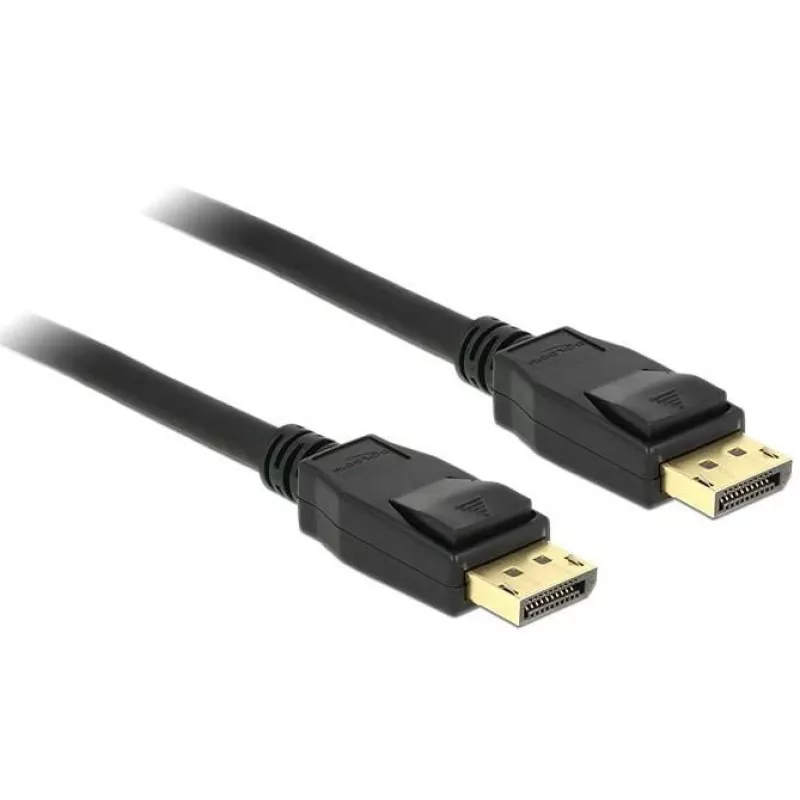

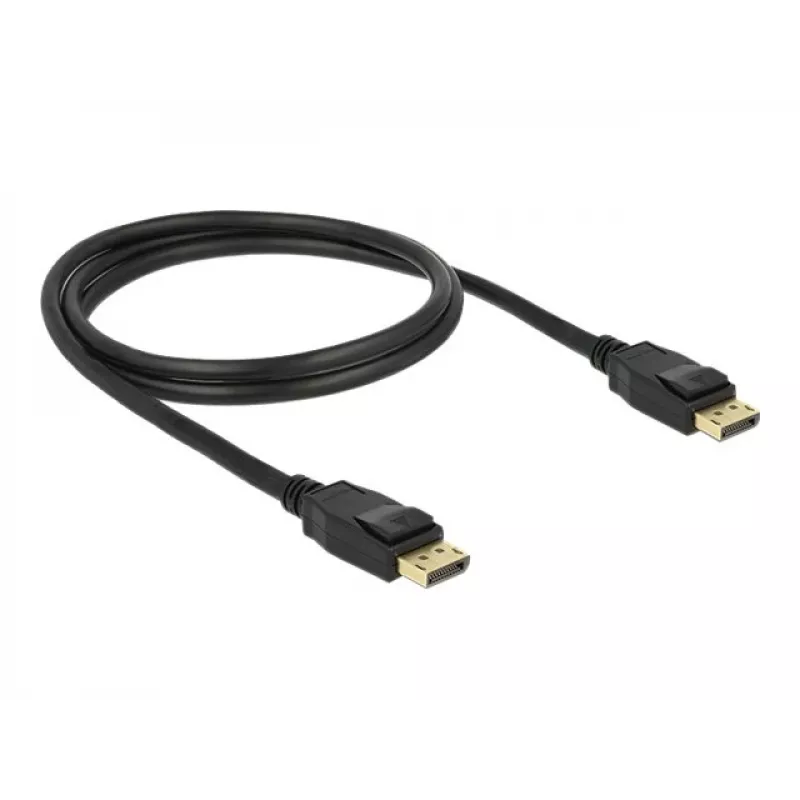

DisplayPort-kaapeli DeLOCK 1 m 83805

This DisplayPort cable connects devices with a DisplayPort interface, such as monitors or TVs, to a PC or laptop. It follows the DisplayPort 1.2 specification and supports transmission of both video and audio signals with a data rate up to 21.6 Gb/s. The cable is approximately 1 m long (including connectors) and comes in black with gold-plated plugs and triple shielding for improved signal quality.

Advantages

The cable uses copper conductors and 28 AWG wiring for reliable signal transmission. Triple shielding and gold-plated connectors reduce interference and contact resistance. It supports resolutions up to 3840 x 2160 at 60 Hz (depending on the system and connected hardware), and is compatible with any device that has a free DisplayPort interface.

Key specifications

• Connector: DisplayPort 20-pin male — DisplayPort 20-pin male
• Specification: DisplayPort 1.2
• Pin 20: not connected
• Cable gauge: 28 AWG
• Cable diameter: approx. 7.3 mm
• Conductor: copper
• Shielding: triple shielded
• Connector plating: gold-plated
• Data transfer rate: up to 21.6 Gb/s
• Maximum resolution: up to 3840 x 2160 @ 60 Hz (dependent on system and hardware)
• Colour: black
• Length (including connectors): approx. 1 m

How to use

Insert one DisplayPort male connector into the DisplayPort output of your PC or laptop and the other into the DisplayPort input of the monitor or TV. Ensure both devices are powered on and set the display input to the corresponding DisplayPort source. Adjust resolution and refresh rate in the operating system display settings if necessary.

Recommendations

For optimal performance, use the cable with devices that support DisplayPort 1.2 and set the display resolution and refresh rate according to the capabilities of your monitor and graphics hardware. Avoid sharp bends near the connectors and keep the cable away from strong electromagnetic sources.
