DisplayPort-sukupuolenmuunnin InLine 17291H harmaa musta kultapinnoitettu

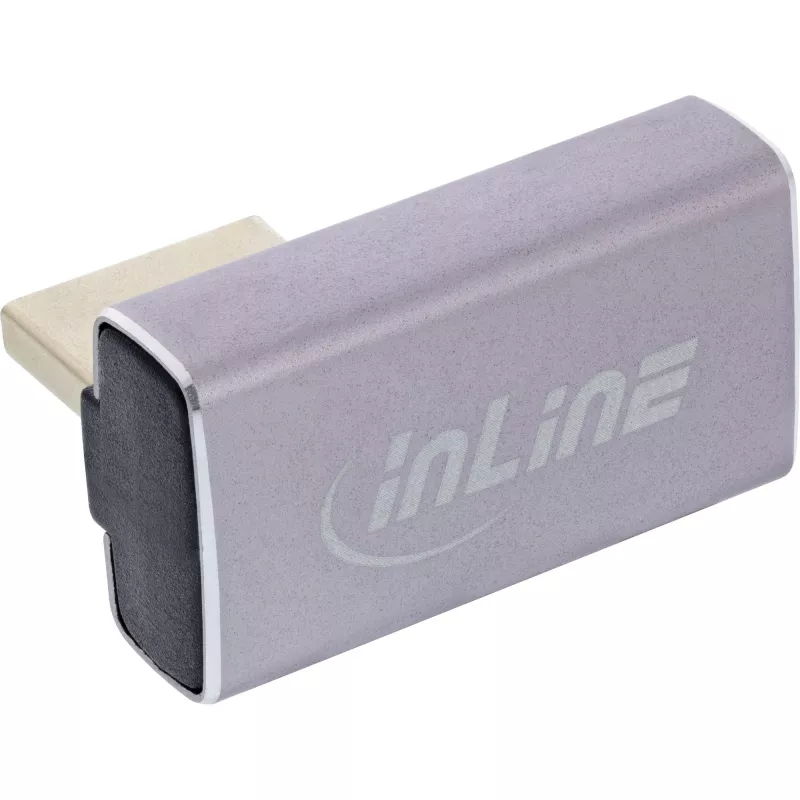

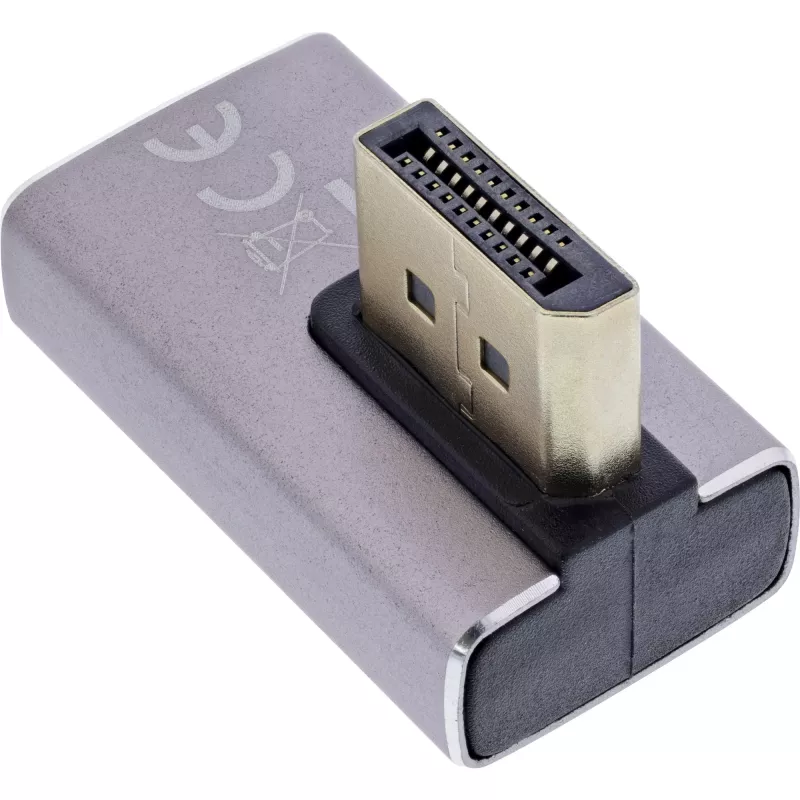

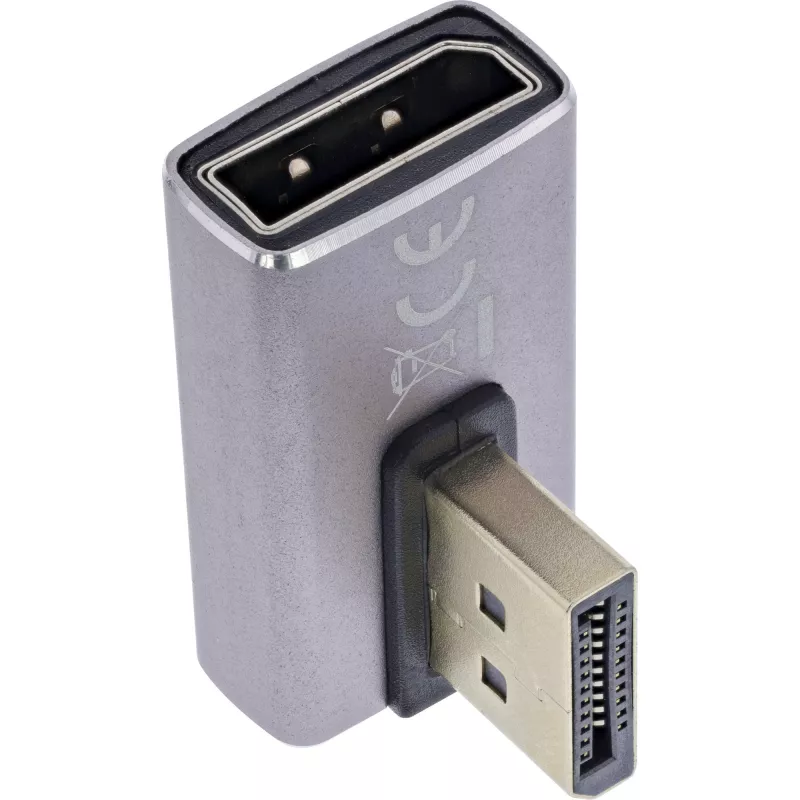

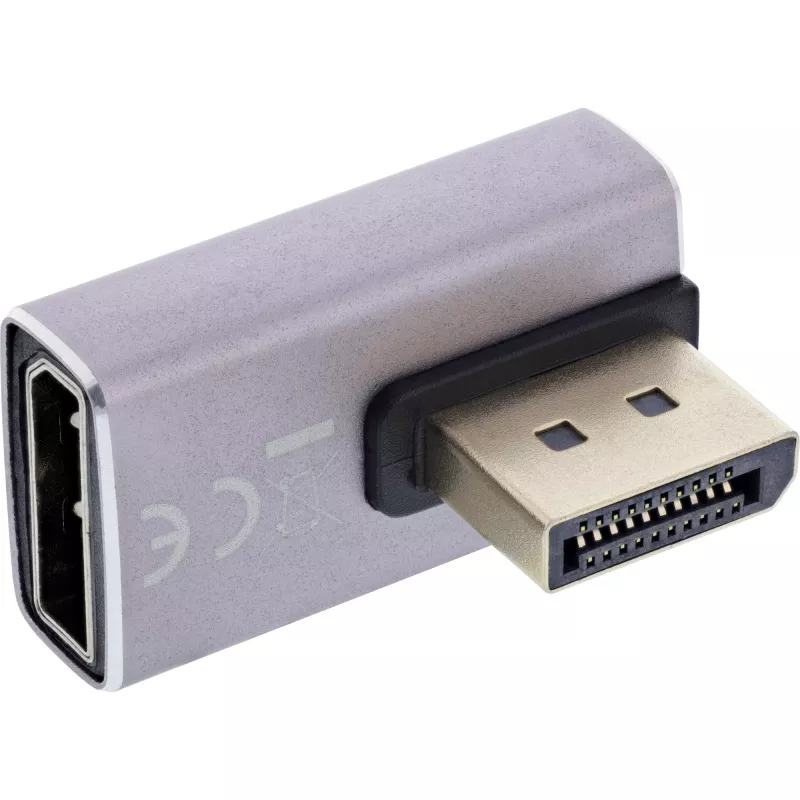

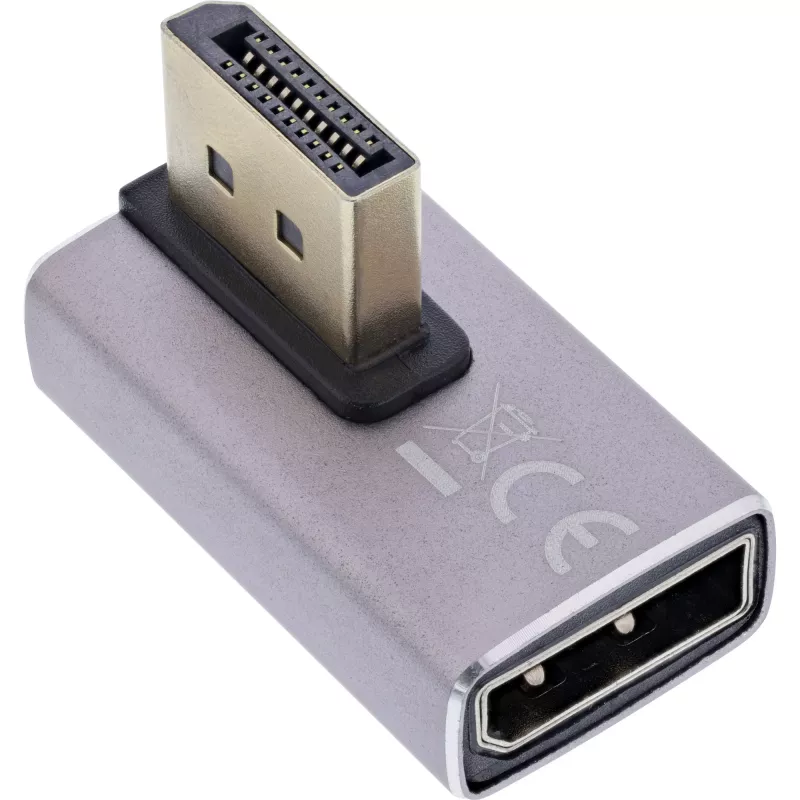

The InLine DisplayPort 1.4 adapter (DisplayPort male to DisplayPort female, 90° vertical right) provides a compact and reliable connection for high-resolution displays. Designed for professional use, the adapter supports DisplayPort 1.4 features and resolutions up to 8K UHD. The model 17291H has gold-plated contacts to ensure stable signal transmission and is finished in grey and black housing for compatibility with many setups.

Advantages

The adapter offers space-saving angled connection where rear clearance is limited and enables connecting two DisplayPort cables without modifying existing cables. Gold-plated contacts improve conductivity and reduce corrosion risk, while the robust construction supports repeated plug cycles for long-term use.

Suitable for

• Connecting a DisplayPort cable to a recessed or tight connector on a monitor or graphics card
• Joining two DisplayPort cables to extend reach
• Professional workstations, editing suites and high-resolution display setups requiring 8K support

Key specifications

• Model: InLine 17291H
• Connector A: DisplayPort (male)
• Connector B: DisplayPort (female)
• Orientation: 90° vertical right
• Standard: DisplayPort 1.4, supports up to 8K UHD
• Contacts: Gold plated
• Colour: Grey, Black
• Weight: 0.016 kg

How to use

Plug the male DisplayPort end of the adapter into the DisplayPort socket on your device (graphics card or monitor) with the angled side oriented to the right. Then connect a DisplayPort cable to the female end of the adapter. Ensure connectors are fully seated and secure before powering connected devices. Use the adapter to join two DisplayPort cables by inserting each cable into the respective connector.

Recommendations

For optimal performance, use high-quality DisplayPort 1.4 cables and avoid excessive bending near the connector. Inspect gold-plated contacts periodically and keep the adapter in a dry, dust-free environment when not in use.
