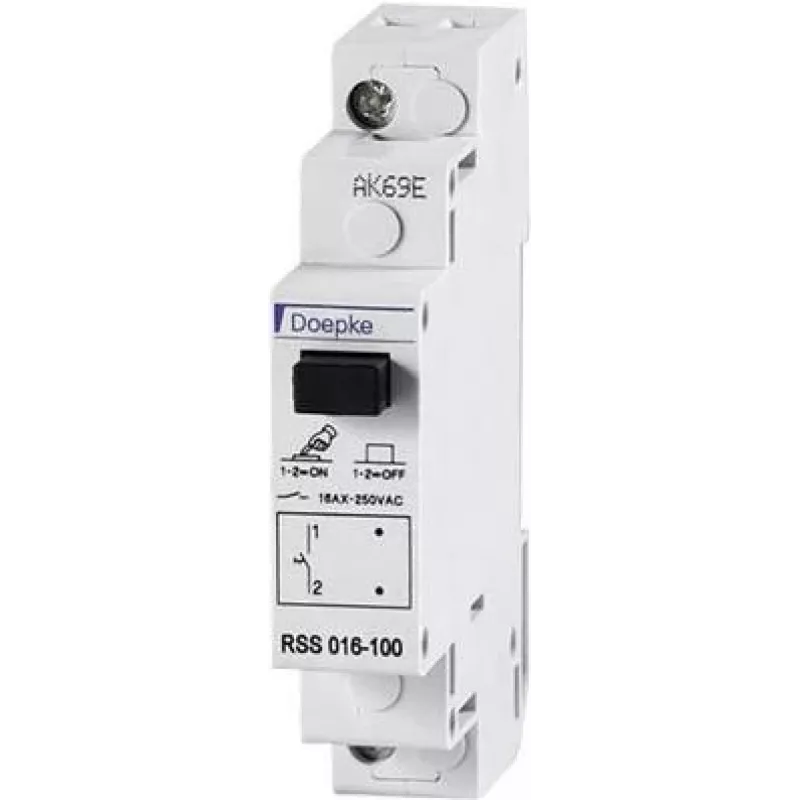

DOEPKE ohjauskytkin 16A RSS016-100 1-napainen 1 NO 09981070

The DOEPKE RSS016-100 is a 1-pole control switch with a 1 normally open contact, rated for 16 A. Its compact 1-module DIN rail design saves space in distribution boards, while the toggle lever provides clear manual on/off control. Screw terminals accept solid conductors up to 16 mm² and flexible up to 10 mm², ensuring secure connections. With an electrical endurance of 10,000 cycles and mechanical endurance of 100,000 cycles, it is built for long-term reliability in switching applications.

Highlights

• 16 A rated current, 250 V AC operational voltage
• 1-pole, 1 NO contact configuration
• DIN rail mounting, 1 module width
• Toggle lever actuator
• Screw terminals for solid and flexible conductors

Full specifications

• Rated current: 16 A
• Number of poles: 1
• Contact configuration: 1 NO
• Rated operational voltage: 250 V AC
• Mounting type: DIN rail (EN 60715)
• Modular width: 1 TE
• Connection type: Screw terminals
• Terminal capacity (solid wire): 1.5 - 16 mm²
• Terminal capacity (flexible wire): 1.5 - 10 mm²
• Degree of protection (front): IP40
• Degree of protection (terminals): IP20
• Operating temperature range: -25 to +55 °C
• Storage temperature range: -40 to +70 °C
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 100,000 cycles

Final note

Ideal for manual control of lighting, heating, or other loads in residential and commercial installations.
