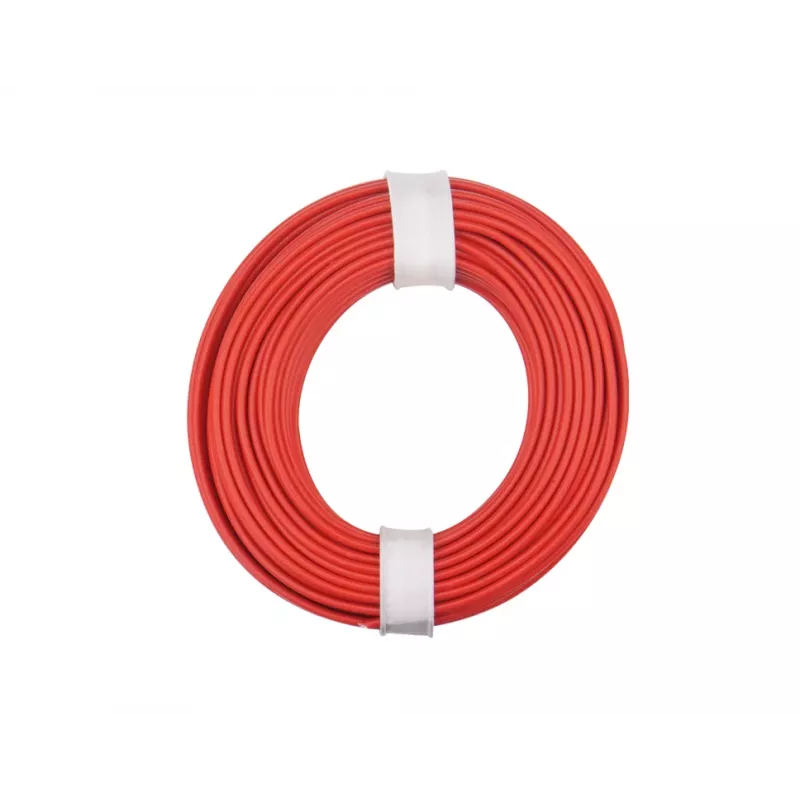

Donau Elektronik 175-010 LiY johdin 1 x 0,75 mm² punainen 1 kpl

For installations demanding a flexible, fine-stranded conductor with reliable PVC insulation, this Donau Elektronik 175-010 LiY wire stands apart from ordinary hook-up wire. Its Class 5 conductor construction according to IEC 60228 allows tight bending radii without compromising current-carrying capacity, making it a practical choice for control cabinets, appliance wiring, and signal circuits where vibration or movement is expected.

Highlights

• Fine-stranded bare copper conductor (0.75 mm²) for excellent flexibility
• PVC insulation rated for 300/500 V nominal voltage
• Flame retardant according to IEC 60332-1-2
• RoHS compliant and manufactured to VDE 0281 Part 3 / HD 21.3 S3
• Supplied as a single red wire, ready for immediate use

In daily use

The LiY construction is particularly suited to low-voltage signal and control applications. With a maximum conductor resistance of just 26 Ω/km at 20°C, it ensures minimal voltage drop over short to medium runs. The red PVC jacket provides clear polarity identification and resists abrasion, oils, and many common chemicals. Whether you are wiring a prototype, repairing an appliance, or building a custom harness, this wire handles repeated flexing without fatigue.

Full specifications

• Wire type: Stranded wire (LiY)
• Number of cores: 1
• Conductor cross-section: 0.75 mm²
• Conductor material: Bare copper, fine-stranded (Class 5 / IEC 60228)
• Insulation: PVC (Polyvinyl Chloride)
• Wire colour: Red
• Nominal voltage (U0/U): 300/500 V
• Operating temperature (fixed installation): -5°C to +70°C
• Operating temperature (flexible use): +5°C to +70°C
• Approx. outer diameter: 2.4 mm
• Max. conductor resistance: 26 Ω/km at 20°C
• Standard: VDE 0281 Part 3 / HD 21.3 S3 (LiY)
• Flammability: Flame retardant according to IEC 60332-1-2
• RoHS compliance: Yes

Final note

With its fine-stranded copper core and robust PVC insulation, this Donau Elektronik LiY wire delivers dependable performance for a wide range of low-voltage wiring tasks. Its compliance with European standards and flame-retardant properties make it a safe, long-lasting choice for professional and hobbyist projects alike.
