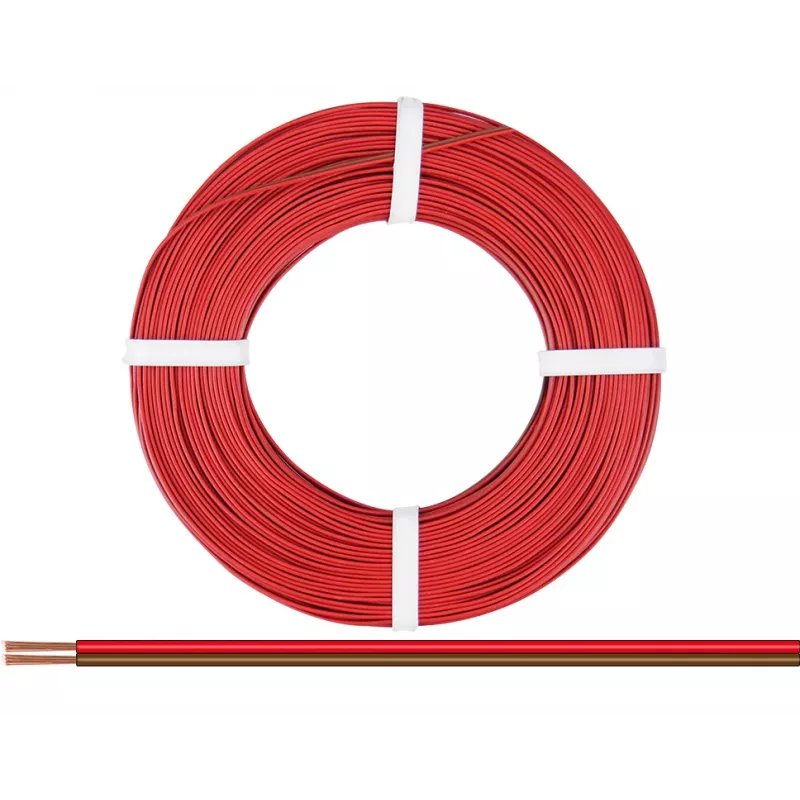

Donau Elektronik 218-08-25 johdin 2 x 0,14 mm² punainen, ruskea 25 m

For hobbyists and electronics technicians wiring low-voltage projects, this 25-meter spool of fine-stranded copper wire provides a dependable two-conductor solution in red and brown insulation. Whether you are assembling model railway layouts, prototyping circuits on a breadboard, or repairing small appliances, the flexible PVC jacket and 0.14 mm² cross-section make routing and soldering straightforward.

Key specifications

• Conductor count: 2
• Cross-sectional area per conductor: 0.14 mm²
• Length: 25 m
• Insulation colours: red, brown
• Conductor material: copper, fine-stranded (Class 5)
• Insulation material: PVC
• Nominal voltage: 300 V
• Operating temperature: -20 °C to +70 °C
• Outer diameter: approx. 2.8 mm
• Conductor resistance: approx. 130 Ohm/km
• Maximum current: approx. 1.5 A
• RoHS compliant

Why choose it

The fine-stranded copper construction offers excellent flexibility, reducing the risk of breakage during repeated bending or tight installations. The colour-coded red and brown insulation allows quick polarity identification, saving time during assembly and troubleshooting. With a generous 25-meter length, this spool covers multiple small projects without frequent reordering.

Ideal use cases

• Model making and railway electronics
• Low-voltage hobby circuits and Arduino projects
• Internal wiring for small appliances and LED lighting
• Educational electronics labs and prototyping

Good to know

The wire is supplied on a spool for tangle-free storage and easy dispensing. PVC insulation provides good resistance to abrasion and common chemicals, while the 300 V rating suits most low-voltage DC and AC applications. For best results, strip insulation carefully to avoid nicking the fine strands, and use appropriate connectors or solder joints.
