DRAKA koaksiaalikaapeli 1,0/4,65 75 Ohm 200m valkoinen >100dB PE 60016703

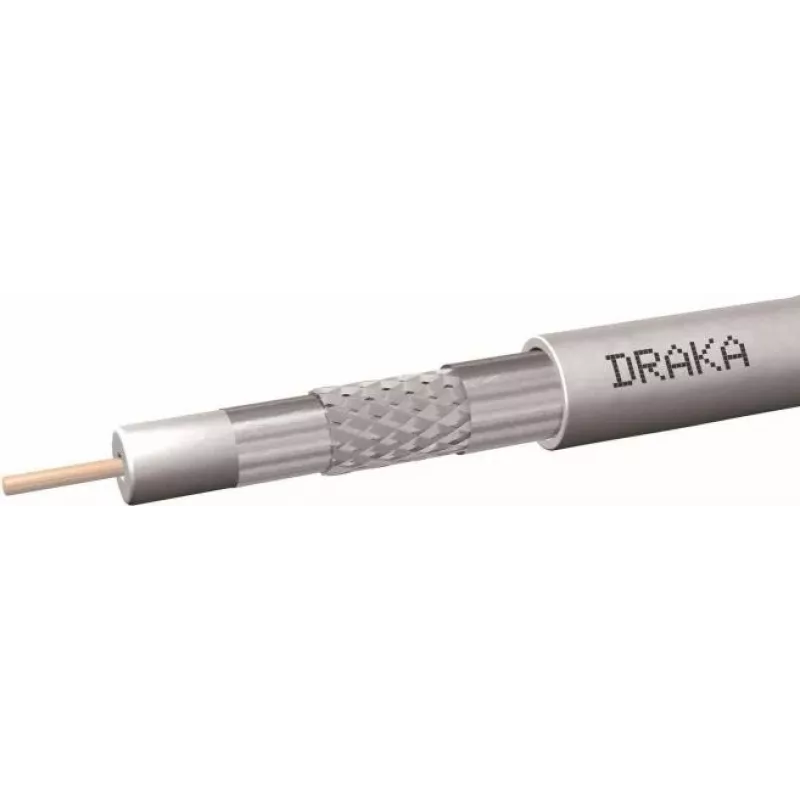

Coaxial cable with a 1.0 mm inner conductor and 4.65 mm outer diameter, supplied in a 200 m dispenser box. The double shielding (aluminium foil plus copper braid) provides shielding effectiveness above 100 dB, making it suitable for satellite and cable TV distribution.

Advantages

High shielding effectiveness (>100 dB) ensures reliable signal integrity even in environments with strong electromagnetic interference. The white PE jacket is UV resistant, allowing outdoor installation without additional protection. The dispenser box enables convenient pull-out installation and prevents tangling.

Suitable for

• DVB-S, DVB-T and DVB-C signal distribution
• Radio and TV antenna systems
• Indoor and outdoor coaxial runs

Key specifications

• Impedance: 75 Ohm
• Inner conductor: 1.0 mm copper
• Dielectric: PE (polyethylene)
• Shielding: double (aluminium foil + copper braid), >100 dB
• Attenuation: 8.5 dB/100 m @ 100 MHz, 19.5 dB/100 m @ 860 MHz, 32.5 dB/100 m @ 2150 MHz
• Return loss: >25 dB (5-30 MHz), >23 dB (30-1000 MHz), >20 dB (1000-2200 MHz)

Recommendations

For professional installations requiring low signal loss and high interference immunity, this cable offers a reliable solution. Pair with F-type compression connectors for best results.
