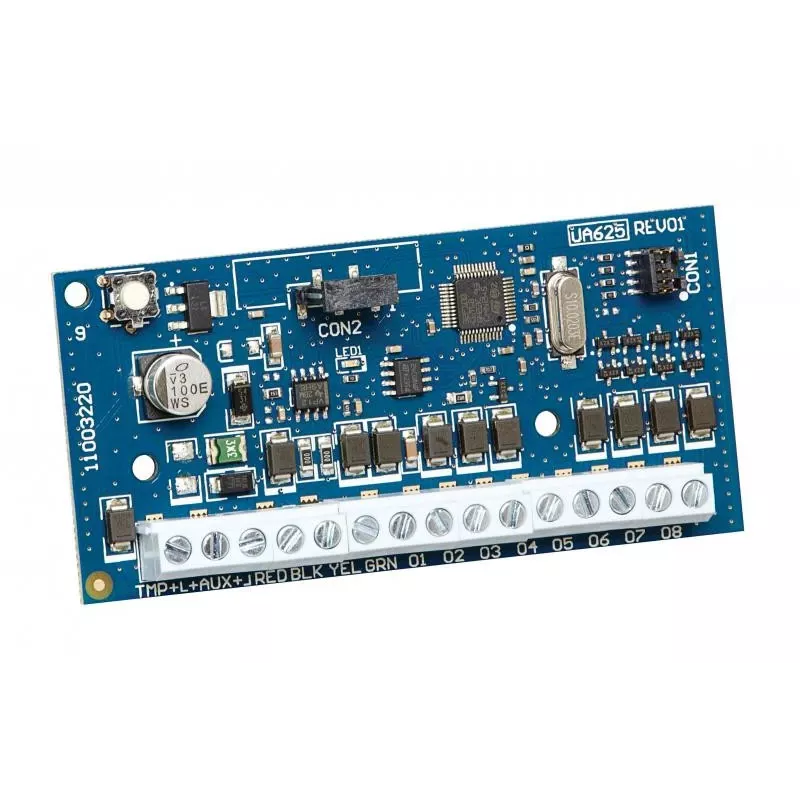

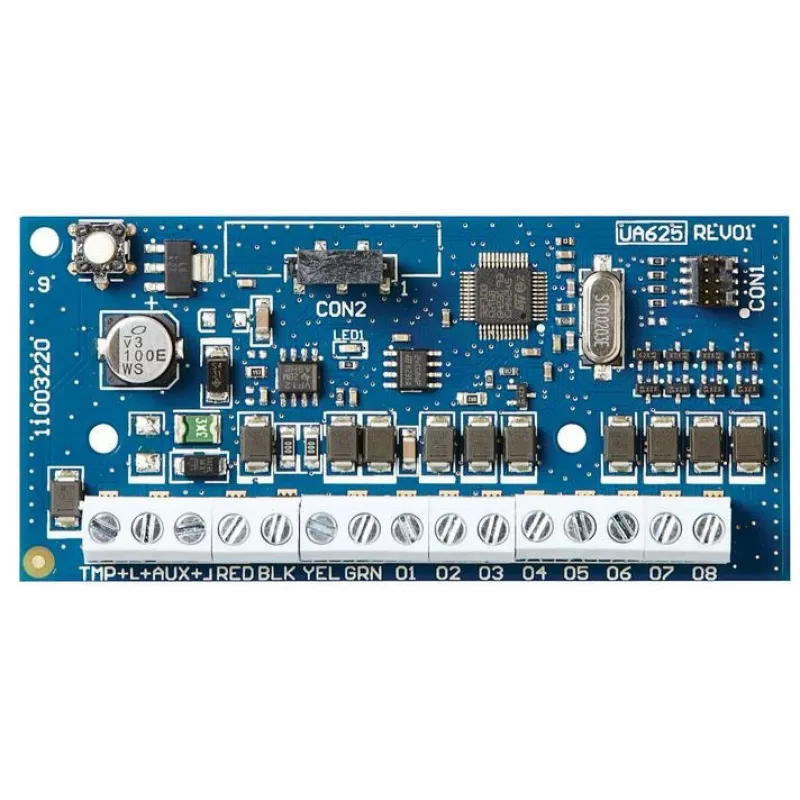

DSC HSM2208 NEO 8 lähdön moduulilaajennus, pienivirtaiset lähdöt

The DSC HSM2208 is an 8-output expansion module designed for the PowerSeries Neo alarm control panels. It adds eight programmable low-current outputs (PGMs) to expand system capabilities for activating relays, strobes, sirens, door strikes, and other low-current devices. The module communicates via the Corbus and is supervised for fault detection, ensuring reliable operation.

Advantages

Easily expand your DSC PowerSeries Neo system with eight additional programmable outputs. The module is compact, mounts inside the control panel enclosure or separately, and features a power/status LED for quick diagnostics. Corbus supervision provides fault detection for enhanced security.

Suitable for

• Security system installers needing additional low-current outputs
• Integration with DSC PowerSeries Neo control panels (HS2016, HS2032, HS2064, HS2128)
• Activating relays, strobes, sirens, door strikes, and other low-current devices

Key specifications

• Product Type: Output Expansion Module
• Compatibility: DSC PowerSeries Neo Control Panels (HS2016, HS2032, HS2064, HS2128)
• Number of Outputs: 8
• Output Type: Programmable Low Current Outputs (PGMs)
• Output Current Rating (per PGM): 50 mA max
• Total Output Current (all PGMs): 100 mA max
• Input Voltage: 12 VDC (from Corbus)
• Current Draw (Standby): 20 mA
• Current Draw (Maximum): 100 mA
• Communication Bus: Corbus (4-wire)
• Mounting: Cabinet Mount (inside control panel enclosure or separate)
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 5% to 93% RH non-condensing
• Enclosure Material: Plastic
• Indicators: Power/Status LED
• Application: Activating relays, strobes, sirens, door strikes, and other low-current devices
• Supervision: Corbus supervision for fault detection

Recommendations

For optimal performance, use with DSC PowerSeries Neo control panels and ensure proper Corbus wiring. The module is ideal for expanding output capacity in residential and commercial security systems.
