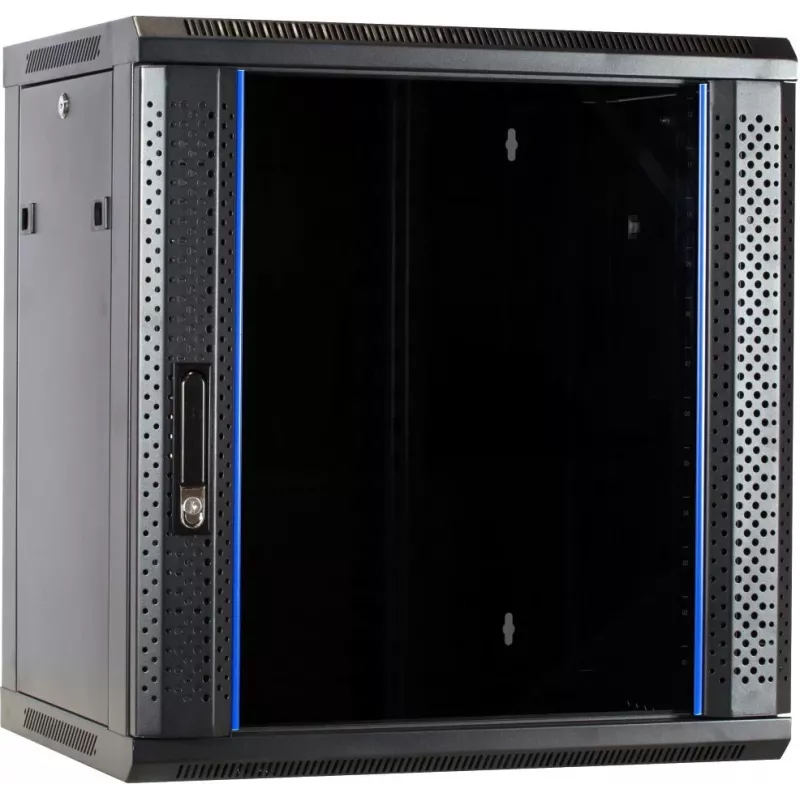

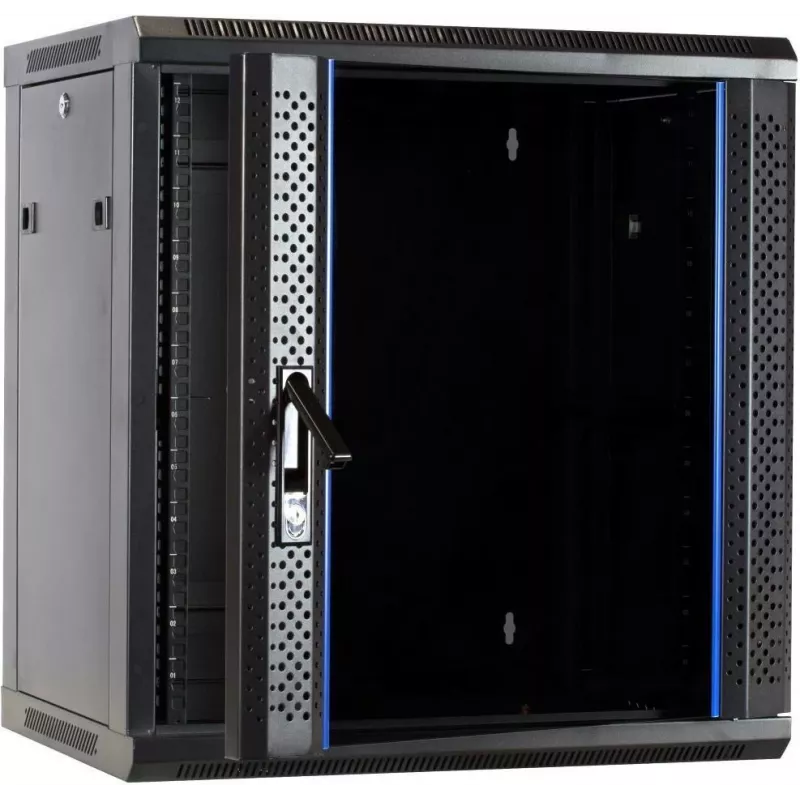

DSIT 12U seinäasennettava palvelinkaappi lasiovella 600x450x634 mm

Wall-mount server cabinet with a 12U capacity and a tempered glass front door, engineered for secure and space-efficient installation of 19-inch network and server equipment. The 600 mm width and 450 mm depth accommodate standard rack-mount devices while keeping a compact footprint, ideal for offices, retail back rooms, or industrial environments where floor space is limited. The lockable glass door provides visual monitoring of equipment status without compromising security, and the robust steel frame supports up to 60 kg of load.

Advantages

The DS6412 combines a durable steel construction with a powder-coated finish (RAL 9005 black) for long-lasting protection against wear and corrosion. Its pre-assembled design reduces setup time, and the removable side panels allow easy access during installation and maintenance. The adjustable mounting rails support various equipment depths, and the top and bottom cable entry points with perforated panels ensure passive ventilation and tidy cable management. The key-lockable front door adds a layer of physical security, while the IP20 rating suits indoor use.

Suitable for

• Small to medium business networks requiring a secure, space-saving rack solution
• Edge computing and IoT deployments in branch offices or retail locations
• AV and security installations where equipment needs to be visible but protected
• Industrial control systems in workshops or production areas

Key specifications

• Rack capacity: 12U (19-inch standard)
• External dimensions: 600 mm (W) x 450 mm (D) x 634 mm (H)
• Maximum load capacity: 60 kg
• Material: Steel with powder-coated finish (black, RAL 9005)
• Front door: Tempered glass with key lock

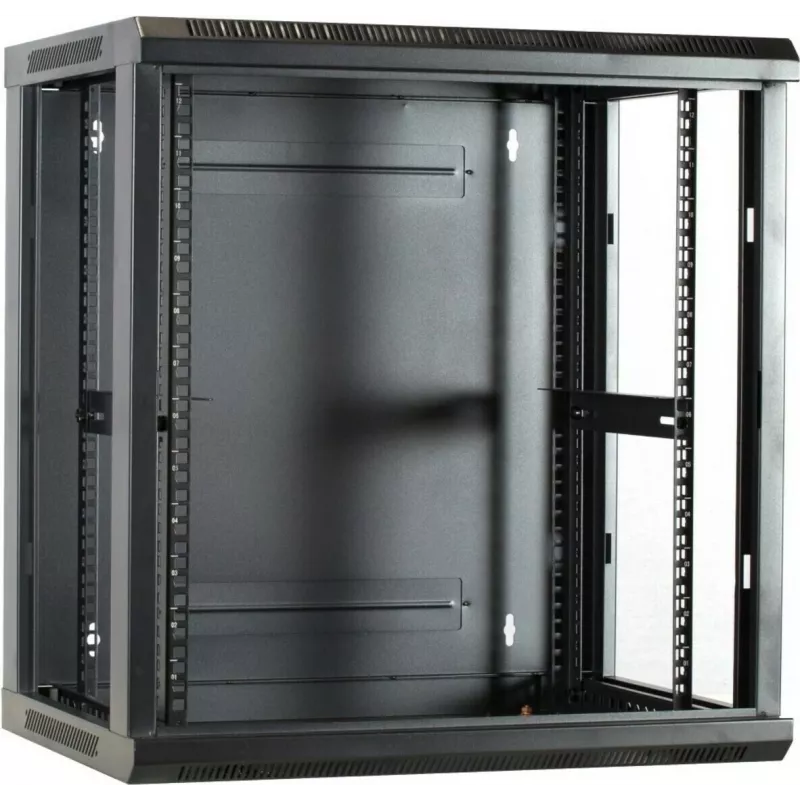

• Side panels: Removable
• Cable entry: Top and bottom
• Ventilation: Passive (perforated top/bottom)
• Protection rating: IP20
• Assembly: Pre-assembled

Recommendations

For optimal performance, mount the cabinet on a solid wall using appropriate anchors and ensure adequate clearance around the cabinet for airflow and cable access. Use cage nuts and screws (not included) to install equipment, and organize cables with Velcro straps to maintain proper ventilation. Periodically check the lock mechanism and clean the glass door with a soft cloth.
