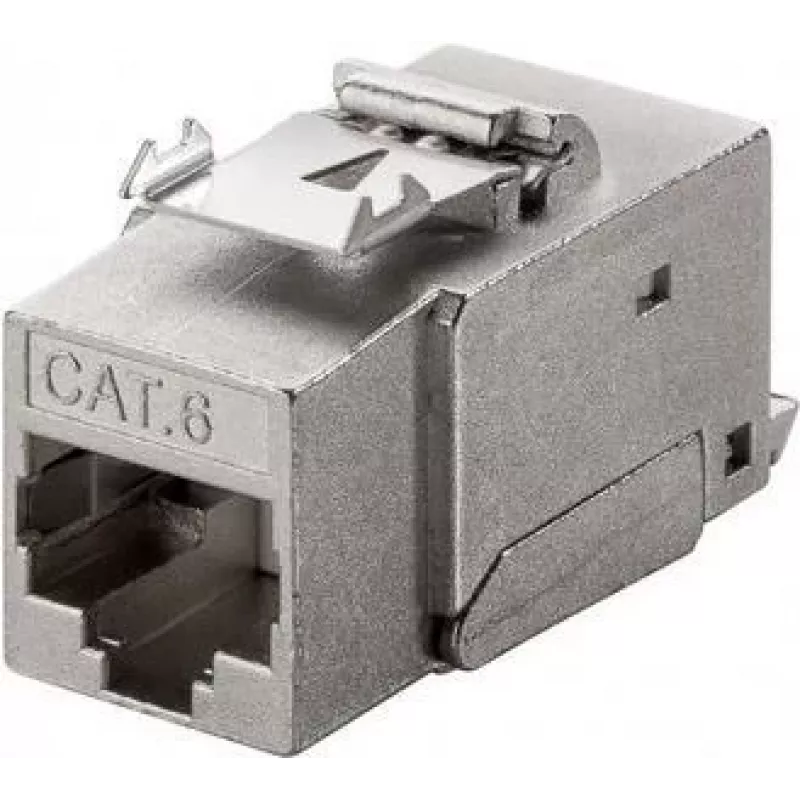

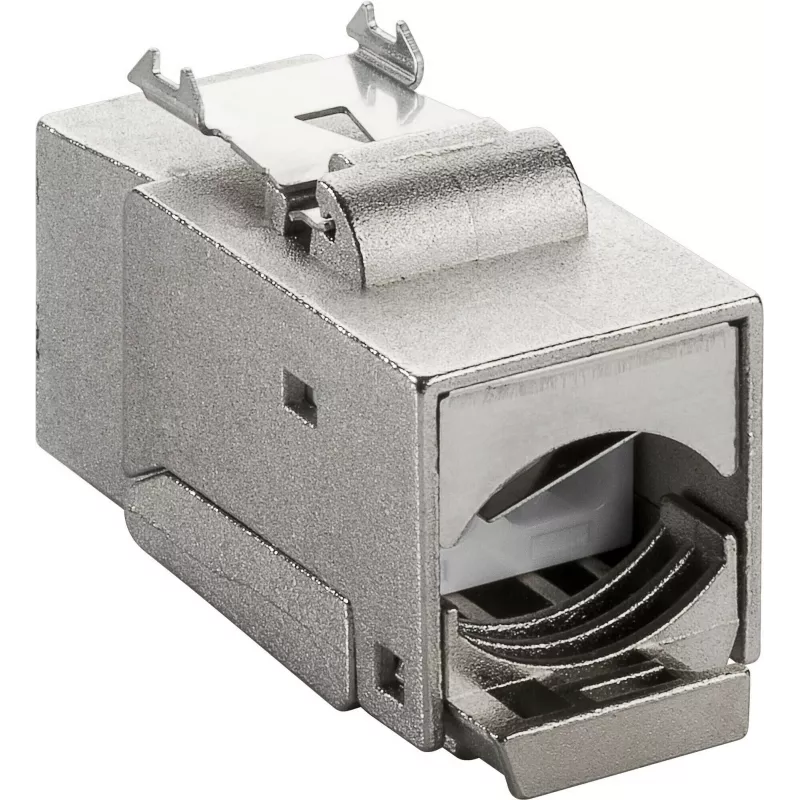

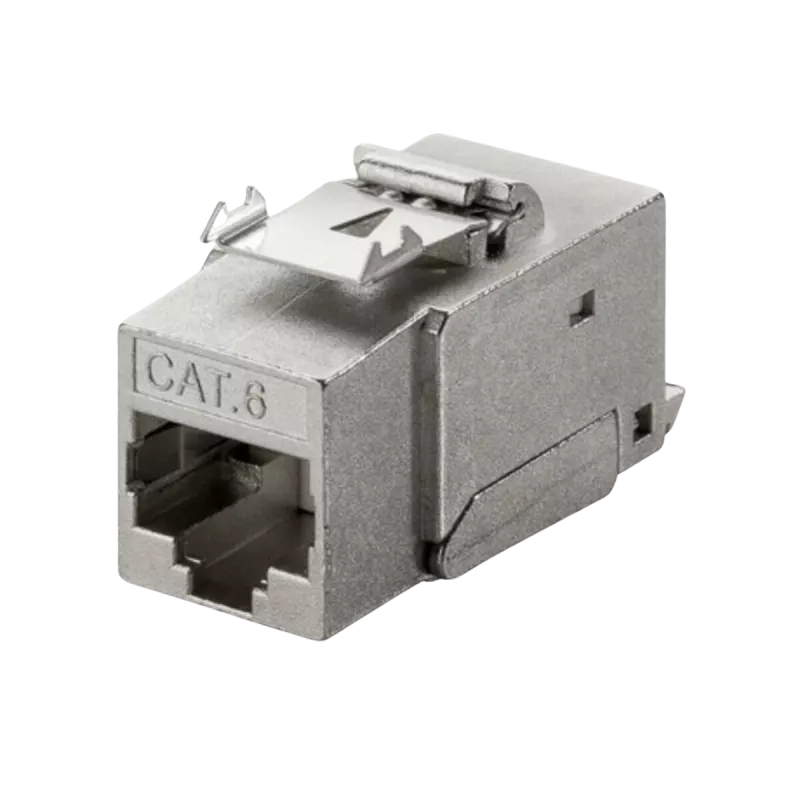

DS-IT CAT6 STP Keystone Jack työkaluton RJ45-moduuli

Setting up a reliable network often means wrestling with punch-down tools and hoping the connection holds. The DSIT DS-IT CAT6 STP Keystone Jack eliminates that hassle with a toolless termination design that lets you snap conductors into place by hand—no special tools required. This shielded RJ45 module delivers full CAT6 performance up to 250 MHz, making it ideal for Gigabit Ethernet and beyond.

Who is it for

Network installers, IT technicians, and DIY enthusiasts who need a fast, dependable keystone jack for wall plates, patch panels, or surface mount boxes. It’s especially valuable in environments with electromagnetic interference, thanks to its STP shielding.

Main features

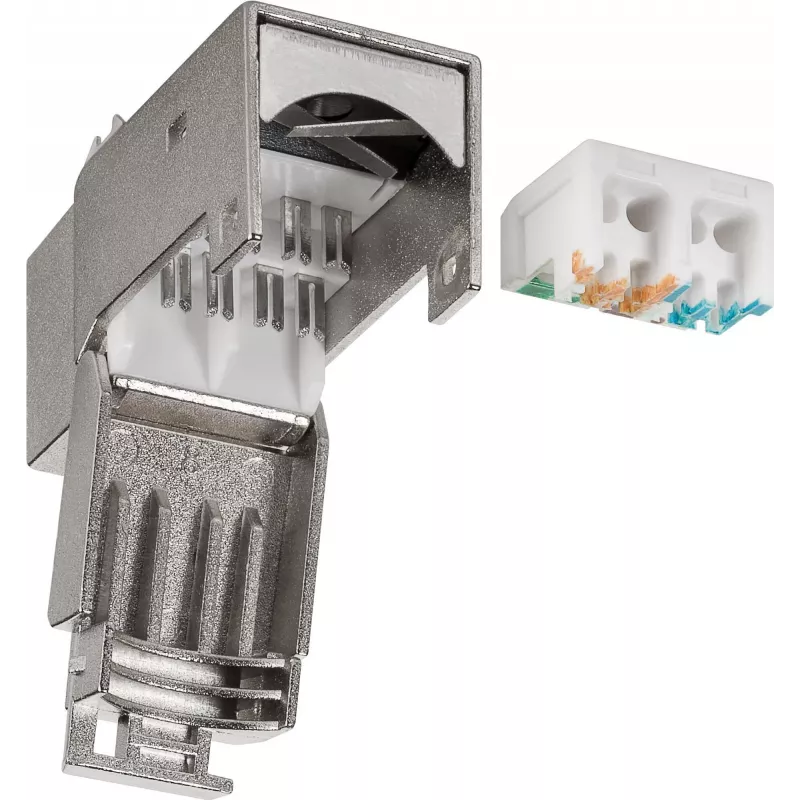

• Toolless IDC termination: simply press wires into the colour-coded slots and snap the cap shut—no punch-down tool needed.
• CAT6 performance: supports frequencies up to 250 MHz for reliable Gigabit Ethernet and PoE applications.
• STP shielding: full metal housing reduces crosstalk and EMI, ensuring stable connections in noisy environments.
• Dual wiring scheme: clearly marked for both T568A and T568B standards, reducing installation errors.
• Wide conductor compatibility: accepts 22-26 AWG solid or stranded copper wires.
• Durable construction: gold-plated contacts (50µm) and high-impact ABS housing rated UL 94V-0 for long service life.
• Universal fit: standard keystone footprint snaps into most wall plates, patch panels, and surface boxes.

Specifications

• Product type: Keystone jack
• Connector type: RJ45 (8P8C)
• Performance category: CAT6
• Shielding: STP (shielded twisted pair)
• Termination: Toolless IDC
• Wiring scheme: T568A/B dual-coded
• Conductor gauge: 22-26 AWG solid or stranded
• Contact plating: 50µm gold
• Housing material: High-impact ABS, UL 94V-0
• Standards: TIA/EIA 568-C.2, ISO/IEC 11801, EN 50173
• PoE support: IEEE 802.3af/at/bt
• Bandwidth: Up to 250 MHz
• Insertion cycles: >750
• Operating temperature: -10°C to 60°C
• Mounting type: Snap-in

Tips

For best performance, keep pair twists as close to the termination point as possible and avoid untwisting more than 13 mm. When using stranded conductors, ensure the wire is fully inserted before closing the cap to maintain a secure connection.
