Telegärtner SC/SC OM4 duplex-kuitukaapeli, 2 m, violetti L00881A0028

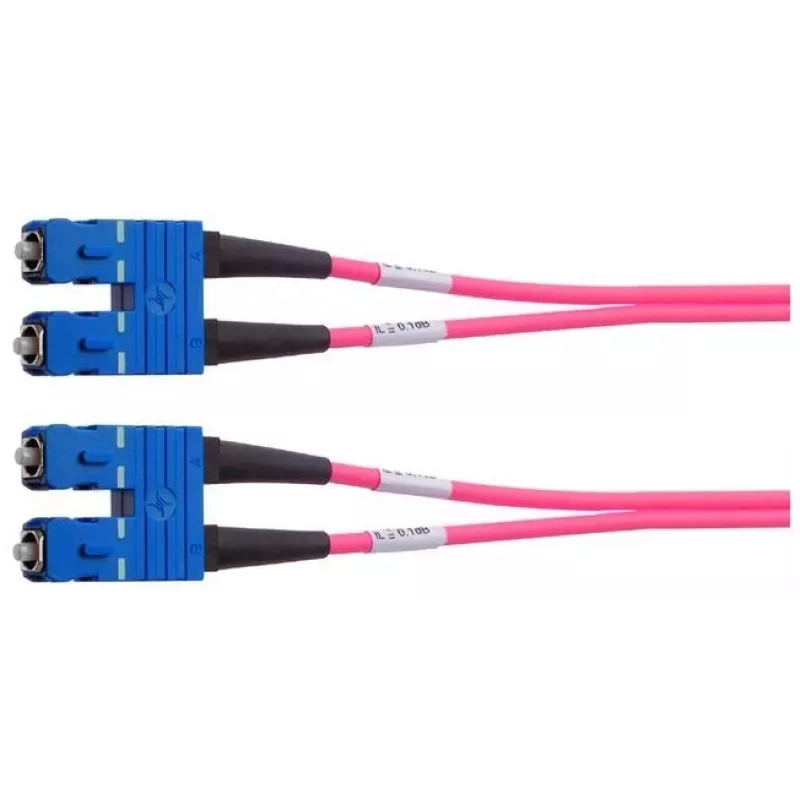

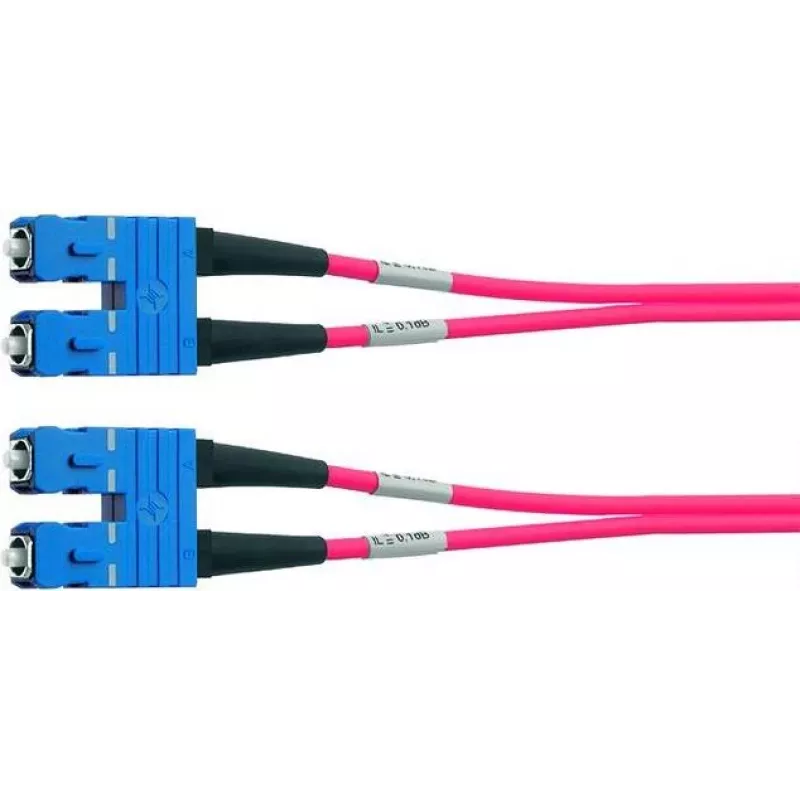

Telegärtner's L00881A0028 is a duplex OM4 multimode fibre patch cable terminated with SC connectors on both ends. Its 2-metre length and violet jacket make it easy to identify in high-density fibre installations, while the 50/125 µm core supports high-bandwidth applications up to 4700 MHz·km at 850 nm.

Highlights

• Duplex SC to SC connectors with PC polish for low insertion loss
• OM4 multimode fibre, 50/125 µm core/cladding diameter
• 2-metre length, ideal for patching between panels and equipment
• Violet jacket for quick identification of OM4 in the rack

In daily use

This patch cable is suited for data centres and enterprise networks where OM4 multimode fibre is deployed. The SC connectors provide a secure push-pull connection, and the duplex construction supports bidirectional communication over two fibres. The violet jacket is the industry-standard colour for OM4, reducing the risk of mixing fibre grades.

Full specifications

• Cable type: Fibre optic patch cable
• Fibre mode: Multimode
• Fibre class: OM4
• Connector 1: SC
• Connector 2: SC
• Connector polish: PC
• Cable length: 2 m
• Number of fibres: 2 (duplex)
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Jacket colour: Violet
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB
• Bandwidth (850 nm): 4700 MHz·km
• Bandwidth (1300 nm): 500 MHz·km

Final note

Telegärtner's precision-manufactured connectors ensure consistent performance and long-term reliability in demanding network environments.
