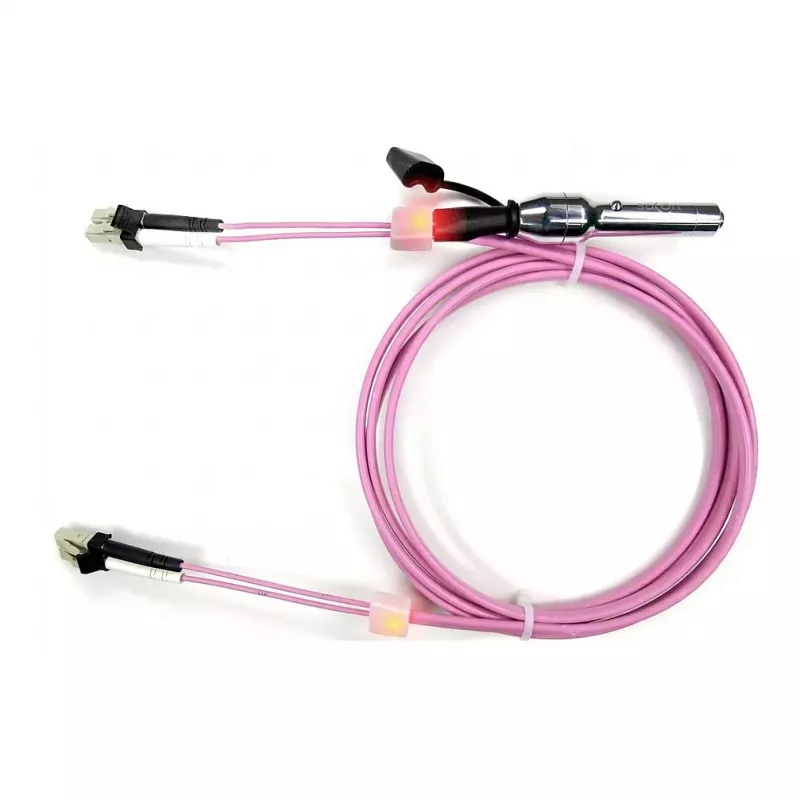

EasyLan saCon Duplex LED -verkkokaapeli OM4 Erika violetti 7,5m

The EasyLan saCon Duplex LED Patch Cable OM4 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With integrated LED indicators for easy port tracing, this duplex cable simplifies installation and maintenance in data centers, SANs, and LANs. The OM4 multimode fiber supports high-speed applications up to 100 Gbps, making it ideal for 10/40/100 Gigabit Ethernet networks.

Advantages

Integrated LED identification enables quick and easy port tracing, reducing installation time and minimizing errors. The non-latching connectors ensure secure connections without accidental disconnection. LSZH (Low Smoke Zero Halogen) jacket material enhances safety by reducing toxic fumes in case of fire.

Suitable for

• Data centers requiring high-density cabling
• Storage Area Networks (SANs)
• Local Area Networks (LANs) with 10/40/100 Gigabit Ethernet
• Applications needing reliable duplex fiber connections

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode (MM) OM4
• Connectors: LC Duplex with LED (both ends)
• Cable Length: 7.5 m
• Color: Heather Violet (Erika Violett)
• Core/Cladding: 50/125 µm
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH
• Bandwidth: 4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm
• Maximum Data Rate: 100 Gbps (up to 100m), 40 Gbps (up to 300m), 10 Gbps (up to 550m)
• Insertion Loss: < 0.3 dB per connector
• Return Loss: > 30 dB
• Operating Temperature: -20°C to +70°C
• Cable Diameter: 3.0 mm (Duplex)

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC duplex interfaces and supports high-speed data rates up to 100 Gbps. Ideal for structured cabling in enterprise networks.
