EATON CORPORATION Eaton EllIPSe Pro UPS 1-vaihe line-interactive torni 650va/400w DIN-lähtö

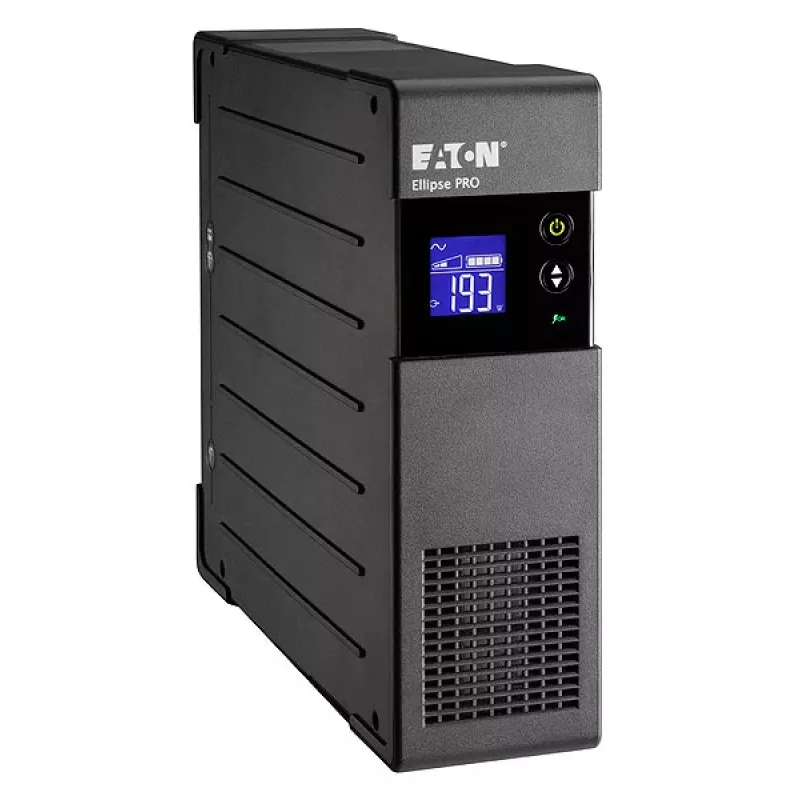

The Eaton Ellipse PRO 650 DIN is a line-interactive uninterruptible power supply designed to protect workstations running demanding applications. It provides automatic voltage regulation (buck and boost) for clean output, real-time status and measurements via an LCD display, and EcoControl power outlets that reduce energy consumption. The unit includes surge protection compliant with IEC 61643-1 and offers multiple AC outlets, a USB port and Eaton UPS Companion software for safe shutdown and configuration.

Advantages

The Ellipse PRO delivers clean output with AVR (buck and boost) and features Advanced Surge Reduction meeting IEC 61643-1. An LCD display shows real-time status and measurements. EcoControl outlets help reduce energy use by up to 20% compared to previous models. The compact, extra-flat design and multiple outlets allow easy installation and connection of a PC and peripherals. USB connectivity and Eaton UPS Companion software enable safe system shutdown, energy metering and UPS configuration.

Suitable for

• Protecting desktop PCs and workstations running demanding applications
• Small office or home office setups with multiple peripherals
• Environments requiring surge protection for data and telephone lines

Key specifications

• Model: Eaton Ellipse PRO 650 DIN (ELP650DIN)
• Output power: 400 W (0.65 kVA)

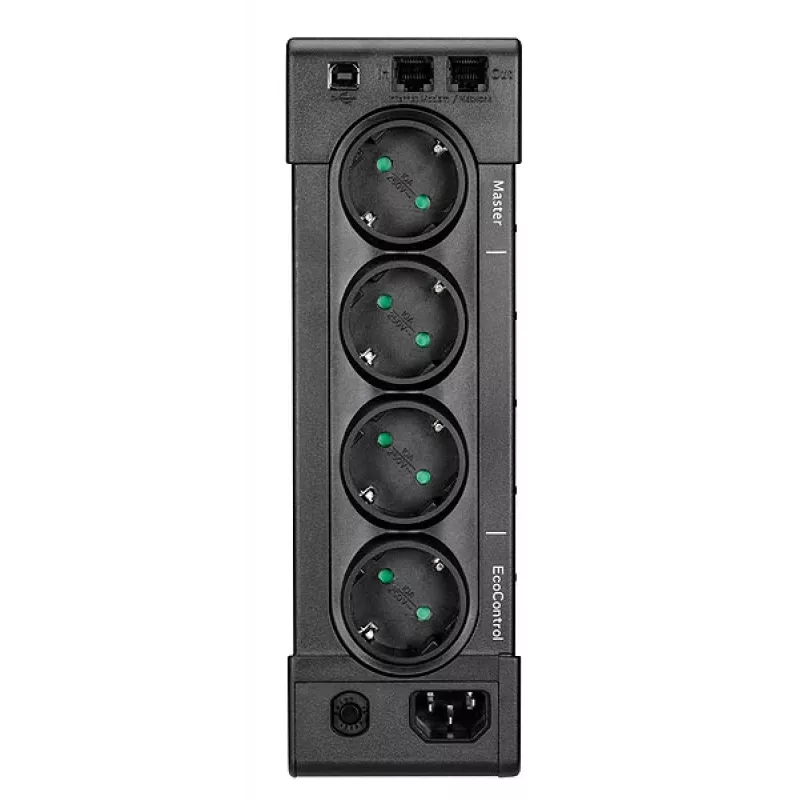

• Outlets: 4 x Type F AC outlets
• Ports: 1 x USB 2.0
• Battery type: Sealed lead-acid
• Typical backup time: ~9 minutes at half load
• Form factor: Tower / 2U rack compatible
• Weight: 6.6 kg
• Colour: Black

How to use

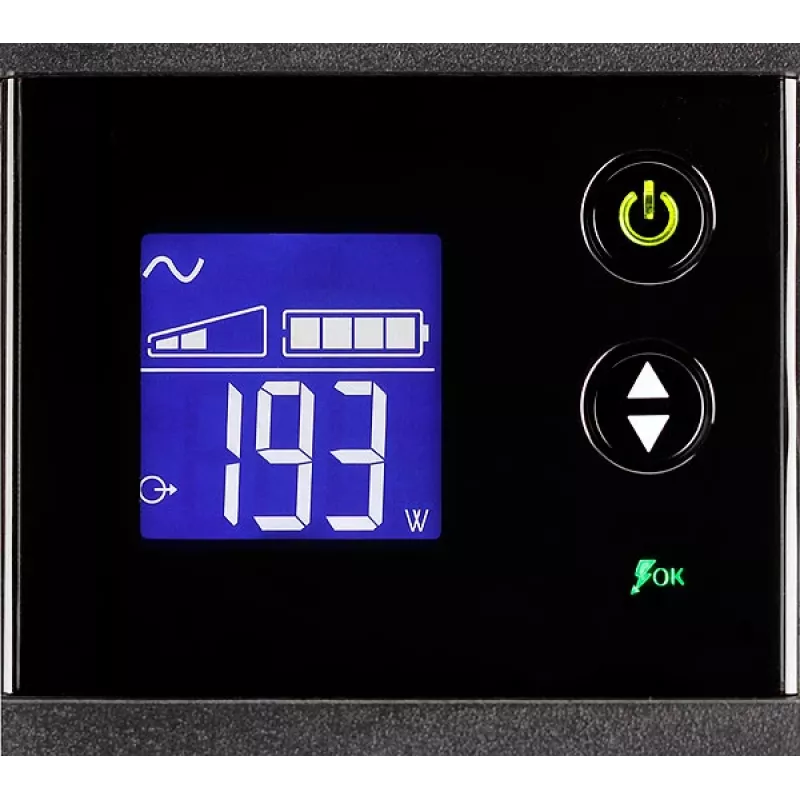

Place the UPS in a ventilated, dry location and connect your computer and peripherals to the AC outlets. Use the C14 power plug to connect the UPS to mains supply. The LCD display provides live information about input/output voltage, battery status and load. Install Eaton UPS Companion via the USB connection to enable automatic, safe shutdown of connected systems and to monitor energy usage and UPS settings.

Recommendations

For reliable backup and protection, ensure firmware/software updates through Eaton and test the UPS periodically. Do not exceed the rated output power (400 W) and allow proper ventilation around the unit. Replace the sealed lead-acid battery according to Eaton’s maintenance guidelines or when runtime becomes insufficient.
