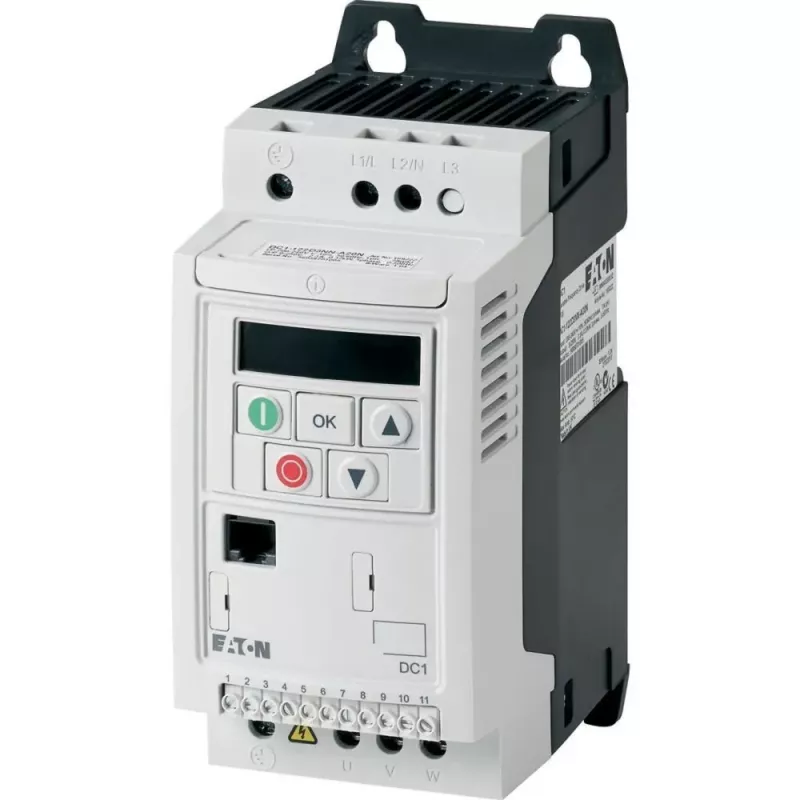

Eaton DC1-342D2FN-A20CE1 taajuusmuuttaja 0,75 kW 400 V 3-vaihe 2,2 A 185743

In many industrial and building-automation applications, motors running at fixed speed waste energy and cause unnecessary mechanical stress. The Eaton DC1-342D2FN-A20CE1 variable frequency drive solves this by providing precise speed control for three-phase motors, reducing energy consumption and extending equipment life.

Who is it for

This drive is intended for machine builders, panel builders, and facility engineers who need a compact, reliable speed control solution for pumps, fans, conveyors, and other three-phase motor applications up to 0.75 kW.

Main features

• Rated power: 0.75 kW with 2.2 A output current
• Input and output: 3-phase 400 V AC
• Output frequency range: 0–500 Hz
• Control methods: V/f and sensorless vector control
• Integrated EMC filter (C1) for reduced electromagnetic interference
• Modbus RTU (RS485) communication interface for integration into automation systems
• Compact IP20 enclosure suitable for wall or DIN rail mounting
• Overload capacity: 150% for 60 seconds
• Protection against overload, overvoltage, undervoltage, short circuit, and overheating

Specifications

• Product series: Eaton DC1
• Input voltage: 3-phase 400 V AC
• Output voltage: 3-phase 400 V AC
• Rated output current: 2.2 A
• Input frequency: 50/60 Hz
• Operating temperature: -10°C to +50°C
• Mounting: Wall or DIN rail

Tips

For optimal performance, ensure adequate ventilation around the drive and verify that the motor parameters are correctly set during commissioning. Use shielded cables for control wiring to maintain reliable Modbus communication.
