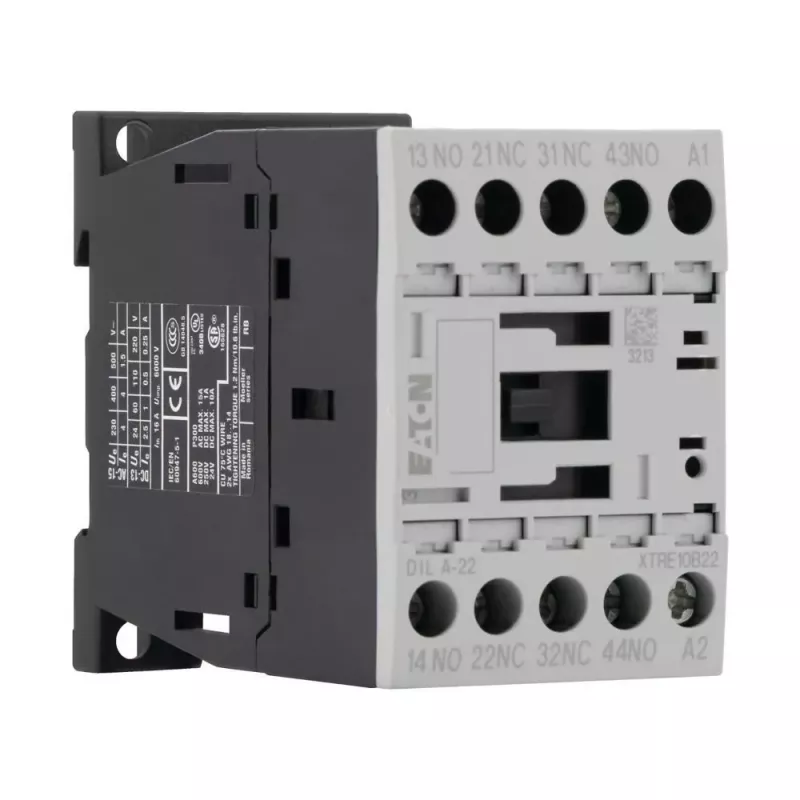

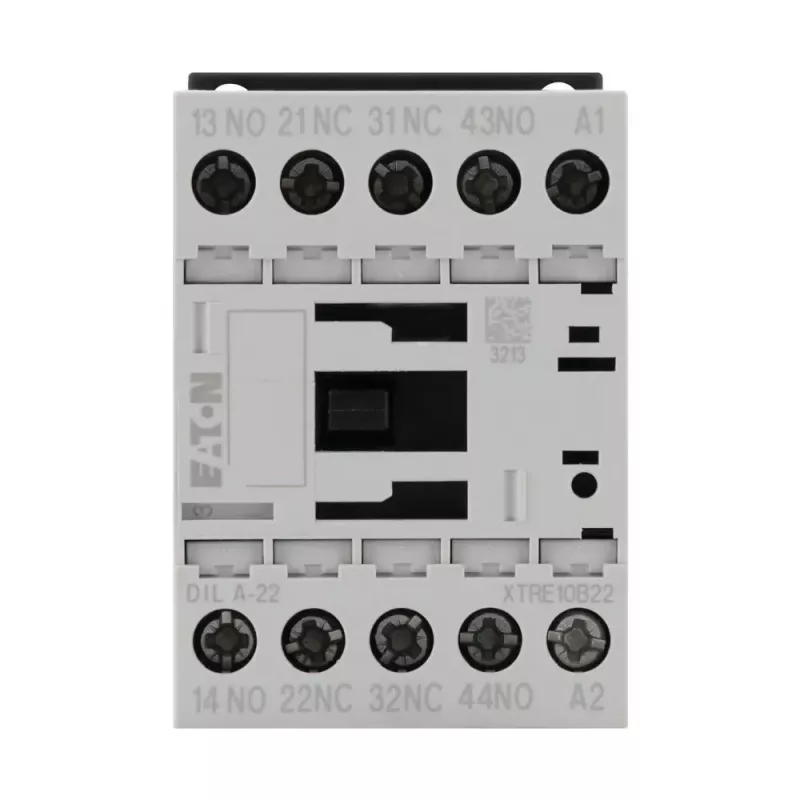

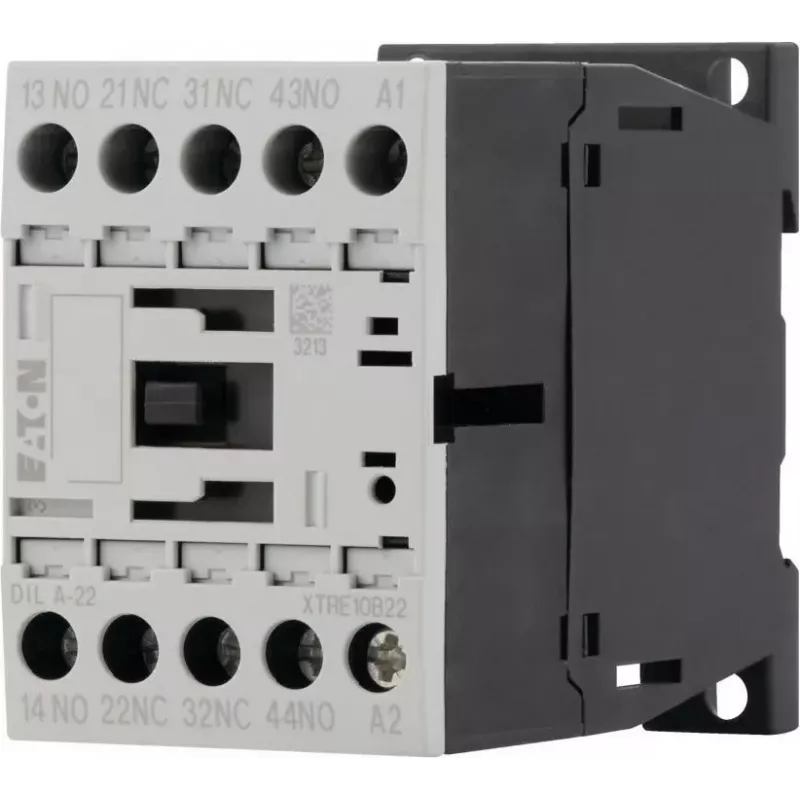

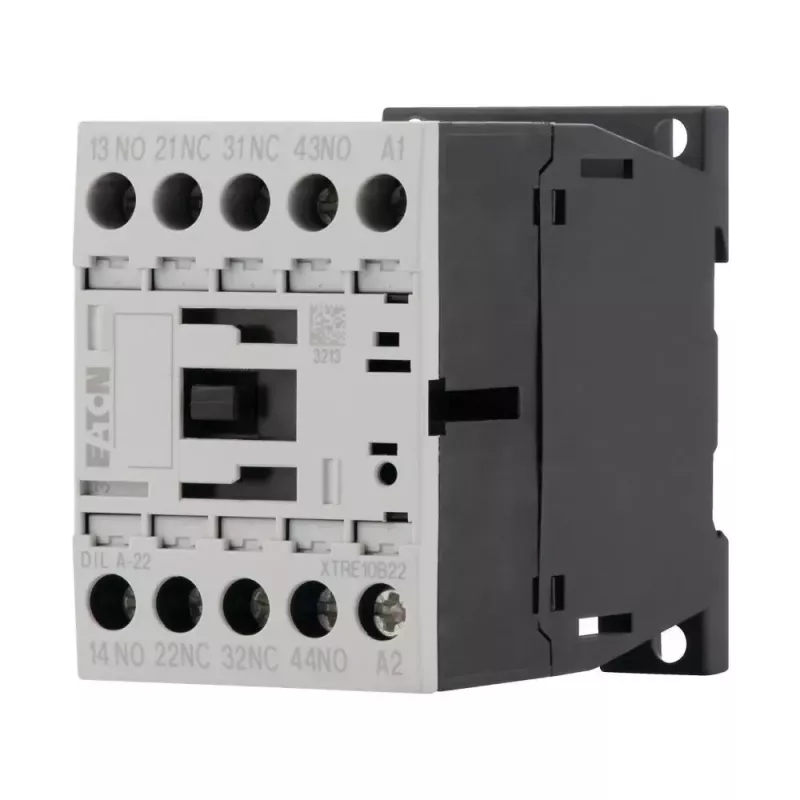

Eaton DILA-22 apukontaktori, 4-napainen, 2NO+2NC, 230V AC käämi 276407

Auxiliary contactor from the Eaton DILA series, engineered for reliable switching of control circuits. Its 4-pole configuration with 2 normally open and 2 normally closed contacts provides flexible control logic integration, while the 230V AC coil (50/60 Hz) ensures compatibility with standard industrial control voltages.

Advantages

Compact design for DIN rail or screw mounting, high mechanical and electrical endurance, and clear contact status indication. Suitable for use in motor starters, interlocking circuits, and signal amplification.

Suitable for

• Industrial control panels
• Motor control circuits
• Automation systems
• Building management systems

Key specifications

• Number of poles: 4
• Contacts: 2 NO + 2 NC
• Coil voltage: 230V AC, 50/60 Hz
• Rated operational current (AC-15, 230V): 4 A
• Rated insulation voltage: 690 V
• Mounting: DIN rail (35mm) or screw

Recommendations

For reliable auxiliary contact switching in demanding industrial environments, the Eaton DILA-22 offers proven performance and easy installation.
