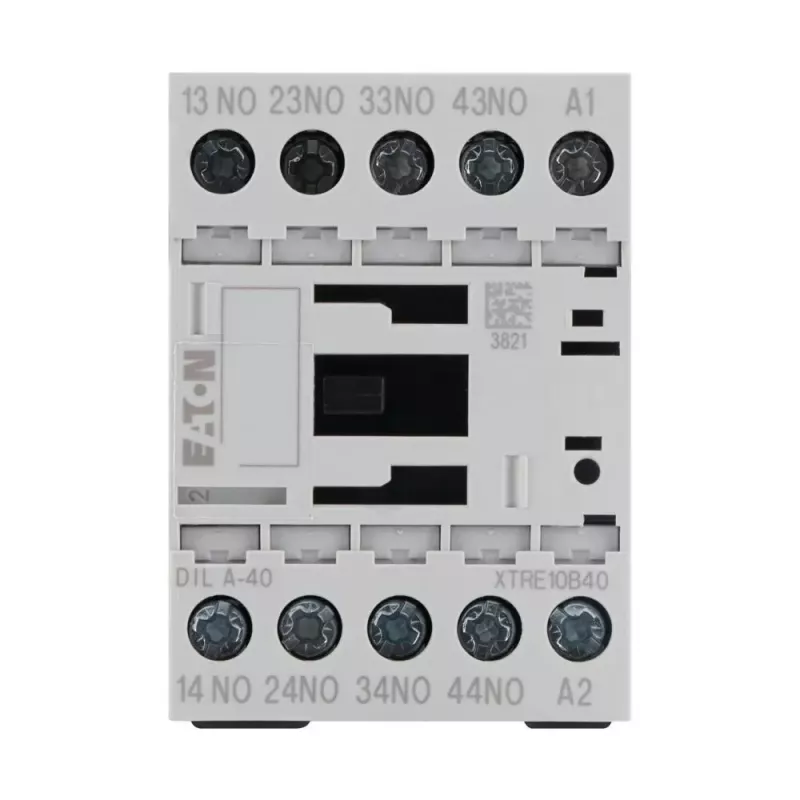

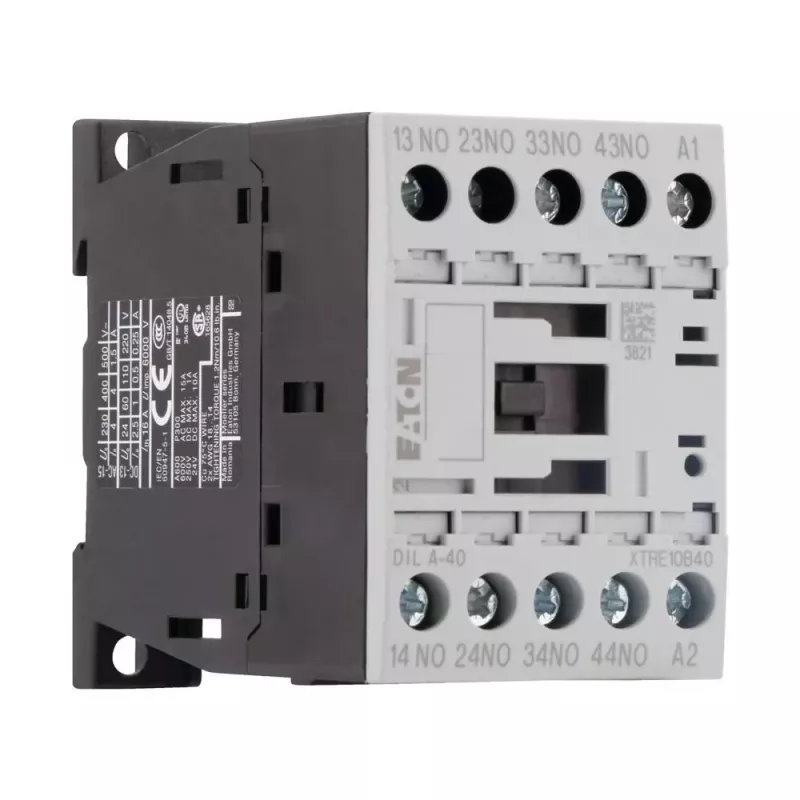

Eaton DILA-40 apukontaktori, 4 NO, 230 V AC käämi, ruuviliittimet

The Eaton DILA-40 auxiliary contactor provides reliable switching of control circuits with its 4 normally open contacts and 230 V AC coil. Its screw terminals ensure secure connections, and the compact design allows DIN rail or screw mounting for flexible installation.

Advantages

High mechanical durability of 10 million operations and electrical durability of 1.5 million operations at AC-15 ensure long service life. The contactor operates within a wide temperature range from -25 to +60 °C, making it suitable for various industrial environments.

Suitable for

• Switching auxiliary and control circuits in industrial automation
• Applications requiring reliable contact multiplication
• Installations with 230 V AC control voltage

Key specifications

• 4 normally open contacts
• Coil voltage: 230 V AC, 50/60 Hz
• Rated operational current: 4 A at AC-15, 230 V
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Terminal type: screw
• Mounting: DIN rail or screw
• Degree of protection: IP20
• Mechanical life: 10 million operations
• Electrical life: 1.5 million operations at AC-15
• Coil power consumption: 2.6 VA pull-in, 0.6 VA holding
• Short-circuit protection: 10 A gG/gL fuse

Recommendations

For optimal performance, use a 10 A gG/gL fuse for short-circuit protection and ensure the operating temperature remains within -25 to +60 °C.
