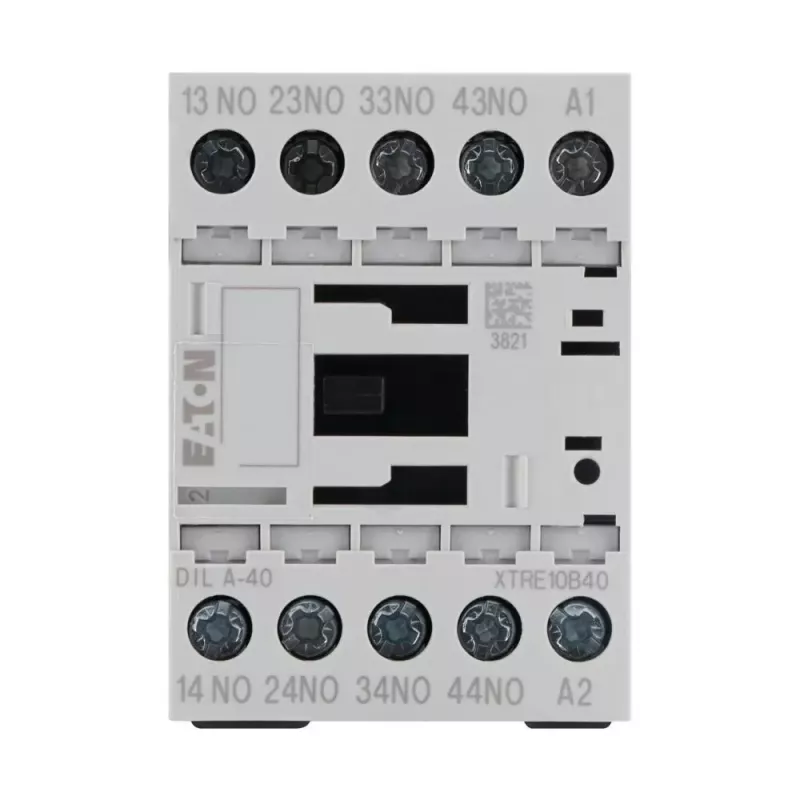

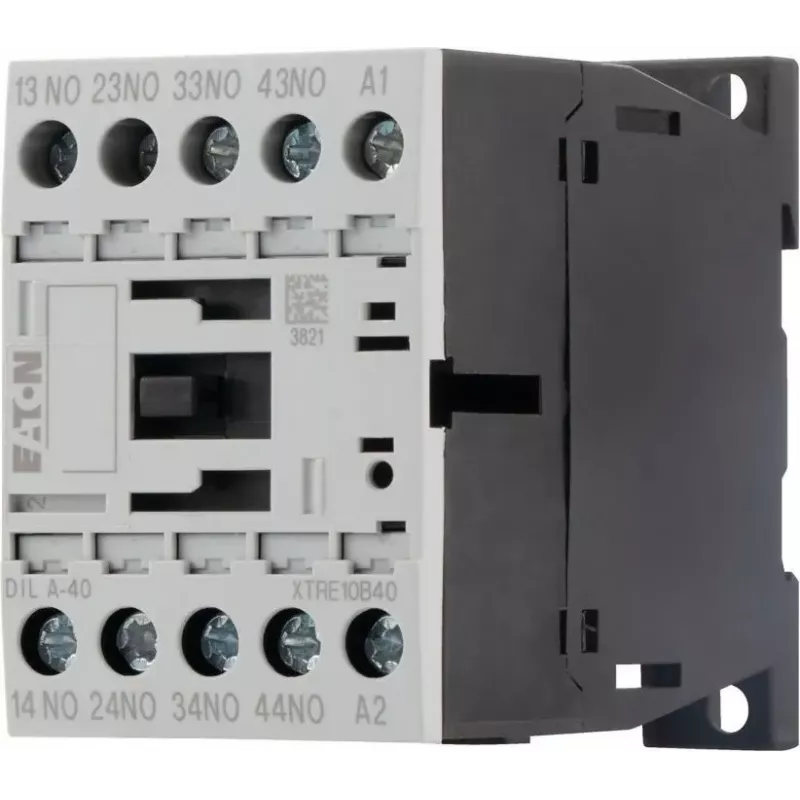

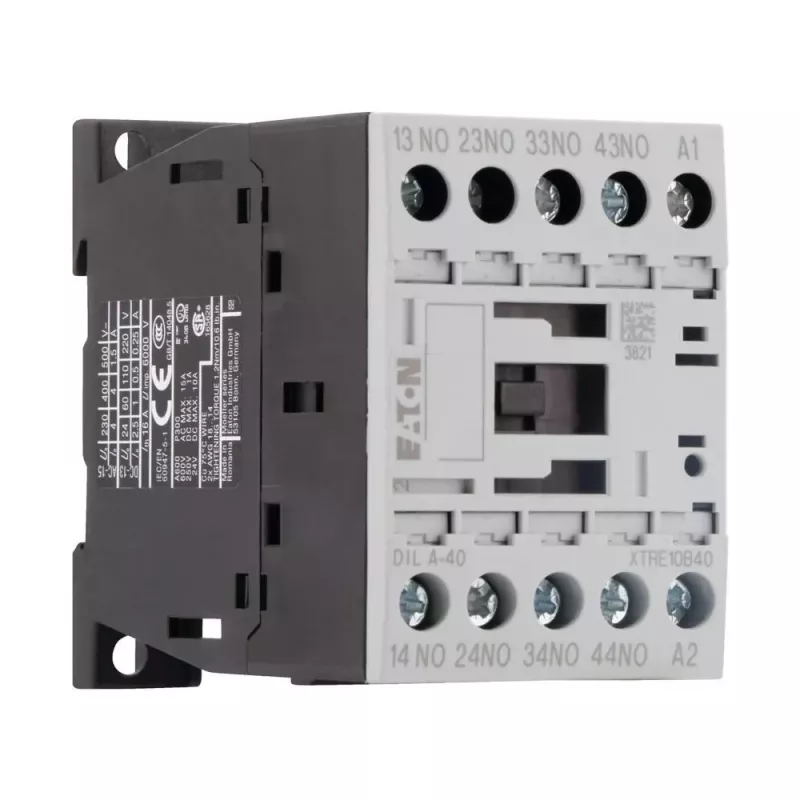

Eaton DILA-40 apukontaktori, 4 NO, 24 V AC käämi, 50 Hz 276316

In control circuits, reliable switching of auxiliary loads is critical to avoid downtime and ensure operational safety. The Eaton DILA-40 auxiliary contactor provides four normally open contacts, making it a dependable choice for expanding control functionality in industrial applications.

Who is it for

This contactor is intended for electrical engineers, panel builders, and maintenance technicians who need a compact and robust auxiliary contactor for control circuits up to 690 V AC. It is suitable for DIN rail or screw mounting in industrial control panels.

Main features

• 4 normally open (NO) contacts
• 24 V AC coil, 50 Hz
• Rated operational voltage up to 690 V AC
• Screw terminals for secure wiring
• Mechanical life of 10 million operations

Specifications

• Number of NO contacts: 4
• Number of NC contacts: 0
• Coil voltage: 24 V AC
• Coil frequency: 50 Hz
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 4 A
• Mounting: DIN rail / screw mounting
• Terminal type: Screw terminals
• Degree of protection: IP20
• Ambient operating temperature: -25 to +60 °C
• Mechanical life: 10 million operations
• Electrical life (AC-15, 230 V, 4 A): 1.3 million operations

Tips

Ensure the coil voltage matches your control circuit. For DIN rail mounting, use a suitable end stop to prevent sliding. Observe the ambient temperature range for reliable operation.
