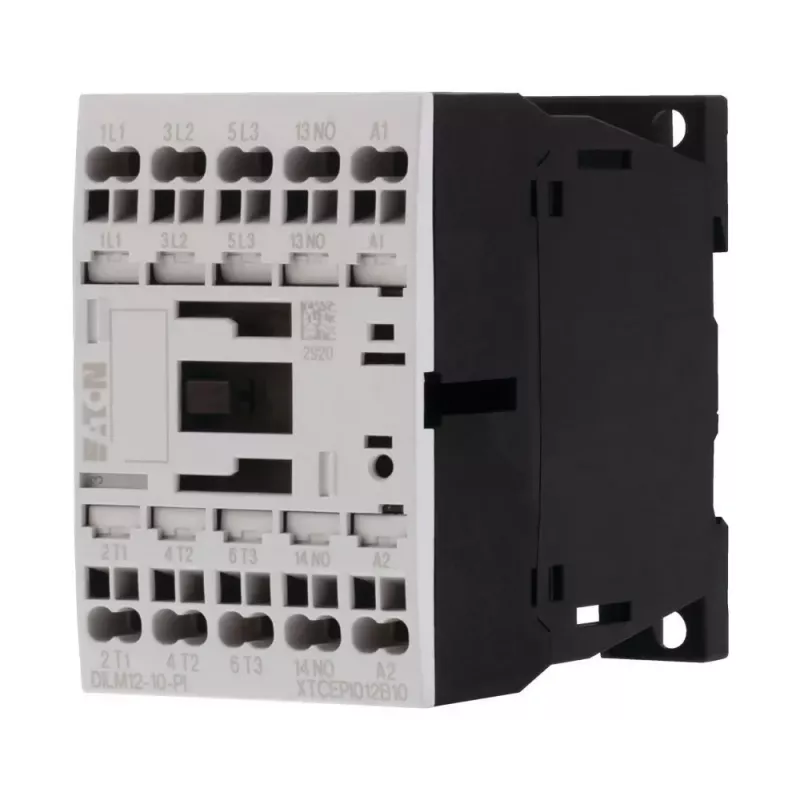

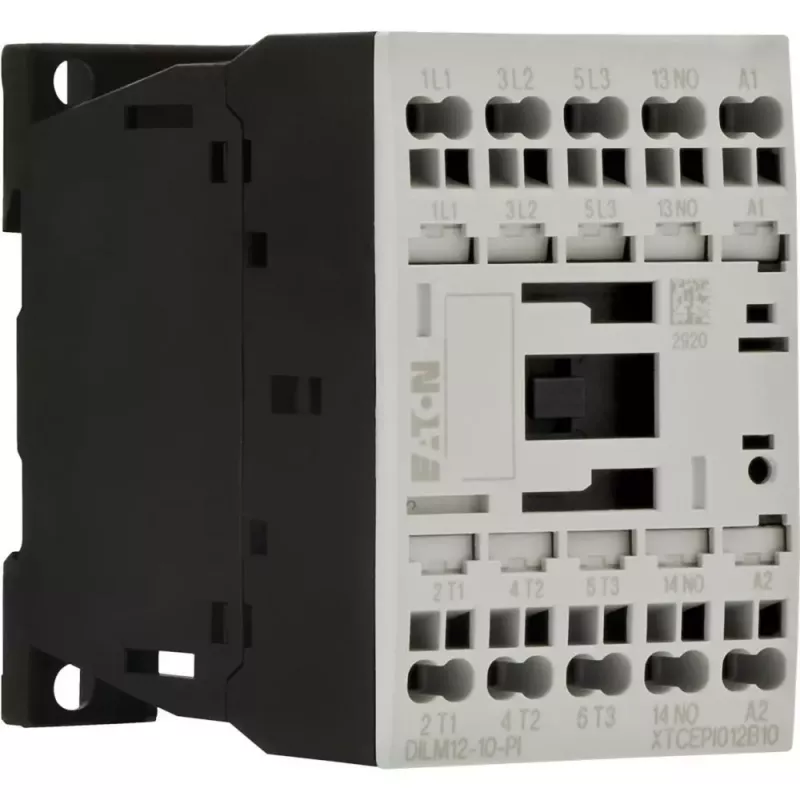

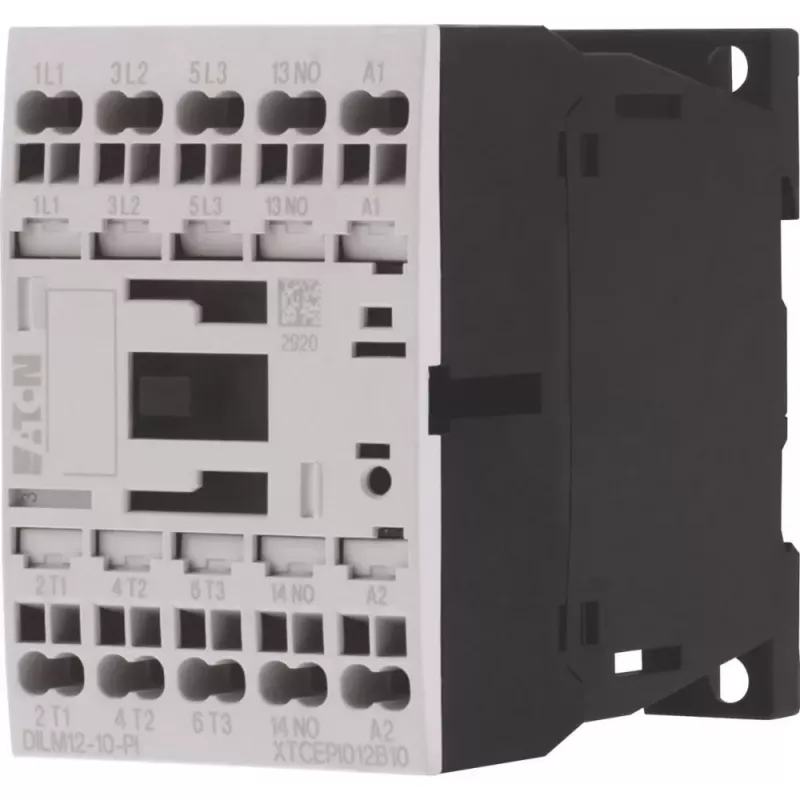

Eaton DILM12-10 kontakti, 3-napainen, 12 A, 24 V AC kela 199243

Three-pole contactor with 3 normally open main contacts and 1 normally open auxiliary contact, rated for 12 A at 400 V AC-3. The 24 V AC coil enables reliable switching of motors up to 5.5 kW.

Advantages

Compact DILM12 frame with screw terminals and DIN rail or screw mounting. High mechanical durability of 10 million operations and electrical durability of 1.5 million operations at AC-3.

Suitable for

• Motor control in industrial machinery
• Heating and lighting loads up to 22 A AC-1
• Control circuits requiring a 24 V AC coil

Key specifications

• Number of poles: 3
• Main contacts: 3 NO
• Auxiliary contacts: 1 NO
• Coil voltage: 24 V AC, 50/60 Hz
• Rated operational current (AC-3, 400 V): 12 A
• Rated operational power (AC-3, 400 V): 5.5 kW
• Rated operational current (AC-1, 400 V): 22 A
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Degree of protection: IP20
• Mounting: DIN rail or screw
• Terminal type: Screw terminals
• Standards: IEC/EN 60947, VDE 0660, UL, CSA

Recommendations

For reliable switching of three-phase loads up to 5.5 kW with a 24 V AC control signal, this contactor offers proven performance and easy installation.
