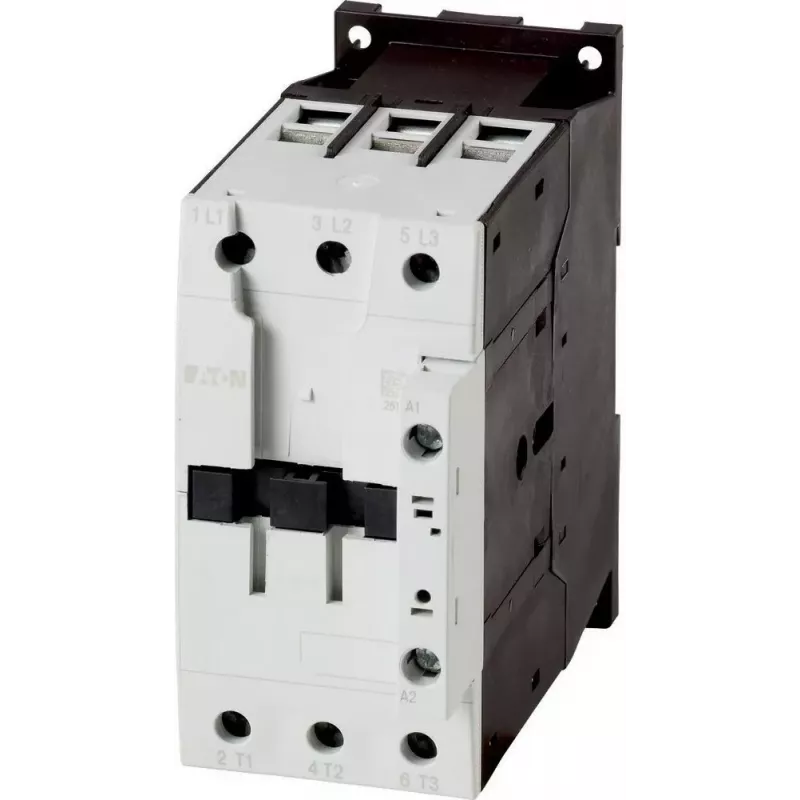

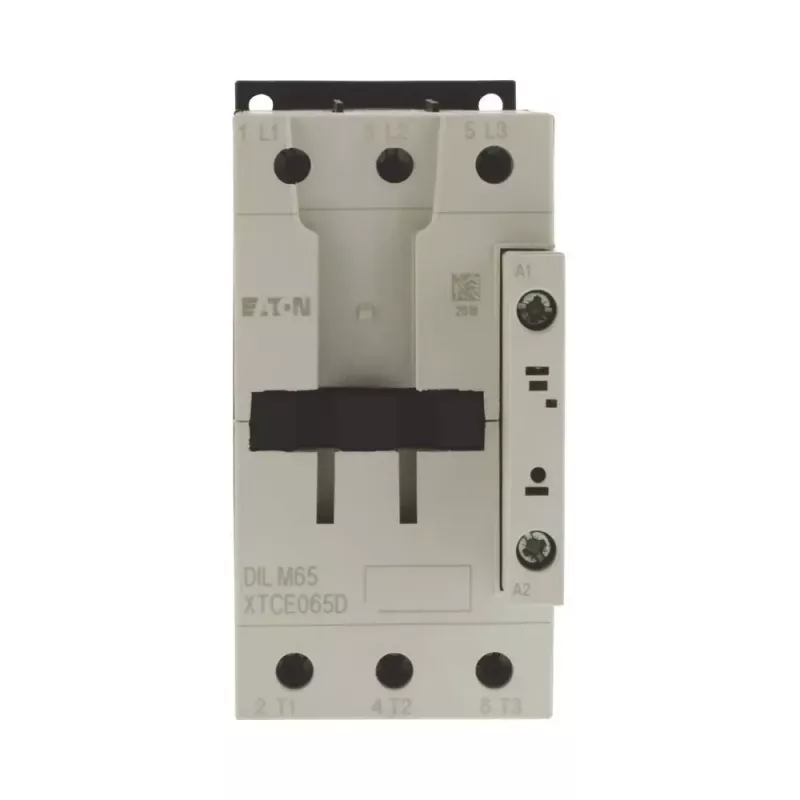

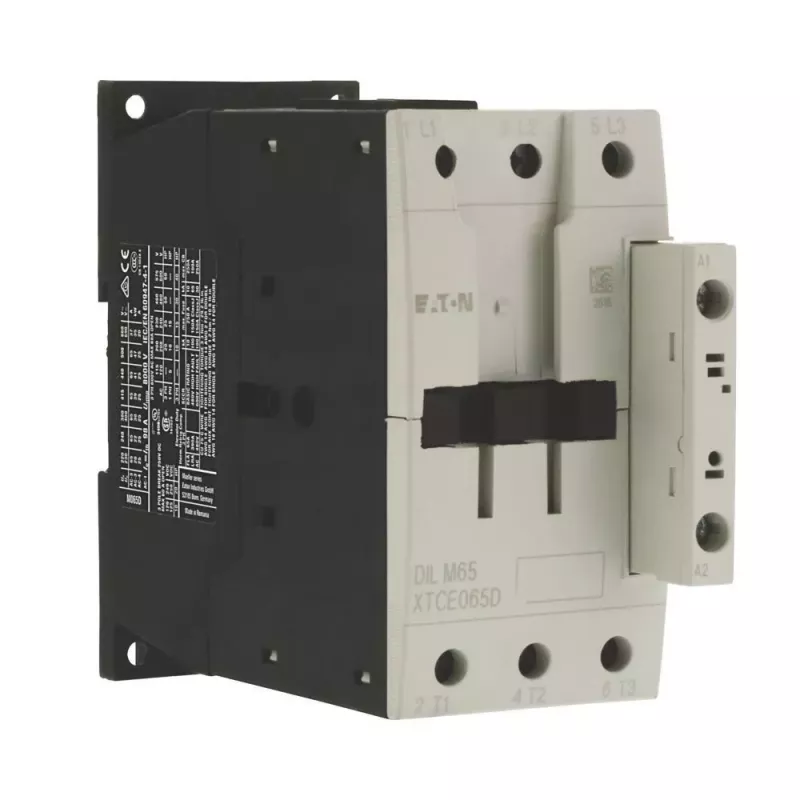

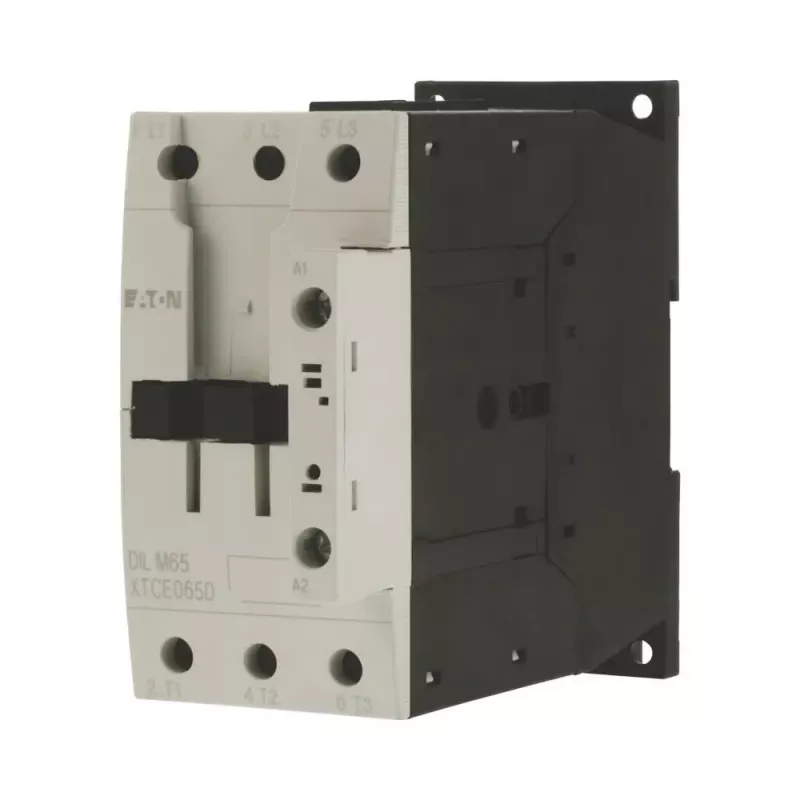

Eaton DILM65 tehonkontaktori 230V AC 65A 30kW 3-napainen 277902

The Eaton DILM65 power contactor delivers robust switching for three-phase AC motors up to 30 kW at 400 V. Its 65 A rated operational current and 230 V AC coil make it a dependable choice for industrial control systems.

Advantages

High mechanical durability of 10 million operations and electrical endurance of 1.5 million operations ensure long service life. The contactor supports both DIN rail and screw mounting for flexible installation. Screw terminals provide secure, vibration-resistant connections.

Suitable for

• Motor starting and stopping in industrial machinery
• Heating, ventilation, and air conditioning systems
• Pump and compressor control panels
• General switching of three-phase loads up to 65 A

Key specifications

• Rated operational current (AC-3, 400 V): 65 A
• Rated operational power (AC-3, 400 V): 30 kW
• Control voltage: 230 V AC, 50/60 Hz
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 8 kV
• Number of poles: 3
• Mounting: DIN rail or screw
• Terminal type: screw terminals
• Operating temperature: -25 to +60 °C
• Protection degree (front): IP20

Recommendations

For reliable motor control, pair the DILM65 with appropriate overload relays and auxiliary contact blocks. Ensure coil voltage matches the control circuit and verify short-circuit protection coordination per local regulations.
