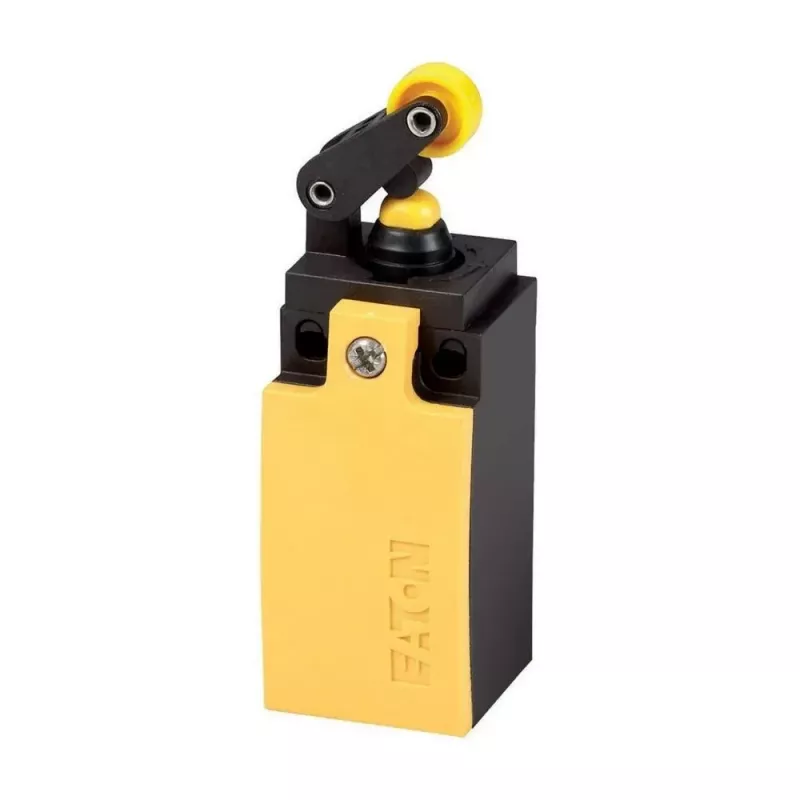

EATON LS-11/L rajakytkin, 1 NO + 1 NC, rullavipu, alumiinivalu 266110

The EATON LS-11/L position switch stands out with its die-cast aluminium housing and snap-action mechanism, delivering reliable signalling in demanding industrial environments. Its roller lever actuator is built for frequent mechanical operation, while the 1 NO + 1 NC contact configuration offers flexible circuit integration.

Highlights

• Snap-action switching principle for positive operation
• Die-cast aluminium housing for durability
• Roller lever actuator for mechanical position detection
• 1 normally open and 1 normally closed contact
• Screw terminal connection

In daily use

This basic device is suitable for a wide range of position monitoring tasks. The roller lever responds to cam or guide movements, and the snap-action contacts provide clean switching even at low actuation speeds. The M20 cable entry allows secure wiring in industrial installations.

Full specifications

• Contact configuration: 1 NO + 1 NC
• Actuator type: Roller lever
• Switching principle: Snap action
• Housing material: Die-cast aluminium
• Degree of protection: IP66 / IP67
• Rated operational current (AC-15): 6 A at 230 V AC
• Rated operational current (DC-13): 0.2 A at 250 V DC
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Cable entry: 1 x M20 x 1.5
• Connection type: Screw terminals
• Operating temperature range: -25°C to +70°C
• Mechanical life: > 10 million operations
• Electrical life: > 1 million operations
• Mounting position: Any

Final note

A robust position switch for industrial automation, offering dependable switching and long service life.
