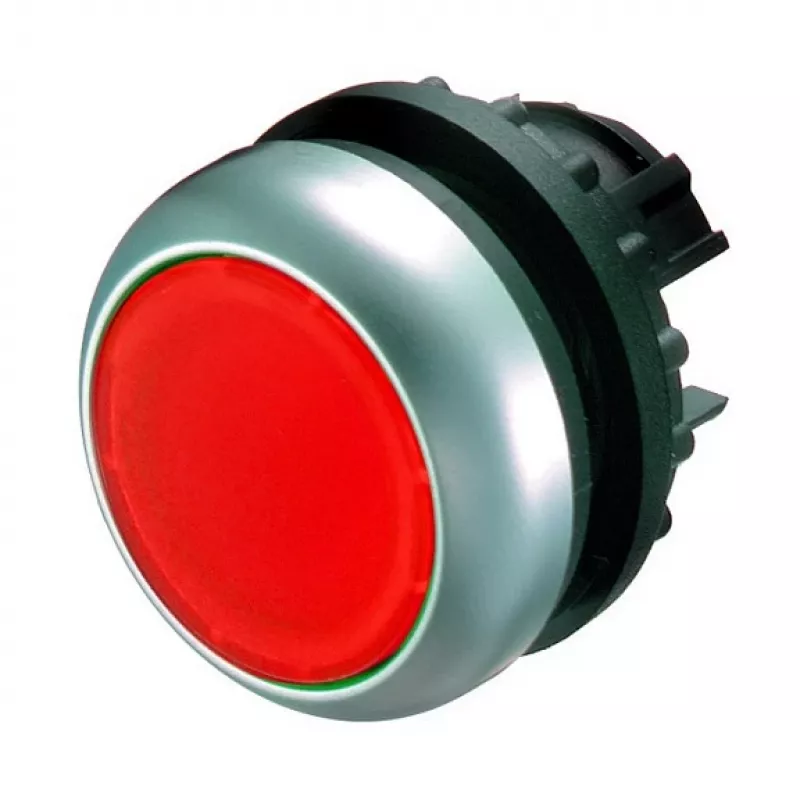

Eaton M22-DL-R valaistu painonappi, matala, punainen, hetkellinen, 22,5 mm

The Eaton M22-DL-R is a flat illuminated pushbutton actuator engineered for industrial control panels, delivering a crisp tactile response and high-visibility red indication. Its flush design prevents accidental operation while maintaining a clean front profile, and the momentary spring-return action ensures precise control for start, stop, or jog functions. The actuator is built for harsh environments with an IP69K front protection rating, making it suitable for washdown areas and outdoor installations.

Advantages

• Flat, flush design reduces accidental activation and simplifies panel cleaning.
• High-contrast red actuator with optional LED illumination for clear status indication.
• Rated IP66/IP67/IP69K from the front, ensuring reliable operation in wet and dusty conditions.
• Long mechanical life of over 5 million operations minimizes maintenance and downtime.
• Compatible with the full range of Eaton M22 contact blocks and LED elements for flexible configuration.

Suitable for

• Industrial machinery control panels requiring frequent start/stop commands.
• Food and beverage processing equipment subject to high-pressure washdowns.
• Outdoor control stations exposed to rain, dust, and temperature extremes.
• Conveyor systems, packaging machines, and material handling equipment.
• Any application demanding a robust, illuminated momentary pushbutton with 22.5 mm mounting.

Key specifications

• Product type: Pushbutton actuator, flat, momentary (spring return).
• Actuator colour: Red, with illumination support (LED element required, sold separately).
• Mounting diameter: 22.5 mm, suitable for standard industrial panel cutouts.
• Front protection: IP66, IP67, IP69K; NEMA 4X, 13.
• Operating temperature: -25 °C to +70 °C; storage temperature: -40 °C to +80 °C.
• Mechanical life: > 5,000,000 operations.
• Compliance: IEC/EN 60947, VDE, UL, CSA; RoHS compliant; CE, cULus approved.
• Bezel material: Plastic; mounting position: any.

Recommendations

For a complete pushbutton assembly, pair the M22-DL-R with an Eaton M22 contact block (e.g., M22-K10 for 1NO) and an LED element (e.g., M22-LED-R) matching your voltage. Ensure proper sealing and torque during installation to maintain IP ratings.
