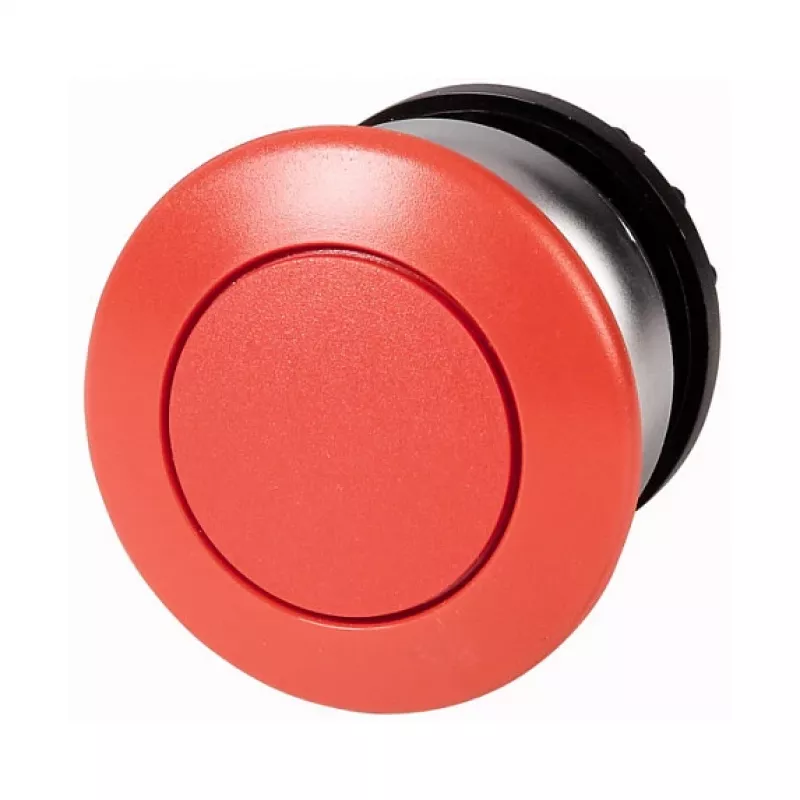

Eaton M22-DP-R painonappikäyttö, punainen, tasainen, hetkellinen, 22,5 mm

The Eaton M22-DP-R is a robust flush pushbutton actuator from the established M22 range. Engineered for momentary switching, it delivers reliable operation with a clear red actuator, making it an ideal choice for control circuits in demanding industrial settings.

Advantages

The M22-DP-R offers exceptional durability with a mechanical life exceeding 5 million operations. Its flush design reduces the risk of accidental activation while maintaining a sleek appearance. Thanks to its high-grade plastic construction and IP66/IP67/IP69K protection, it withstands dust, water jets, and harsh cleaning environments. Being non-illuminated, it requires no power source and operates purely mechanically, ensuring maintenance-free performance.

Suitable for

• Control panels and machinery
• Process automation and switching applications
• Emergency stop or reset functions requiring a distinctive red actuator
• Environments with high-pressure cleaning (IP69K) and outdoor use

Key specifications

• Product Type: Pushbutton Actuator
• Actuator Type: Flush
• Operation Type: Momentary (Non-latching)
• Actuator Colour: Red
• Mounting Diameter: 22.5 mm
• Protection Rating: IP66, IP67, IP69K
• NEMA Rating: 4X, 13
• Illumination: Non-illuminated
• Mechanical Life: > 5 million operations
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Standards: IEC/EN 60947, VDE 0660
• Approvals: UL, CSA, CCC, GL, DNV, LR, RINA, CE
• Compatibility: For use with M22 contact blocks (not included)
• Material (Actuator): High-grade plastic

Recommendations

Pair the M22-DP-R with the appropriate M22 contact block (sold separately) to complete your control unit. Always ensure the device is correctly installed with proper sealing to maintain its high ingress protection rating. For additional versatility, the M22 series offers a wide range of complementary components.
