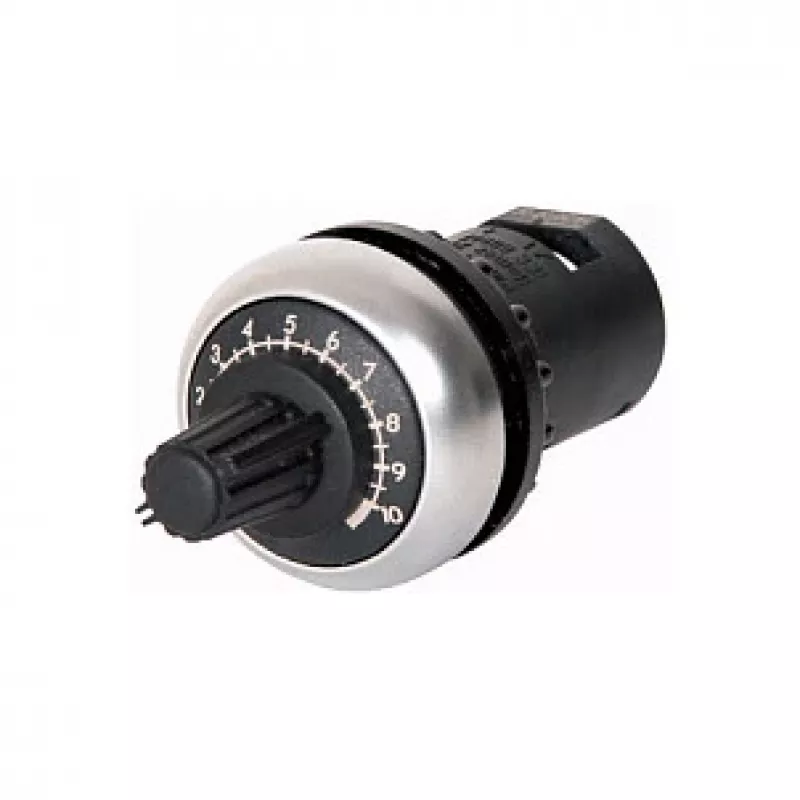

EATON M22-R4K7 potentiometri 4,7 kOhm etuasennus RMQ-Titan-sarja

The EATON M22-R4K7 sets itself apart from generic panel-mount potentiometers by combining a robust front-mounting design with IP66 protection on the front face. Built for 22.5 mm panel cutouts, this rotary potentiometer delivers precise manual adjustment in industrial control circuits. Its linear taper and 4.7 kOhm resistance ensure predictable, repeatable settings for speed, position, or parameter tuning, even in harsh environments.

Highlights

• Resistance: 4.7 kOhm ±10% tolerance
• Power rating: 0.5 W
• Panel cutout diameter: 22.5 mm
• Front degree of protection: IP66
• Mechanical rotation angle: 270°
• Connection: screw terminals (3 terminals)
• Electrical taper: linear
• Mechanical life: >100,000 operations
• Operating temperature: -25°C to +70°C
• Compliance: RoHS, CE

In daily use

Installation is straightforward: insert the potentiometer from the front of the panel and secure it with the included nut. The screw terminals accept solid or stranded wires, and the actuator shaft is ready for a standard knob (not included). With a 270° rotation, you get fine control over a wide range. The high-grade plastic housing resists impact and chemicals, while the IP66 front seal keeps out dust and water jets. The terminals are IP20, so they should be enclosed in a suitable enclosure.

Full specifications

• Brand: EATON
• Model: M22-R4K7
• MPN: 229490
• EAN: 4015082294908
• Series: RMQ-Titan (M22)
• Resistance: 4.7 kOhm
• Tolerance: ±10%
• Power rating: 0.5 W
• Mounting type: front mounting
• Panel cutout diameter: 22.5 mm
• Actuator type: rotary (knob not included)
• Connection type: screw terminals
• Number of terminals: 3
• Electrical taper: linear
• Mechanical rotation angle: 270°
• Mechanical life expectancy: >100,000 operations
• Operating temperature range: -25°C to +70°C
• Degree of protection (front): IP66
• Degree of protection (terminals): IP20
• Dielectric strength: 2500 V AC
• Housing material: high-grade plastic
• Compliance: RoHS, CE

Final note

For reliable, precise manual adjustment in industrial panels, the EATON M22-R4K7 is a durable choice that meets stringent protection standards.
