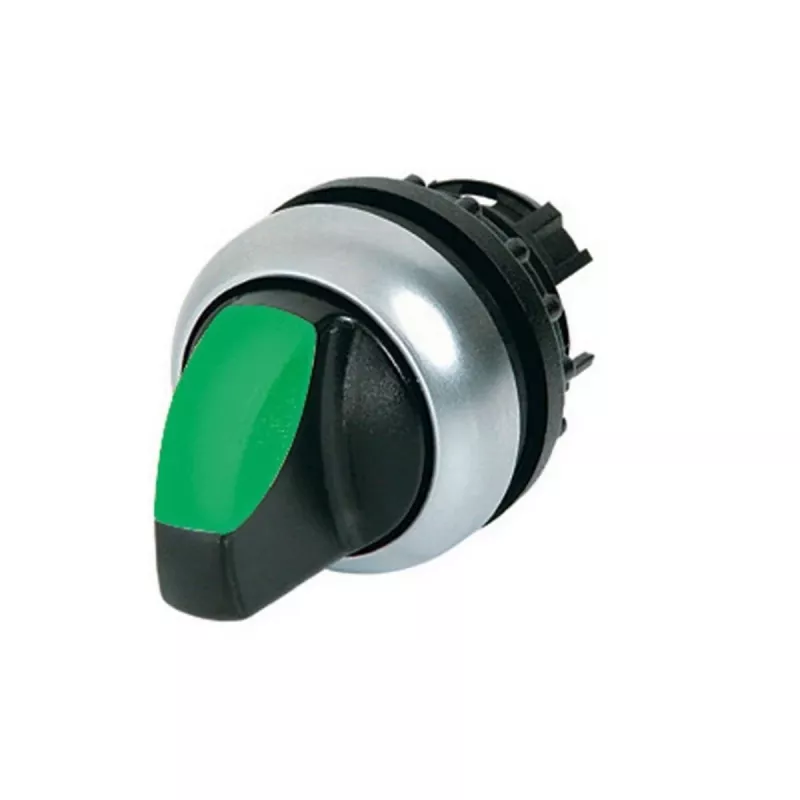

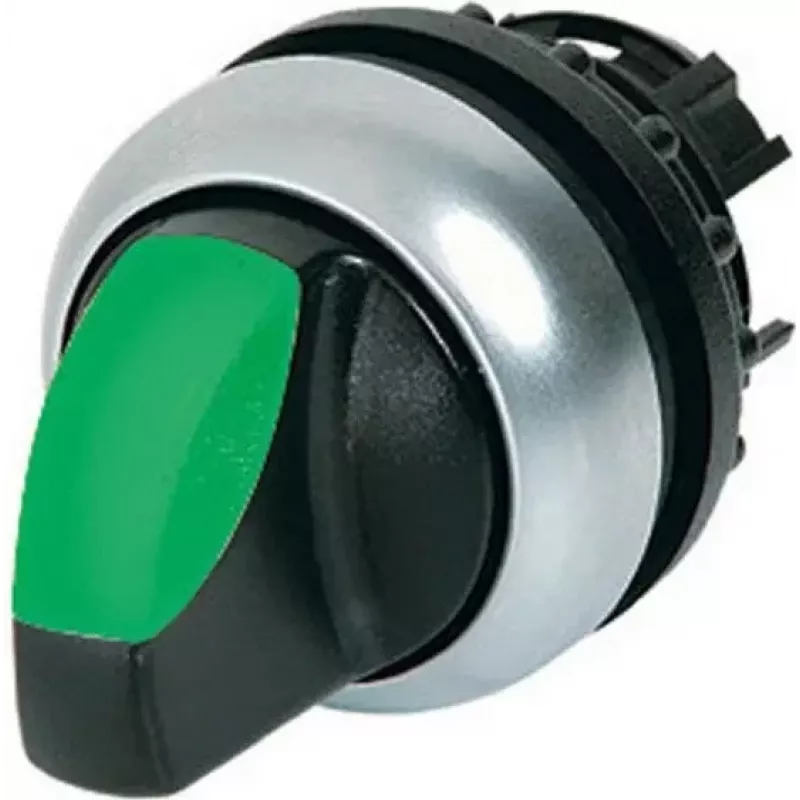

Eaton M22-WLK-G avainkytkin, 2 asentoa, lukittuva, musta/hopea 216816

Key-operated selector switch from the Eaton M22 series, designed for secure control of industrial circuits. The switch offers two positions with a maintained (latching) operation and a 90° switching angle, ensuring reliable state retention. The key can only be removed in position 0, preventing unauthorized changes. The front bezel is made of titanium-colored metal, with a black actuator and silver key.

Advantages

Robust construction with front protection ratings up to IP69K, suitable for harsh environments. Compatible with Eaton M22 contact blocks and LED elements for flexible configuration. Mechanical life exceeds 100,000 operations, ensuring long-term durability.

Suitable for

• Industrial control panels
• Machine tools
• Access control systems
• Process automation

Key specifications

• Series: M22
• Number of positions: 2
• Switching angle: 90°
• Operation type: Maintained (latching)
• Key removal position: Position 0
• Mounting diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• Bezel material: Titanium-colored metal
• Actuator color: Black
• Key color: Silver
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 0.1 million operations

Recommendations

For secure and reliable switching in industrial environments, pair this selector switch with Eaton M22 contact blocks and LED indicators to create a complete control solution.
