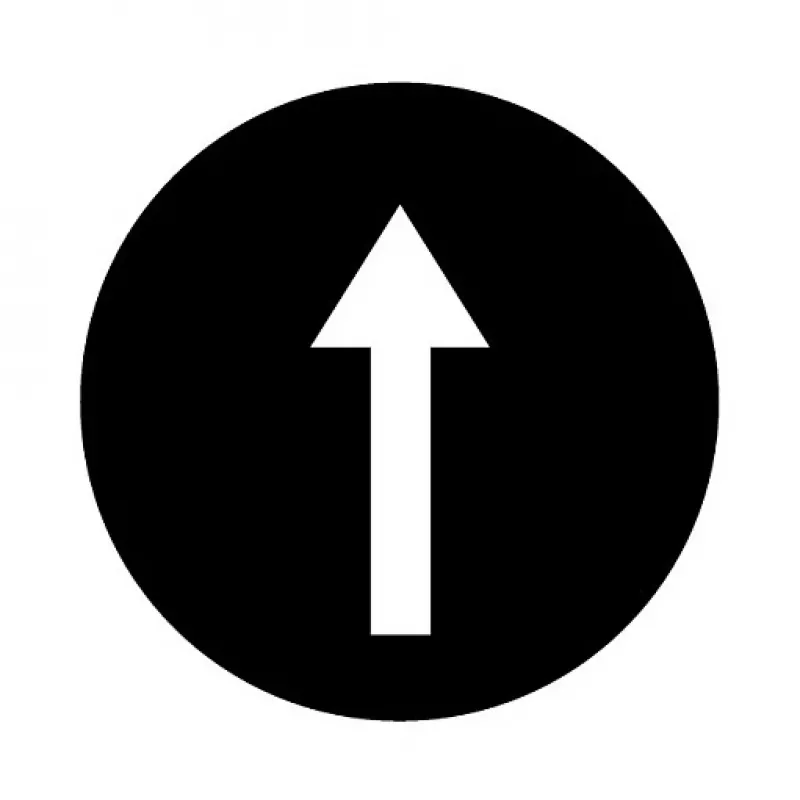

Eaton M22-XD-S-X7 musta litteä käyttölevy suuntanuolilla, 4-suuntainen, 22,5 mm

Engineered for precision control in demanding industrial environments, the Eaton M22-XD-S-X7 actuator plate delivers reliable 4-way directional switching with a sleek black flat design. Featuring a 22.5 mm mounting diameter and high-grade thermoplastic construction, this plate is built to withstand harsh conditions while maintaining a professional appearance. Its IP66 front protection rating ensures resistance to dust and water ingress, making it suitable for use in control panels, machinery, and automation systems.

Overview

The Eaton Moeller M22 series is renowned for its modularity and durability. The M22-XD-S-X7 is a control plate designed for joystick or selector switch actuators, providing intuitive directional control with clearly marked arrows (up, down, left, right). The flat design integrates seamlessly into panel layouts, offering a modern aesthetic without compromising functionality. With an operating temperature range of -25 to +70 °C, it performs reliably in extreme conditions.

What stands out

• 4-way directional control with arrow symbols for intuitive operation.
• Robust thermoplastic construction with IP66 front protection.
• Wide operating temperature range (-25 to +70 °C) for versatile use.
• Compact 29.7 x 29.7 mm front dimensions for space-efficient panel design.
• Compliant with IEC/EN 60947 and VDE 0660 standards, RoHS and REACH certified.

Technical details

• Product type: Control plate / actuator plate
• Series: Eaton Moeller M22
• Actuator compatibility: Joystick / selector switch
• Number of directions: 4
• Color: Black
• Design: Flat
• Mounting diameter: 22.5 mm
• Material: High-grade thermoplastic
• Protection degree (front): IP66 (when correctly mounted)
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Standards: IEC/EN 60947, VDE 0660
• RoHS compliant: Yes
• REACH compliant: Yes
• Application: Industrial automation, control panels, machinery
• Front dimensions (W x H): 29.7 x 29.7 mm

Our verdict

The Eaton M22-XD-S-X7 is a top-tier choice for industrial control applications requiring reliable 4-way switching. Its rugged build, clear directional markings, and compliance with stringent standards make it a dependable component for any automation project.
