Eaton sähkökeskuksen liitäntäsarja ZSD-SK/VB/SZ xEnergy-sähkökeskuksille 228984

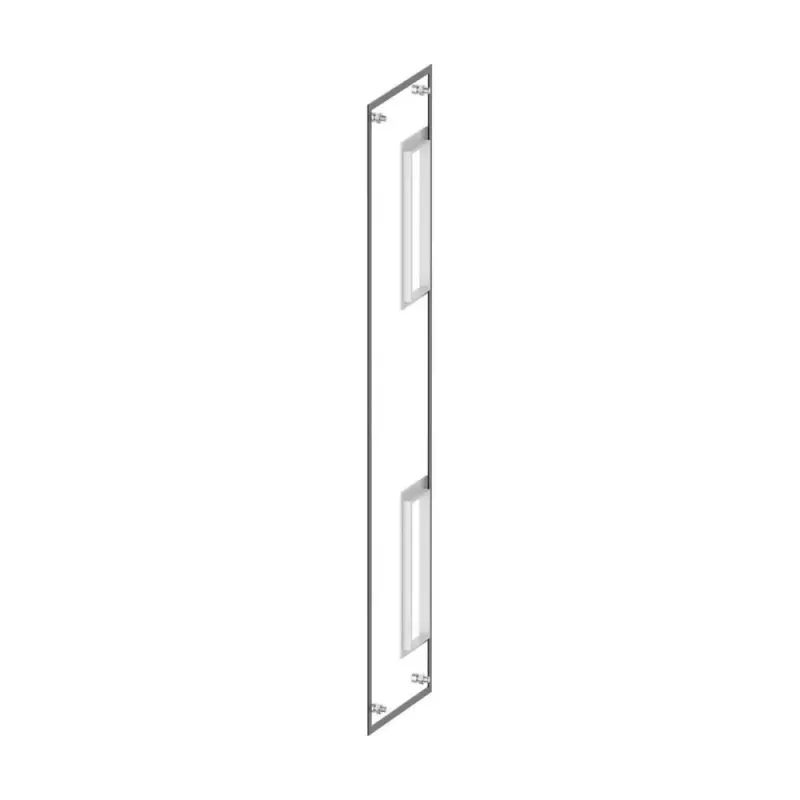

Connect adjacent floor-standing cabinets in Eaton xEnergy Main, Light, or Basic series with this galvanized steel coupling kit. The kit provides mechanical and electrical connection via bolted installation, ensuring a rigid and conductive bond between two cabinets. Designed as an internal mounting accessory for switchgear and controlgear assemblies, it integrates seamlessly into the xEnergy modular system. Components include connection plates and fastening hardware (screws, nuts, washers).

Overview

The Eaton Cabinet Coupling Kit ZSD-SK/VB/SZ is a side-by-side connection solution for xEnergy series floor-standing cabinets. Manufactured from steel with a galvanized surface finish, it offers durability and corrosion resistance. The kit is installed internally, bolted to the cabinet structure, and is intended for use with systems designed to IEC 61439. It connects two cabinets per kit.

What stands out

• Mechanical and electrical connection of adjacent cabinets
• Galvanized steel construction for long-term reliability
• Bolted installation for secure and precise alignment
• Compatible with Eaton xEnergy Main, Light, and Basic series
• Complete kit with connection plates and fastening hardware

Technical details

• Product type: Cabinet Coupling Kit
• Connection orientation: Side-by-side
• Compatible cabinet series: Eaton xEnergy Main, xEnergy Light, xEnergy Basic
• Cabinet type compatibility: Floor-standing cabinets
• Material: Steel
• Surface finish: Galvanized
• Function: Mechanical and electrical connection of adjacent cabinets
• Installation method: Bolted
• Application: For switchgear and controlgear assemblies
• System integration: xEnergy modular system accessory
• Components included: Connection plates, fastening hardware (screws, nuts, washers)
• Number of cabinets connected: 2 (per kit)
• Standard compliance: Designed for use with IEC 61439 compliant systems
• Mounting position: Internal to cabinet structure

Our verdict

A reliable and essential accessory for expanding Eaton xEnergy cabinet systems, providing both structural and electrical continuity with straightforward bolted installation.
