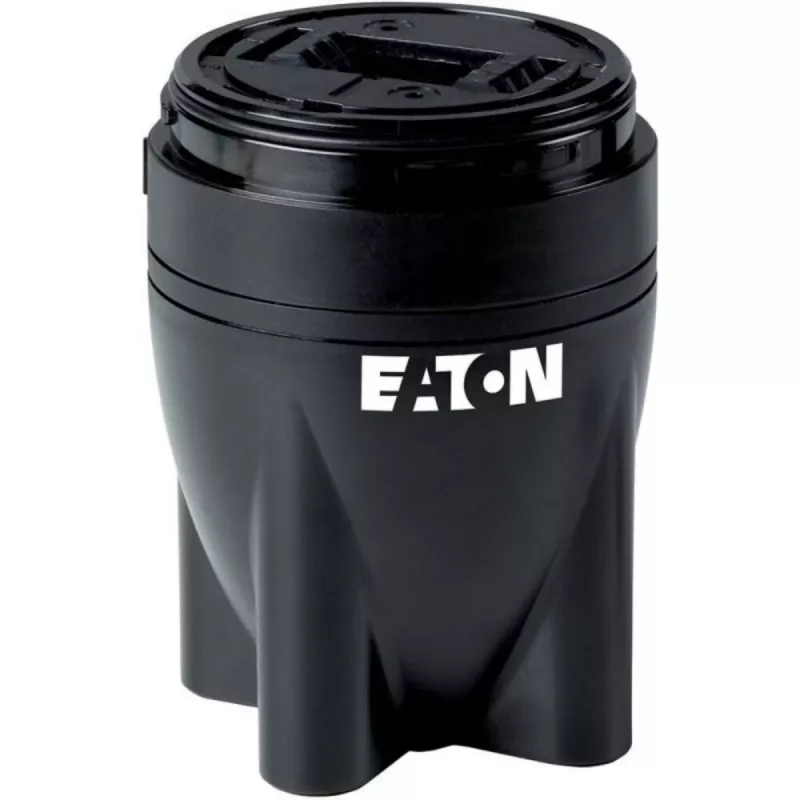

Eaton SL7-CB-IMS musta kotelo ohjausasemalle, IP66, 250V, 73x102x67mm, tyhjä 171448

The Eaton SL7-CB-IMS stands out as a compact, surface-mount control station enclosure with a single command point, ready for user-configured components. Its black thermoplastic body delivers double insulation and an IP66 protection rating, making it suitable for demanding industrial environments.

Highlights

• Empty enclosure for one command point, allowing customisation with your own switches or pushbuttons.
• Double-insulated thermoplastic construction for enhanced electrical safety.
• IP66 rating protects against dust and powerful water jets.
• Two M20/M25 knockouts provide flexible cable entry options.
• Certified to IEC/EN 60947-5-1, UL 508, CSA-C22.2 No. 14-10, and CSA-C22.2 No. 94-91, with CE marking.

In daily use

Mount the SL7-CB-IMS on a wall or machine surface, then populate it with a standard 22mm control device. The knockouts simplify wiring, and the robust thermoplastic housing withstands temperatures from -30°C to 60°C. Its compact footprint (73mm wide, 102mm high, 67mm deep) fits tight spaces without compromising accessibility.

Full specifications

• Product type: Control station enclosure
• Series: SL7
• Number of command points: 1
• Colour: Black
• Material: Thermoplastic
• Ingress protection: IP66
• Rated insulation voltage: 250 V
• Operating temperature: -30 to 60 °C
• Mounting type: Surface mounting
• Cable entries: 2x M20/M25 knockouts
• Insulation class: Double insulated
• NEMA rating equivalent: NEMA 4X, 12, 13
• Width: 73 mm
• Height: 102 mm
• Depth: 67 mm
• Standards: IEC/EN 60947-5-1, UL 508, CSA-C22.2 No. 14-10, CSA-C22.2 No. 94-91
• Certifications: CE marking

Final note

For engineers and panel builders, the SL7-CB-IMS offers a certified, ready-to-populate enclosure that simplifies control station assembly while ensuring compliance and durability.
